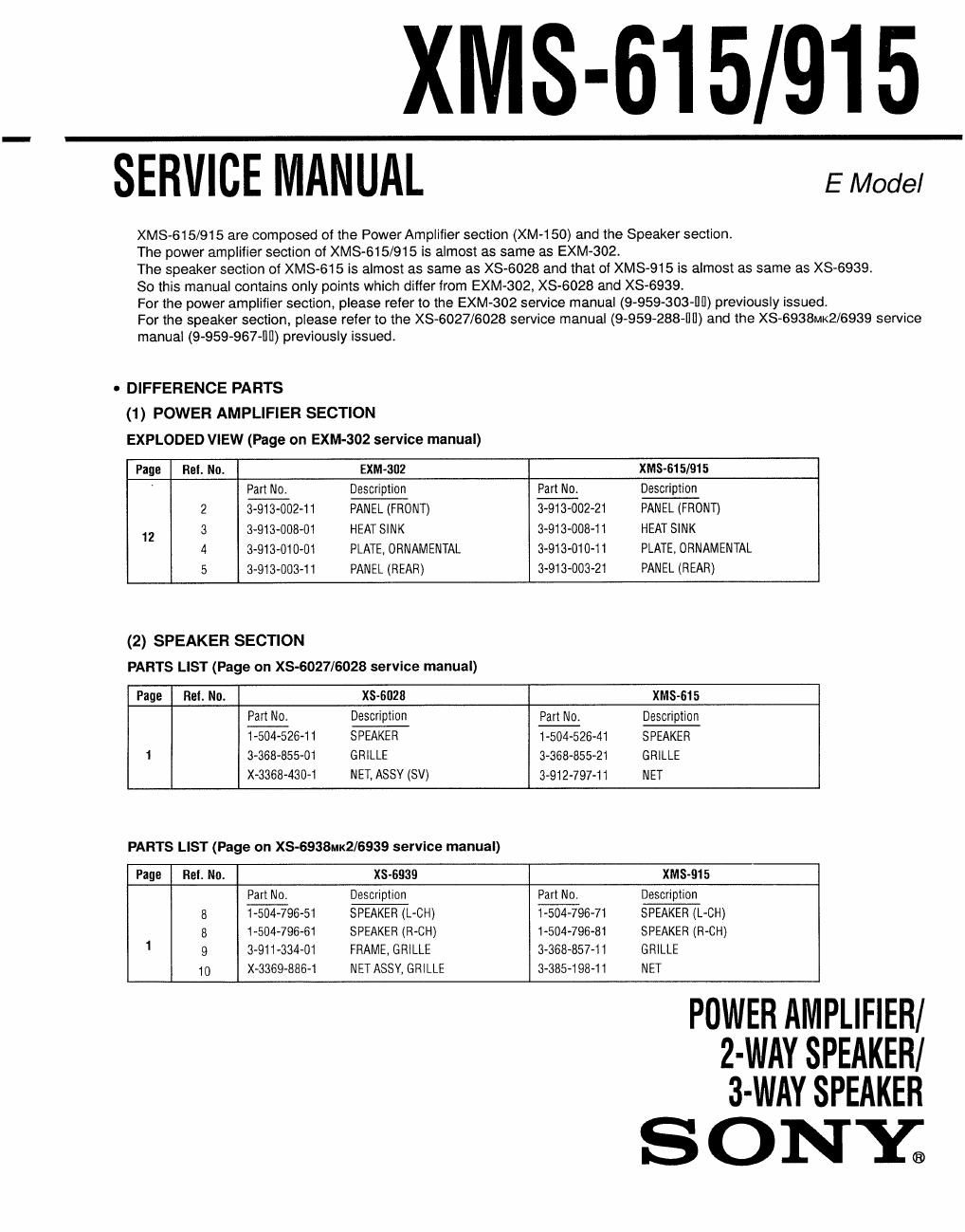

Sony xms 615 service manual

Page 2

0 ACCESSORIES & PACKING MATERIALS

Ref No. Part No. Description
51 1-557-656-11 CORD (WITH TERMINAL)
52 1~562-594-11 CONNECTOR (CL-1814T)
%= 53 1-575-05541 CORD (WITH TERMINAL) (BACK UP)
* 54 1~575-056-11 CORD (WITH TERMINAL) (G)
* 55 1-575-090-11 CORD (WITH TERMINAL) (REM)
56 3-367-410-11 SCREW (DIA. 5X15). TAPPING
F1 1-532-563-11 FUSE (20A)
3-706-714-00 GROMMET
3-810-476-11 MANUAL FITTING INSTRUCTION
(ENGLISH, FRENCH, SPANISH)
3-810-537-11 MANUAL, INSTRUCTION
(ENGLISH, FRENCH)
3-810-53721 MANUAL, INSTRUCTION
(SPANISH)
* 3-912-859-01 CUSHION, CORRUGATED FIBERBOARD
MOUNTING HARDWARE
101 3-911-409-01 PAPER PATTERN (XMS-615)
102 3-911-407-01 PAPER PATTERN (XMS-915)
103 1-574-318-31 CORD (WITH TERMINAL) (WHITE)
103 1-574-318-41 CORD (WITH TERMINAL) (GRAY)
104 7~685-666-79 SCREW
105 3-590-903-01 SPEED NUT
106 3~366-260-01 CEMENT ASSY (1 ), CONTACT
107 3-592-847-01 SCREW (+) (B4), SPECIAL (XMS-915)
108 4-304-749-00 NUT (M4), FLANGE (XMS~915)
109 3-368-13134-1 I SPACER

0 Items marked * are no! stocked since they
are seldom required for routine service.
Some delay should be anticipated when order-

ing these items.

9-923-444-1 1

51 52
{Ef_"""":
5 vM g
I ' , I
I /Q I
1
(£53 __________ J
53 54
55 56
101 102
103 104
105 106
107 108
109

x2

Sony Corporation
Mobile Electronics Company

_2_

Engllsh
95K050421 >1 D
Printed in Japan
© 1995. 11

Publlshed by Home A&V Products Div.

Quality Englineering Dept.
