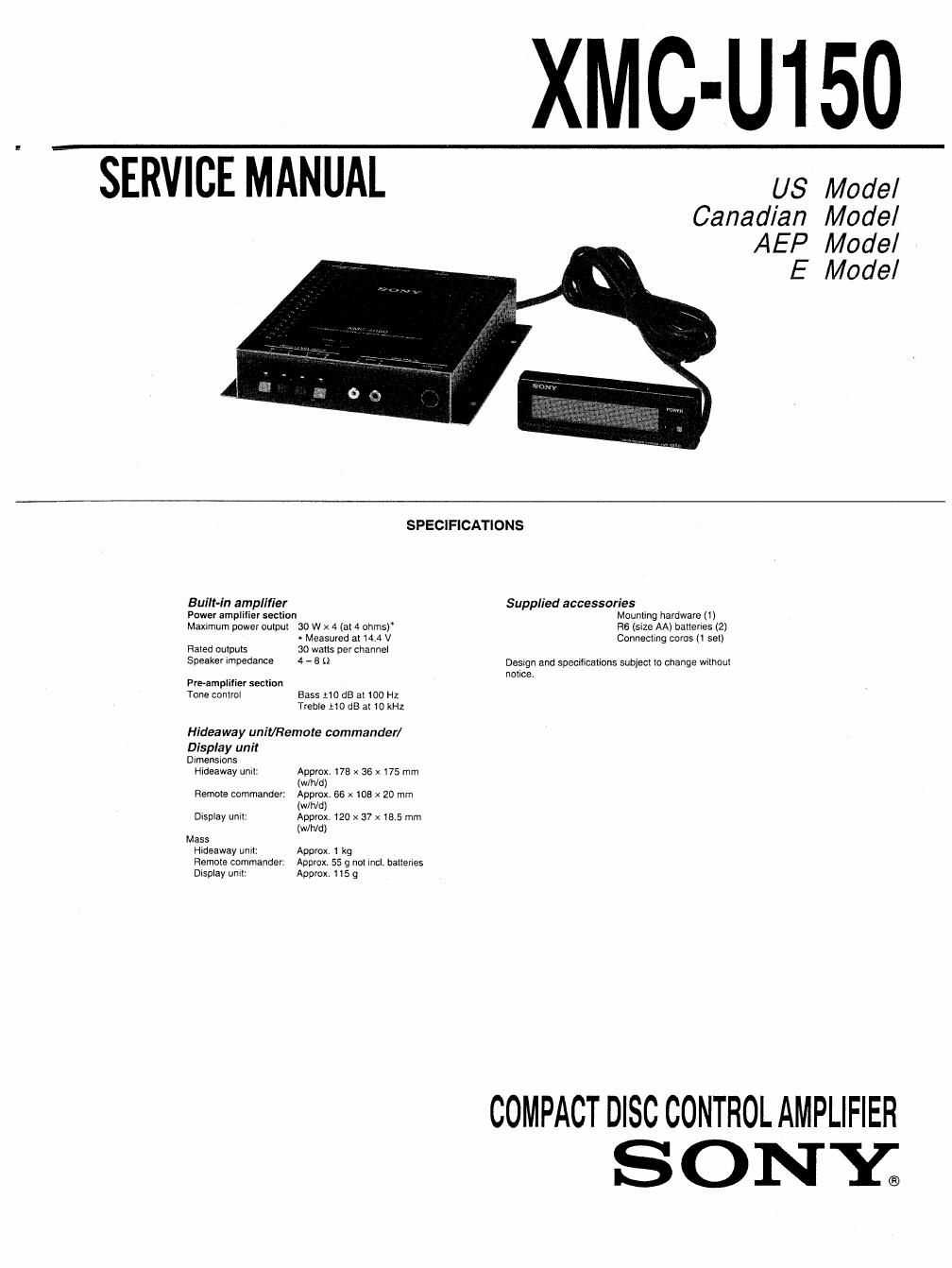

Page 1
SERVICE MANUAL
XMC-U150
US Model
Canadian Model
AEP Model
E Model
SPECIFICATIONS
Built-in amplifier Supplied accessories
Power amplifier section Mounting hardware (1)
Maximum power outpul 30 w x 4 (at 4 ohms) R6 (size AA) battenes {2)
* Measured al14.4 V
Flared outpuls 30 waus perchannel
Speaker impedance 4 - a s2
Pre-amplmer section
Tone conlrol Bass :10 dB at 100 HZ
Treble H0 (35 at 10 kHz
Hideaway unit/Remote commander/
Display unit
Dimensions
Hideaway uml: Approx 178 x 36 x 175 mm
(wlhld)
Remote commander: Approx. 66 x 103 x 20 mm
(win/d)
Display umr: Approx, 120 x 37 x18 5 mm
(w/hld)
Mass
Hideaway uml: Approx. 1 kg
Remote commander: Approx. 55 9 "0! incl. bananas
Display UH!!! Approx. 115 g
Connechng cords (1 561)
Design and specifications subject to change wuhoui
nonce.
COMPACT DISC CONTROL AMPLIFIER
SONY;
Page 2
Maintenance
Fuse Replacement
lithe Iuse blows, check the power connection
and replace the Iuse. II the fuse blows again
after replacement, there may be an internal
malfunction In this case. consult your nearest
Sony dealer.
Warning ,
Use the specified amperage fuse,
Use of a higher amperage fuse may cause
serious damage.
TABLE OF CONTENTS
Section Title Page
Specifications ............................................................... 1
1 . G EN ERAL
Location and Function of Controls-u
Switches Requiring Initial Settings v
Setting the Clock ----------
Listening to the CD Play ~
Playing in Vatious Modes "
Displaying the Title of Each Disc~
Playing Selected Tracks on a Disc
Listening to Your Existing Car Audio
Installation ------
Connections
2. EXPLANATION OF IC TERMINALS ----------------------- 15
3, BLOCK DIAGRAM ............................................... 17
4. DIAGRAMS
4-1. Printed Witing Boards --------------------------------------- 19
4-2. Schematic Diagrams --------------------------------------- 23
5. EXPLODED VIEWS
5-]. Hideaway Unit
5-2. Display Unit-
6. ELECTRICAL PARTS LIST ----------------------------------- 29
