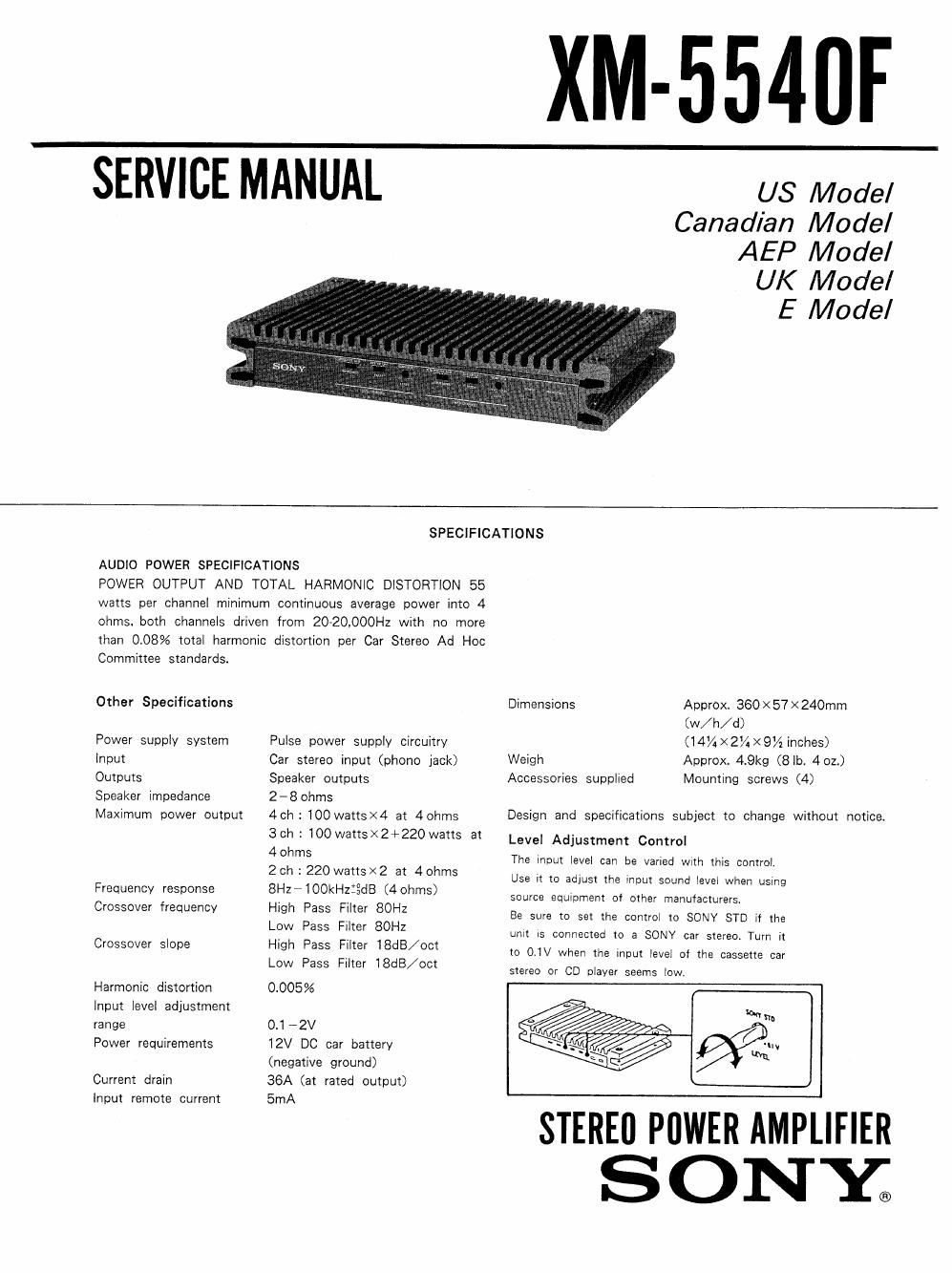

XM-554UF
TSERVIEE MANUAL
US Model
Canadian Model
AEP Model
UK Model
E Model
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION 55
watts per channel minimum continuous average power into 4
ohms, both channels driven from 20-20,000H2 with no more
than 0.08% total harmonic distortion per Car Stereo Ad Hoc
Committee standards.
Other Specifications
Power supply system
Input
Outputs
Speaker impedance
Maximum power output
Frequency response
Crossover frequency
Crossover slope
Harmonic distortion
Input level adjustment
range
Power requirements
Current drain
Input remote current
Pulse power supply circuitry
Car stereo input (phono jack)
Speaker outputs
2 - 8 ohms
40h : 100 watts><4 at 4ohms
Sch : 100 wattsX2+220 watts at
4 ohms
2 ch : 220 wattsx2 at 4 ohms
8Hz-100kHz23dB (4 ohms)
High Pass Filter 80H:
Low Pass Filter 80HZ
High Pass Filter 18dB/oct
Low Pass Filter l8dB/oct
0.005%
0.1 -2V
12V DC car battery
(negative ground)
36A (at rated output)
5mA
Dimensions
Weigh
Accessories supplied
Approx. 360 X 57 X 240mm
(w/h/d)
(14% X2/4 X 9% inches)
Approx. 4.9kg (8 lb. 4 oz.)
Mounting screws (4)
Design and specifications subject to change without notice.
Level Adjustment Control
The input level can be varied with this control.
Use it to adjust the input sound level when using
source equipment of other manufacturers.
Be sure to set the control to SONY STD if the
unit is connected to a SONY car stereo Turn it
to 0.1V when the input level of the cassette car
stereo or CD player seems low.
STEREII PIIWER AMPL FIER
SONY;
