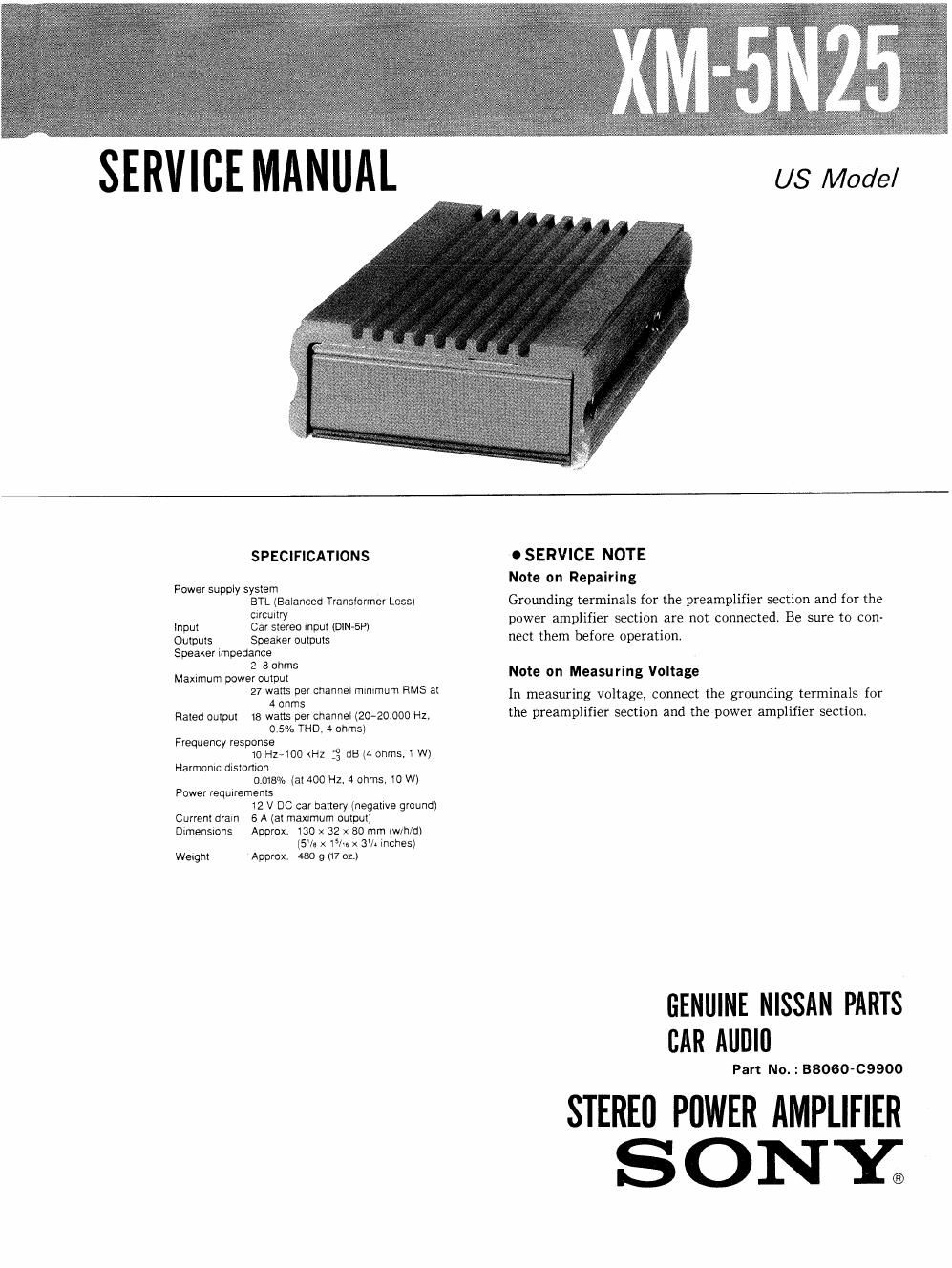

Page 1
HLUIcLMANUAL
US Model
SPECIFICATIONS
Power supply system
BTL (Balanced Transformer Less)
Circultry
Input Car stereo input (DINéP)
Outputs Speaker outputs
Speaker Impedance
2-8 ohms
Maximum power output
27 watts per channel mII'IImUm HMS at
4 ohms
Rated output 13 watts per channel (2040000 Hz,
0.5% THD, 4 ohms)
Frequency response
10 Hz-100 kHz 5; dB (4 ohms, I W)
Harmonic distortion
0.018% (at 400 Hz, 4 ohms. 10 W)
Power requirements
12 V DC car battery (negative ground)
Current drain 6 A (at maximum output)
DImeflSIOnS Approx. 130 x 32 x 30 mm (Wlh/dI
(S'Ia x15/tu x 3'/. Inches)
Werght Approx. 480 g 117 oz.)
0 SERVICE NOTE
Note on Repairing
Grounding terminals for the preamplifier section and for the
power amplifier section are not connected. Be sure to con-
nect them before operation.
Note on Measuring Voltage
In measuring voltage, connect the grounding terminals for
the preamplifier section and the power amplifier section.
GENUINE NISSAN PARTS
BAR AUDII]
Part No. : 38060-09900
STEREO PflWER AMPLIFIER
ONY;
