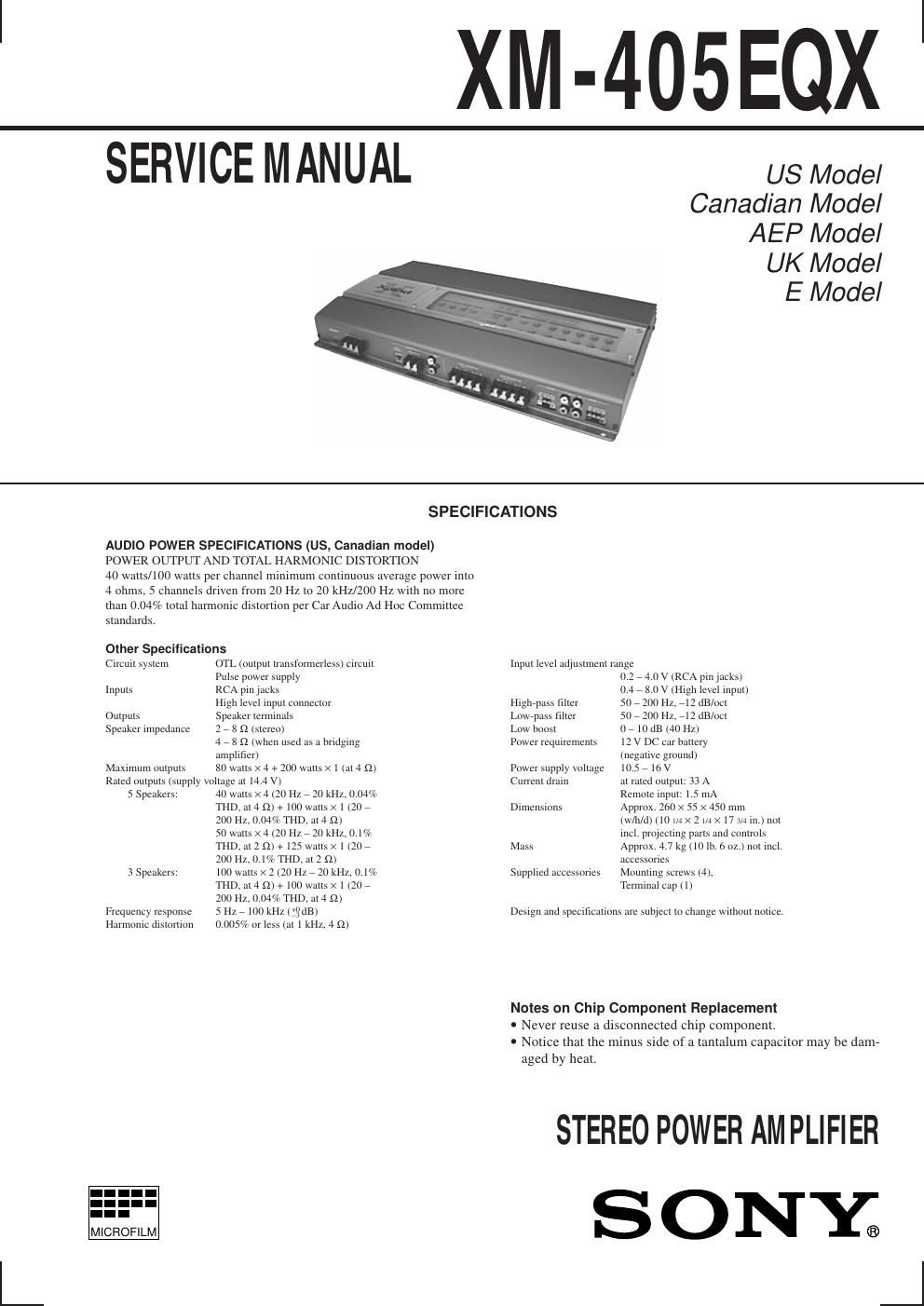

Page 1

XM-405EQX

SERVICE M ANUAL us Model

Canadian Model
AEP Model

UK Model

E Model

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS (US, Canadian model)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION

4O watts/100 wat ' per channel minimum continuous average power into
4 ohms, 5 channels driven from 20 Hz to 20 kHz/200 Hz with no more
than 0.04% total harmonic distortion per Car Audio Ad Hoc Committee

standards.

Other Specifications

Circuit system 011 (oittpitt transformerless) circitit
Pulse power supply

inputs RCA pin jacks
High level input connector

Outputs Speaker terminals

Speaker impedance 2 , 8 (2 (stereo)
4 , s (2 (when used as a bridging
amplifier)

Maximum outputs 80 watts X 4 + 200 watts X 1 (at 4 n)
Rated outputs (supply Voltage at 14.4 V)
5 Speakers: 40 watts X 4 (20 Hz 7 20 kHz, 0.04%

TI-ID. at4 n) + 100 watts X 1 (207
200 Hz, 0.04% THD, at 4 n)
50 watts X 4 (20 Hz , 20 kHz, 0.1%
THD, at 2 n) + 125 watts X 1 (207
200 Hz. 0.1% THD, at 2 n)

3 Speakers: lot) watts X 2 (20 Hz , 20 -11.01%

TI-ID. at 4 (2)1» 100 watts X 1 (20 ,
200 Hz, 0.04% Tl-n), at 4 :2)

Frequency response 5 Hz , 100 kHz (til dB)

Harmonic distortion 0.005% or less (at 1 lat; 4 n)

.-
MICROFILM

Input level adjustment range
0.2 e 4.0 V (RCA pinjacks)
0 4 r 8.0 V (High level input)

Highrpass filter 50 , 2001-12512 dB/oct
LOerass filter 50 , 2001-11712 dB/oct
Low boost o , 10 dB (40 Hz)
Power requirements 12 V DC car battery

(negative ground)
Power supply voltage 10.5 , 16 V

Current drain at rated output: 33 A
Remote input: 1.5 mA
Dimensions Approx. 250 X 55 X 450 min

(w/hld)(101/4 x 21/4 x 17 in in.) not
incl, projecting parts and controls

Mass Approx. 4,7 kg (10 lb. 6 oz.) not incl.
accessories

Supplied accessories Mounting screws (4).
Terminal cap (1)

Design and specifications are subject to change without notice.

Notes on Chip Component Replacement

0 Never reuse a disconnected chip component.

0 Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.

STEREO POWER AMPLIFIER

SONY;
