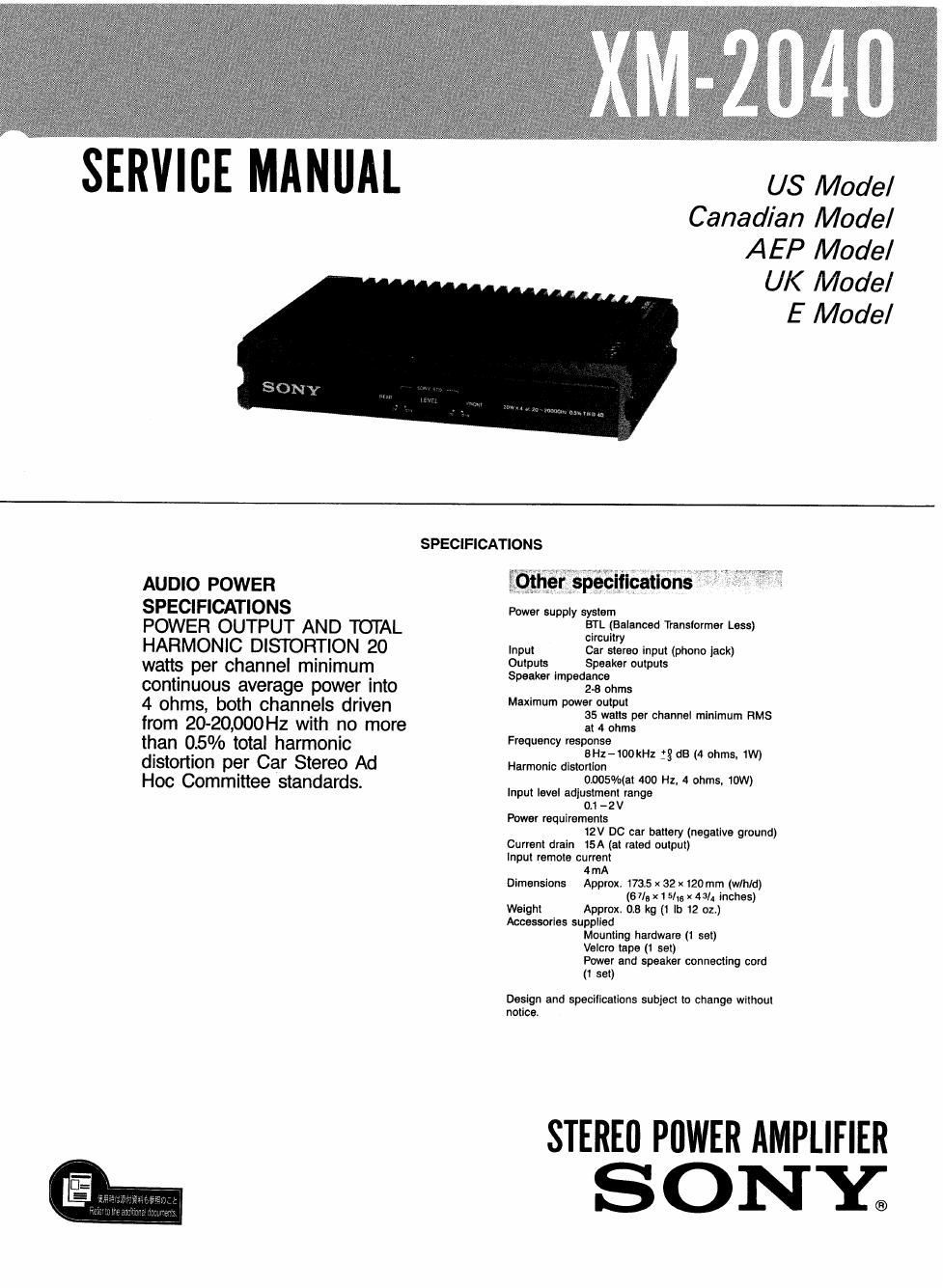

SERVICE MANUAL

US Model
Canadian Model
AEP Model

UK Model

E Model

AUDIO POWER
SPECIFICATIONS

POWER OUTPUT AND TOTAL
HAFtMONlC DISTOFITION 20
watts per channel minimum
continuous average power into
4 ohms, both channels driven
from 20-20,000Hz with no more
than 05% total harmonic
distortion per Car Stereo Ad
Hoc Committee standards.

SPECIFICATIONS

E peclflcatlons 1* >
Power supply system
BTL (Balanced Transformer Less)

circuitry
Input Car stereo input (phone lack)
Outputs Speaker outputs
Speaker impedance

2-6 ohms

Maximum power output

35 watts per channel minimum RMS

at 4 ohms
Frequency response

aHz-IOOkHZ :8 dB (4 ohms. 1W)
Harmonic distortion

04005%(al 400 Hz, 4 ohms. 10W)
Input level ad)ustmenl range

0.1 -2 V
Power requirements

12V DC car battery (negative ground)
Current drain 15A (at rated output)
Input remote current

4 mA
Dimenslons Approx. 17345 x 32 x 120 mm (wlhld)

(6 7/, xt 5/15 x 43/. inches)

Weight Approx 08 kg (I lb 12 02,)
Accessories supplied

Mounting hardware (1 set)

Velcro tape (1 set)

Power and speaker connecting cord

(1 set)

Design and specificatlons subject to change without
notice

SIEREII POWER AMPLIFIER
