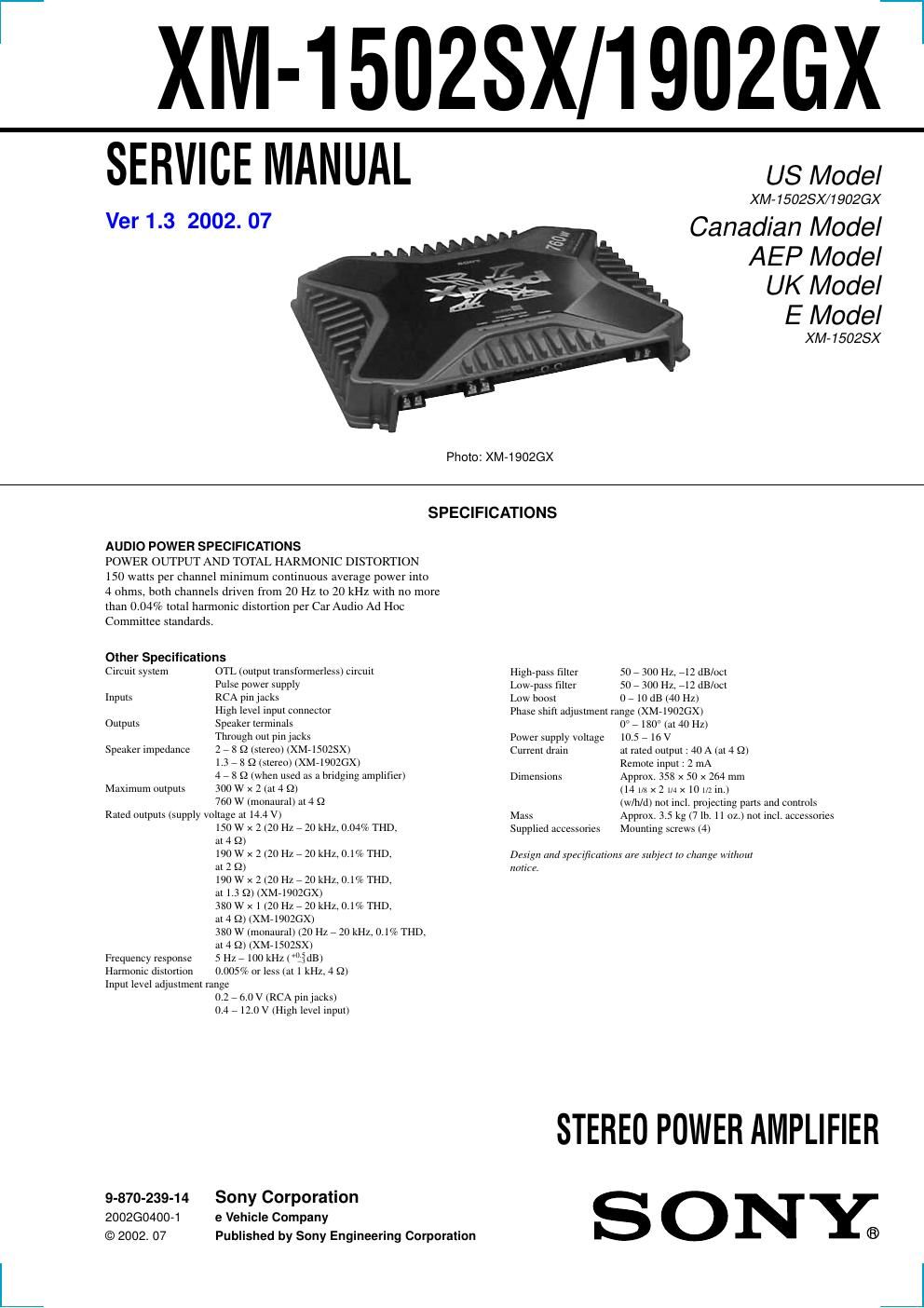

Sony xm 1502 sx service manual
This is the 34 pages manual for sony xm 1502 sx service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony xm 1502 sx service manual (Ocr-read)
Page 2
TABLE OF CONTENTS
1. GENERAL
Location and Function of Controls .......................................... 3
Connections ............................................................................. 3
2. DISASSEMBLY
2-1. Plate, Bottom.
2-2. Main Board
2-3. Front Panel .
2-4. Led Board
\l\l:h:h
3. ELECTRICAL ADJUSTMENT ...................................... 8
4. DIAGRAMS
471. Block Diagram .................................................................... 9
42. Printed Wiring Board. 7M in Section7
4-3. Schematic Diagram iMain Section (l/2)7
4-4. Schematic Diagram iMain Section (2/2)7
5. EXPLODED VIEWS
51. Heat Sink Section .....
5-2. Main Board Section .
.l4
.l4
6. ELECTRICAL PARTS LIST ......................................... 15
Notes on Chip Component Replacement
- Never reuse a disconnected chip component.
0 Notice that the minus side ofa tantalum capacitor may be dam-
aged by heat.
L2
