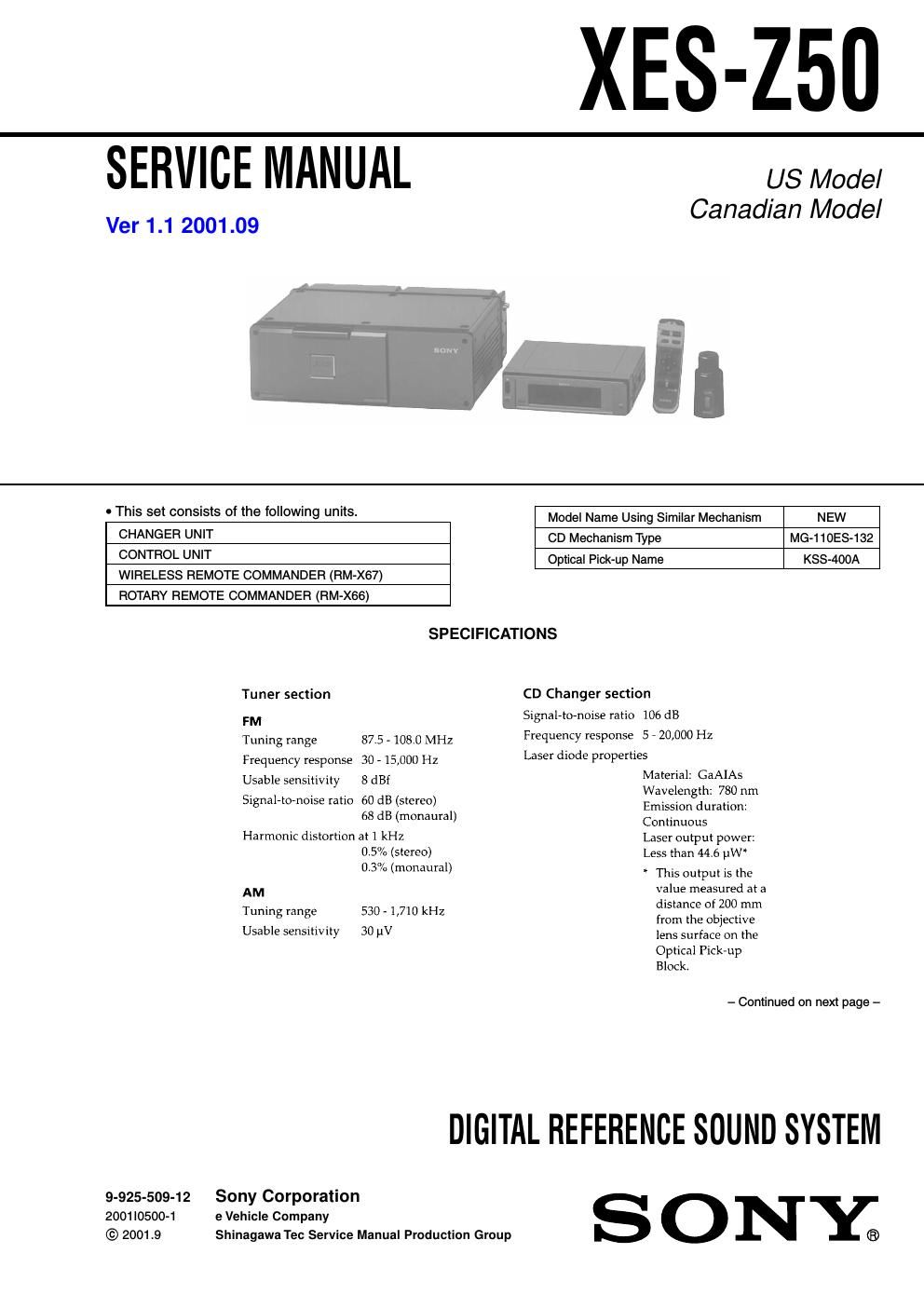

Sony xes z 50 service manual
This is the 153 pages manual for sony xes z 50 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony xes z 50 service manual (Ocr-read)
Page 1
Ð 2 Ð Flexible Circuit Board Repairing ·Keep the temperature of the soldering iron around 270 ûC dur- ing repairing. ·Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ·Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement ·Never reuse a disconnected chip component. ·Notice that the minus side of a tantalum capacitor may be dam- aged by heat. The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON HANDLING THE OPTICAL PICK- UP BLOCK OR BASE UNIT Laser Diode Properites ¥ Material: GaAlAs ¥ Wavelength: 780 nm ¥ Emission Duration: continuous ¥ Laser Output Power: less than 44.6 µW* * This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY.ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ! LES COMPOSANTS IDENTIFIƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIéCES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPLƒMENTS PUBLIƒS PAR SONY.
Page 2
Ð 3 Ð TABLE OF CONTENTS 1. SERVICING NOTES 1-1. Connection at Repair .................................................... 4 1-2. Front Panel Setting ....................................................... 4 1-3. Removal of Front Panel at Power Off ........................... 4 2. GENERAL Overview ...................................................................... 5 Precautions ................................................................... 5 Initial Settings ............................................................... 6 Attaching/Detaching the Electrically Operated Display Section ............................................. 7 Setting the Clock .......................................................... 8 Inserting CDs ................................................................ 9 Using the Rotary Remote ............................................. 11 Using the Wireless Remote .......................................... 12 Menu Display/Lists ...................................................... 13 Listening to a CD .......................................................... 13 Playing Tracks Repeatedly ........................................... 14 Playing Tracks in Random Order ................................. 15 Selecting Specific Tracks for Playback ........................ 15 Setting Sound Effects for Each CD/MD ....................... 16 Labeling a CD ............................................................... 17 Locating a Disc by Title ............................................... 18 Viewing CD TEXT Information ................................... 19 Listening to Radio ........................................................ 20 Presetting Radio Stations .............................................. 21 Specifying Monaural/Stereo Mode ............................... 22 Receiving Only the Strongest Signals .......................... 23 Labeling Radio Stations ............................................... 23 Selecting a Station by Name ......................................... 25 Set up Menu .................................................................. 25 AUX Menu ................................................................... 26 Selecting the Parametric Equalizer Pattern .................. 27 Selecting the Cross-over Network Pattern ................... 28 Listening to an Optional CD/MD Changer .................. 28 Precautions and Maintenance ....................................... 29 An Example of FIR Filter (4095 tap) Frequency Response Table .......................... 30 Installing the Wireless Remote ..................................... 31 After Installation and Connections Have Been Completed .................................................. 31 Installing the Rotary Remote ........................................ 31 Installing the Control Unit ............................................ 32 Installing the CD Changer ............................................ 34 Connection Diagram (3Way System) ........................... 35 System Configuration Examples .................................. 36 3. DISASSEMBLY ....................................................... 37 4. MECHANICAL ADJUSTMENT ......................... 45 5. TEST MODE ............................................................ 46 6. ELECTRICAL ADJUSTMENTS Tuner Section ................................................................ 46 CD Section .................................................................... 48 Display Section ............................................................. 49 7. DIAGRAMS 7-1. IC Pin Function Description ......................................... 52 7-2. IC201 (BA6247FP-Y) Motor Driver IC Operation ...... 76 7-3. Block Diagram Ñ Control Unit (TUNER Section) Ñ .......................... 77 7-4. Block Diagram Ñ Control Unit (DISPLAY Section) Ñ ....................... 79 7-5. Block Diagram Ñ Control Unit (BUS CONTROL/POWER SUPPLY Section) Ñ ........ 81 7-6. Block Diagram Ñ Changer Unit (CD Section (1/2)) Ñ ....................... 83 7-7. Block Diagram Ñ Changer Unit (CD Section (2/2)) Ñ ....................... 85 7-8. Block Diagram Ñ Changer Unit (MAIN Section (1/2)) Ñ .................. 87 7-9. Block Diagram Ñ Changer Unit (MAIN Section (2/2)) Ñ .................. 89 7-10. Block Diagram Ñ Changer Unit (D/A CONVERTER Section) Ñ ...... 91 7-11. Block Diagram Ñ Changer Unit (BUS CONTROL/POWER SUPPLY Section) Ñ ........ 93 7-12. Printed Wiring Board Ñ Control Unit (MAIN Section) Ñ ............................ 98 7-13. Schematic Diagram Ñ Control Unit (MAIN Section) Ñ ............................ 101 7-14. Schematic Diagram Ñ Control Unit (FRONT PANEL/ DESORPTION MECHANISM Section) Ñ ................ 106 7-15. Printed Wiring Boards Ñ Control Unit (FRONT PANEL/ DESORPTION MECHANISM Section) Ñ ................ 111 7-16. Printed Wiring Boards Ñ Changer Unit (DRIVER Section) Ñ ....................... 116 7-17. Schematic Diagram Ñ Changer Unit (DRIVER Section) Ñ ....................... 119 7-18. Printed Wiring Boards Ñ Changer Unit (CHANGER Section) Ñ .................. 123 7-19. Schematic Diagram Ñ Changer Unit (CHANGER Section) Ñ .................. 127 7-20. Schematic Diagram Ñ Changer Unit (DSP Section) Ñ .............................. 132 7-21. Printed Wiring Board Ñ Changer Unit (DSP Section) Ñ .............................. 137 7-22. Printed Wiring Boards Ñ Changer Unit (DAC Section) Ñ .............................. 142 7-23. Schematic Diagram Ñ Changer Unit (DAC Section) Ñ .............................. 145 8. EXPLODED VIEWS .............................................. 170 9. ELECTRICAL PARTS LIST ............................... 183
