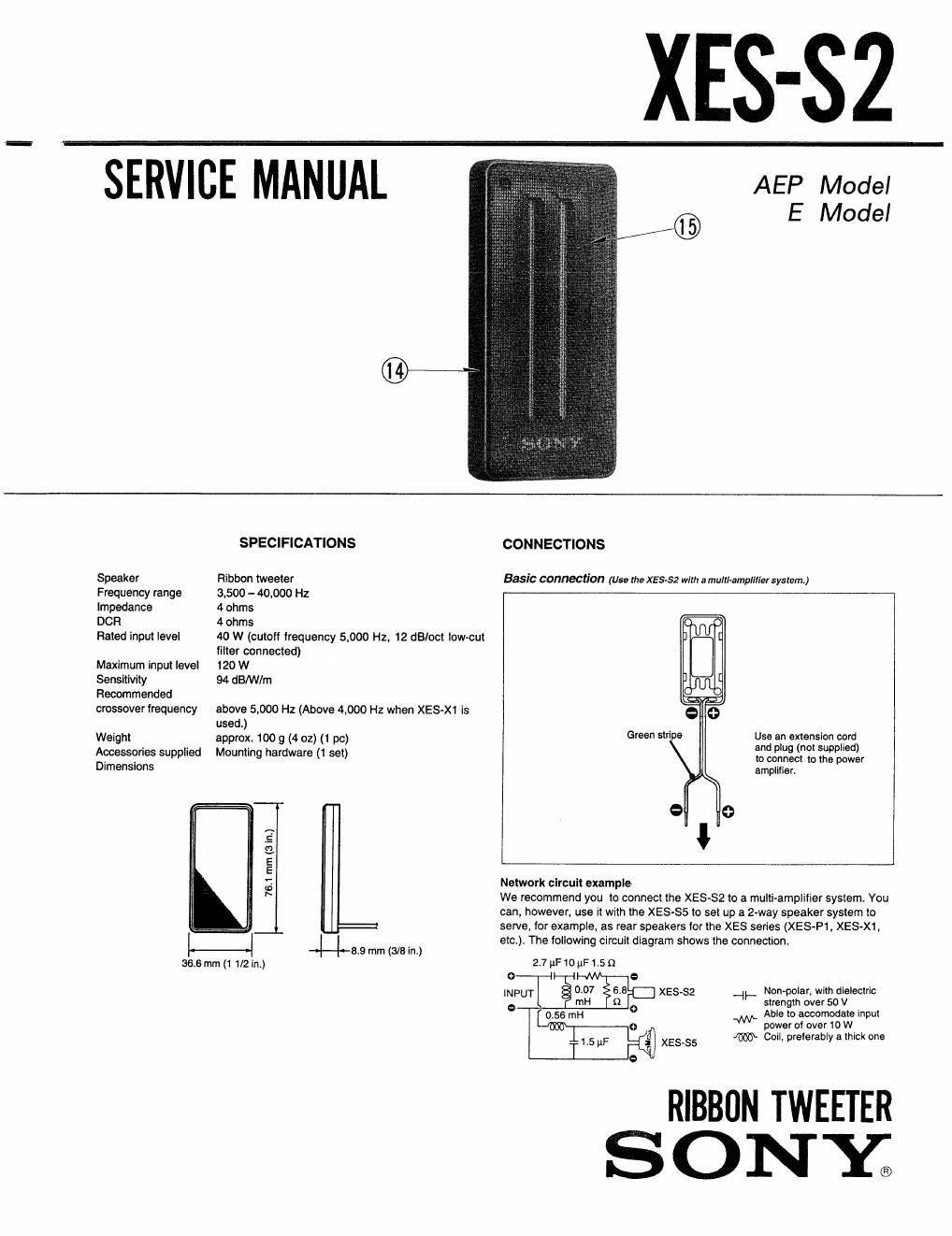

Page 1

XES-$2

SERVICE MANUAL

AEP Model
E Model

Speaker
Frequency range
Impedance

DCR

Rated input level

Maximum input level
Sensitivity
Recommended
crossover frequency

Weight
Accessories supplied
Dimensions

SPECIFICATIONS

Ribbon tweeter

3,500 - 40,000 Hz

4 ohms

4 ohms

40 W (cutoff frequency 5,000 Hz. 12 dB/oct tow-cut
filter connected)

120 W

94 dB/W/m

above 5.000 Hz (Above 4,000 Hz when XES~X1 is
used.)

approx. 100 g (4 oz) (1 pc)

Mounting hardware (1 set)

I:

9.9 mm (318m)

761mm(3ln)

36.6 mm (1 1/2 in)

CONNECTIONS

Basic connection (Use the XES-52 with n mullI-ampllfier system)

Use an extension cord
and plug (not supplied)
to connect to the power
amplifier.

Green stripe

Network circuit example

We recommend you to connect the XES-$2 to a multi-amplilier system. You
can, however, use it with the XES-$5 to set up a 2-way speaker system to
serve, lor example. as rear speakers for the XES series (XES-P1, XES-X1,
etc), The lollowing circuit diagram shows the connection.

2.7pF10uF159

Non-polar, with dielectric
strength over 50 V
Able to acoomodate input
power at over 10 W

1m Coil, prelerably a thick one

-=1t5 uF XES-SS

RIBBON TWEETER
SONY;

Page 2

XES- SZJ

PARTS LIST

NOTE:

0 Items marked t" are not stocked since they are seldom
required for routine service. Some delay should be anticipated
when ordering these items.

Ref. No. Part No Descrigtion Remarks

(D 3-372-018-0
® Printed on Carton

SHEET (ADHES I 0")

© x3-370-520-01 BRACKET
@®®
ASZSZ-Zafi-A SCREW ASSV
®
© Printed on Carton
© :3-370»519-01 BRACKET
(ID :37370-518-01 BRACKET
® 1-544-543-II SPEAKER
<13) 3~310-5I7-01 NET GRILLE
t3-370-643-01 INDIVIDUAL CARTON

$3-370-647-Ol CUSHION

3-753765021 MANUAL. INSTRUCTION
(ENGLISH. FRANCH) (E)

3453-65041 MANUAL. INSTRUCTION
(ENGLISH/FRENCH/GENMN/DUTCH/
SWEDISH/lTALIAN/PORTUGUESE/
CHINESE) (AEP)

SYSTEM CONNECTION EXAMPLE

4-way

E] For installing onto the dashboard

(D:
x2

IE For Installing onto the Inside of a car door

o 0 ® ® (5)
o E @
0 x1 7 XE X4 X4

Template (the back at the canon)

E] For embedding into a car door

® ® ® to
© @
\t 9 , x2 x2
x1 1

1
T

, x2

Template (the back 01 the canon)

0W 9%:

Crossover network
(such as XES-X1)

LOW L0 HI HIGH
«MID -M|D

Powerampli'ier Poweramplifiev Poweramplilier Powerampliliar

(such as (such as (such as (such as
XES-MS) XES-M1) XES«MI) XES-Mi)

XES-Sl 2 XES-SG XES-84 XES-SZ

Sony Corporation
Mobil Electronics Group

_2_._

9-956-615-12

FREQUENCY RESPONSE

Output level, directional lrequency response/harmonic distortion/impedance
anacholc room 1 m. 1 W

100

90

80

70

3 60 Secondary harmonic distortion g
'5 S
E 50 a g
3

g 4 8
0 40 g

30
20 .
10 Tertiary harmonic distortion
0
2K 5K 10K 20K 50K
Frequency (Hz)
English
91H1649-i
Printed in Japan
@1991. 8

Published by Customer Relations and Service Group
