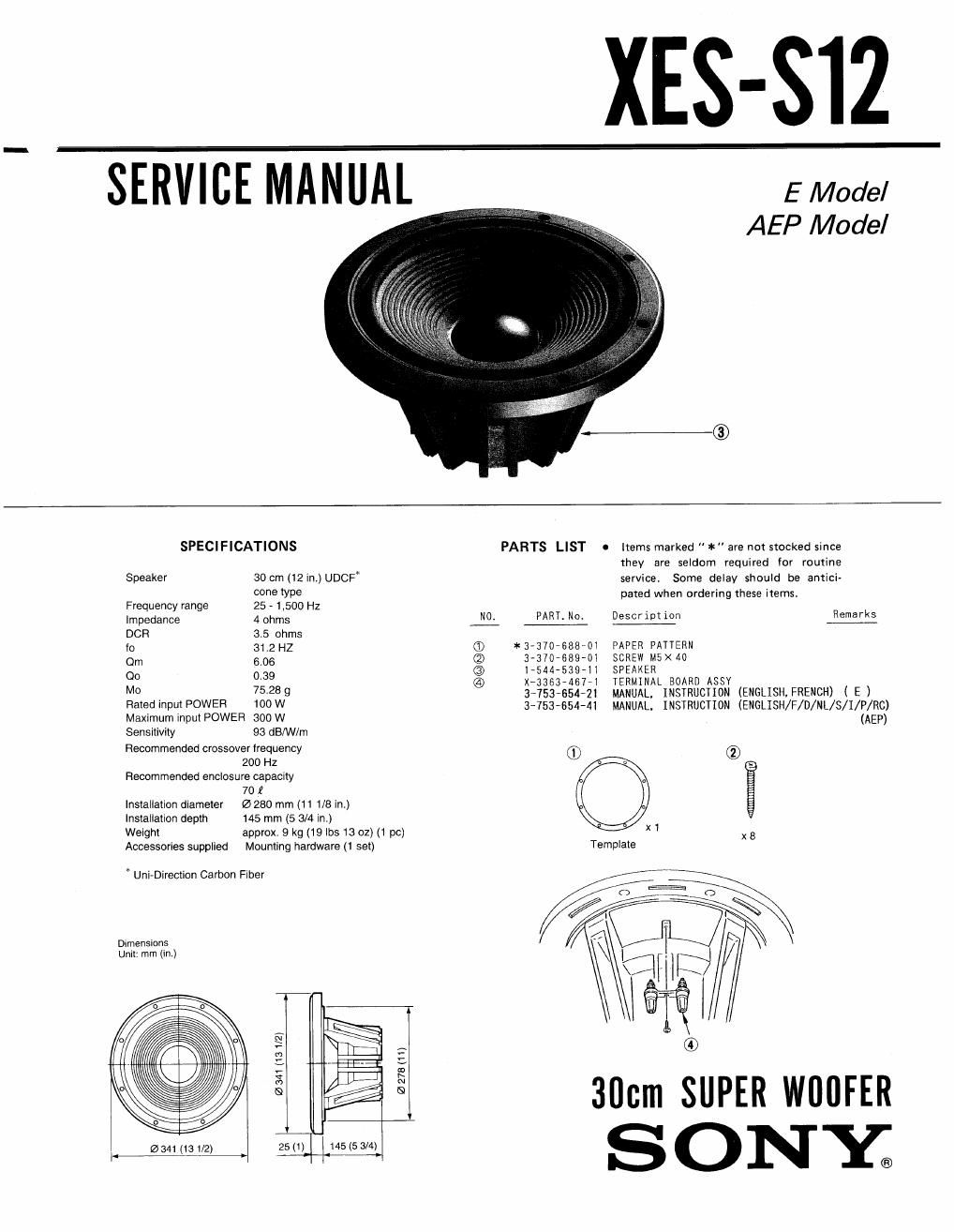

XES-SIZ
SERVICE MANUAL , _ WM
AEP Model
SPECIFICATIONS PARTS LIST 0 Items marked a: " are not stocked since
they are seldom required for routine
Speaker 30 cm (12 in.) UDCF service. Some delay should be antici-
cone WPE pated when ordering these items.
Frequency range 25 - 1,500 Hz .
Impedance 4ohms N0. PART No, Descript ton Remarks
DCR 3.5 ohms
f0 31.2 HZ ® *3>3707688-01 PAPER PATTERN
. @ 3370-589'01 SCREW M5X40
3;" Egg ® l-544~539-11 SPEAKER
' @ X-3363-467>l TERMINAL BOARD ASSY
M° _ 75-28 9 3453-6544: MANUAL lusmucuou (ENGLISH FRENCH) ( E )
Rated Input POWER 100 W 3453455441 MANUAL. INSTRUCTION (ENGLISH/F/D/NL/S/I/P/Rc)
Maximum input POWER 300 W (AEP)
Sensitivity 93 dBNV/m
Recommended crossover trequency
200 HZ (D ®
Recommended enclosure capacity
70 1
Installation diameter @280 mm (11 1/8 in.)
Installation depth 145 mm (5 3/4 in.)
Weight approx. 9 kg (19 lbs 13 oz) (1 pc)
Accessories supplied Mounting hardware (1 set)
Uni-Direction Carbon Fiber
Dimensions
Unit: mm (in)
Q
E
5
a
306m SUPER WflflFER
MW SONY
E 341(131/2)
