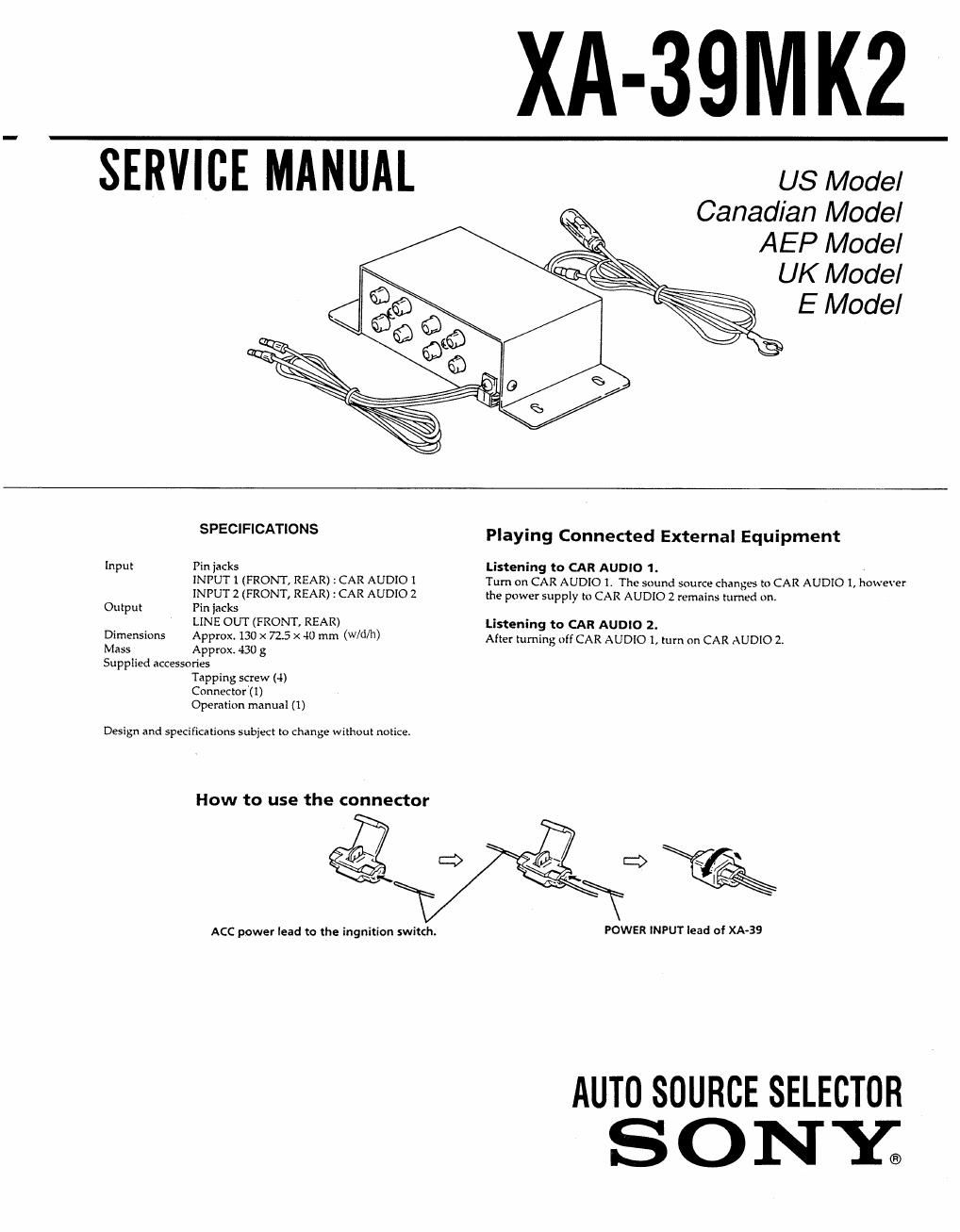

Page 1
XA-39M K2
SERVICE MANUAL USModel
Canadian Model
AEP Model
UK Model
E Model
SPEC'FCAT'ONS Playing Connected External Equipment
Input Pin jacks Listening to CAR AUDIO 1.
INPUT 1 (FRONT, REAR) : CAR AUDIO 1 Turn on CAR AUDIO 1, The sound source changes to CAR AUDIO 1, however
INPUT 2 (FRONT, REAR) : CAR AUDIO 2 the power supply to CAR AUDIO 2 remains lumed on.
Output Pin jacks
LINE OUT (FRONT, REAR) Listening to CAR AUDIO 2.
Dimensions APPmX 130 x 77.5 x 40 mm (WM/h) After turning off CAR AUDIO 1, tum on CAR AUDIO 2.
Mass Approx. 430 g
Supplied accessories
Tapping screw (4)
Connector '( 1)
Operation manual (1)
Design and specifications Subiect to change without notice
How to use the connector
ACC power lead to the ingnition switch. POWER INPUT lead of XA-39
AUTO SOURCE SELECTOR
S O N Y;
Page 2
SECTION 1
CONNECTIONS
POWER INPUT lead (red)
---c:»->
To the power terminal which is energizes when the
ignition key ls set to the accessory position
0
CAR AUDIO 2
CAR AUDIO 1
AMP REM OUTPUT lead
To REAR OUT
-' mm
To FRONT OUT
AMP REM INPUT lead
(Blue/white striped)
f To mom our
AMP REM OUTPUT lead
To REAR OUT
AMP REM INPUT lead
(Blue/black striped)
AMP REM OUTPUT lead (Blue/white striped)
To LINE IN
Power amplifier for
front speakers
A:
Front speakers
filmm- E g
'C -E To a metal part of the car
6
Ground wire (black)
To LINE IN
Power amplifier for
rear speakers
Rear speakers
