Extracted text from sony ws fv 100 service manual (Ocr-read)

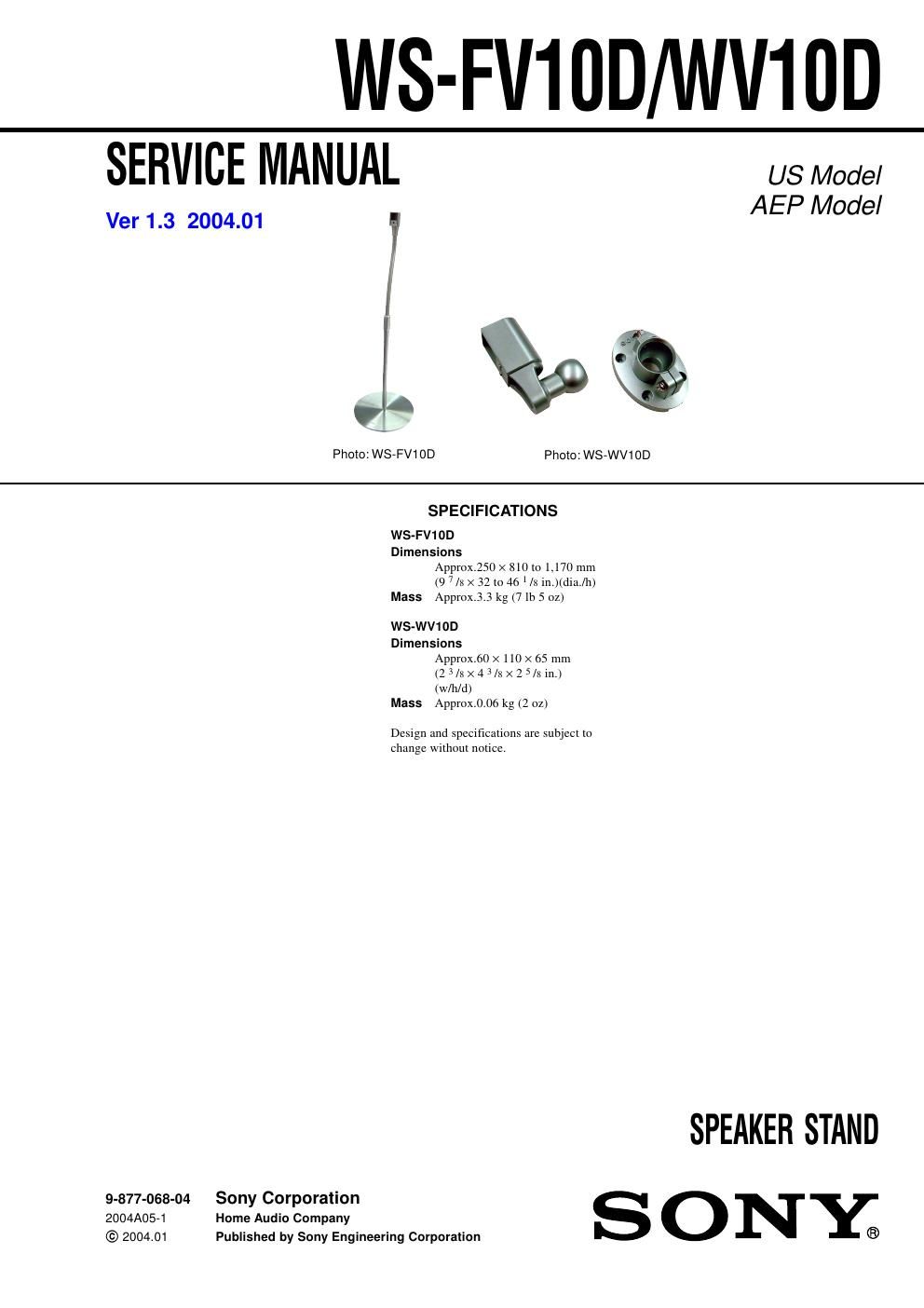

Page 1
2 WS-FV10D/WV10D 34 5 6 7 8 9 1 2 #1 #2 #2 #2 not supplied not supplied not supplied 1-1. WS-FV10D SECTION 1 EXPLODED VIEWS - Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - The mechanical parts with no reference num- ber in the exploded views are not supplied. NOTE: - -XX and -X mean standardized parts, so they may have some difference from the original one. - Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Pa rts Color Cabinet's Color Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 A-4737-904-A BRACKET ASSY (L TYPE) (Left and right one set) 2 A-4737-905-A BRACKET ASSY (B TYPE) (Left and right one set) 3 4-239-620-21 COVER 4 4-246-701-01 BRACKET, SS 5 4-243-509-02 PIPE, TOP 6 4-243-510-01 PIPE, BASE 7 4-243-511-01 NUT, COLLET 8 4-243-512-01 RING, COLLET 9 4-219-154-03 FOOT #1 7-682-558-04 SCREW +B 4X4 #2 7-682-578-04 SCREW +B 5X16 ACCESSORIES ************ 4-219-154-03 FOOT 4-246-697-02 MANUAL, INSTRUCTION (JAPANESE, ENGLISH, FRENCH, GERMAN, SPANISH, DUTCH, SWEDISH, ITALIAN, PORTUGUESE, DANISH, FINNISH, TRADITIONAL CHINESE, SIMPLIFIED CHINESE) 7-682-577-04 SCREW +B 5X14 (for fixing the speaker) V er 1.3
Page 2
3 WS-FV10D/WV10D 1-2. WS-WV10D Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 4-246-721-01 BRACKET, WM 52 4-239-620-21 COVER 53 4-246-716-01 BRACKET, SS 54 A-4737-924-A BRACKET ASSY (L TYPE)(Left and right one set) 55 A-4737-925-A BRACKET ASSY (B TYPE) (Left and right one set) #2 7-682-578-04 SCREW +B 5X16 #3 7-682-577-04 SCREW +B 5X14 #4 7-685-672-14 SCREW +BVTP 5X12 TYPE2 N-S #5 7-684-025-04 N 5, TYPE 2 #6 7-623-212-22 SW 5, TYPE 2 ACCESSORIES ************ 4-246-719-01 MANUAL, INSTRUCTION (JAPANESE, ENGLISH, FRENCH, GERMAN, SPANISH, DUTCH, SWEDISH, ITALIAN, PORTUGUESE, DANISH, FINNISH, TRADITIONAL CHINESE, SIMPLIFIED CHINESE) 7-682-577-04 SCREW +B 5X14 (for fixing the speaker) 53 54 55 52 #4 #5 #3 #6 #2 #2 #2 #2 51 not supplied not supplied V er 1.3
