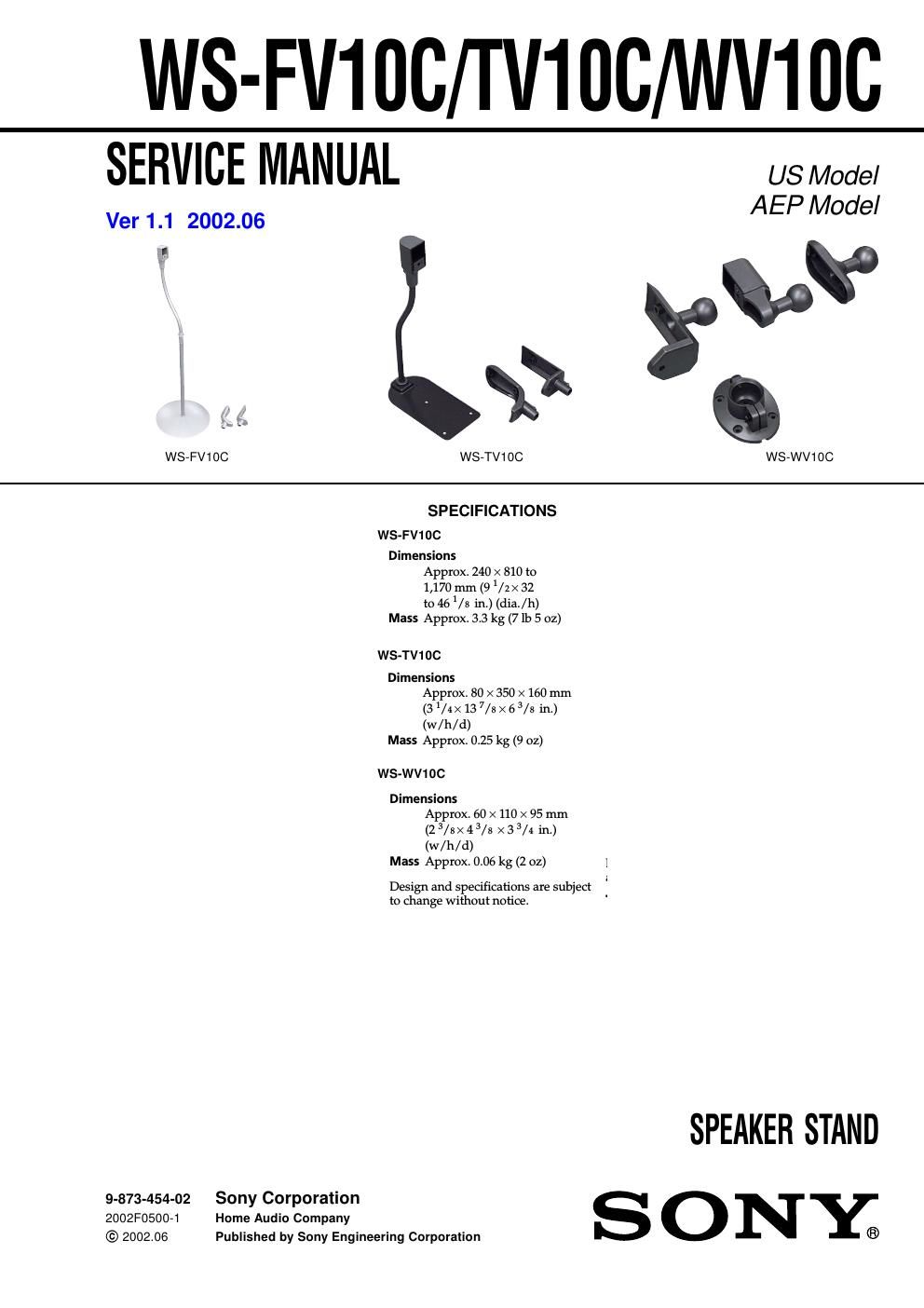

Sony ws fv 10 c service manual
This is the 6 pages manual for sony ws fv 10 c service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ws fv 10 c service manual (Ocr-read)
Page 1
2 WS-FV10C/TV10C/WV10C 1-1. WS-FV10C SECTION 1 EXPLODED VIEWS - Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - The mechanical parts with no reference num- ber in the exploded views are not supplied. NOTE: - -XX and -X mean standardized parts, so they may have some difference from the original one. - Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Parts Color Cabinet's Color not supplied 3 4 2 1 #1 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 4-217-510-02 BRACKET, SS (BLACK) 1 4-217-510-22 BRACKET, SS (SILVER) 2 4-220-793-02 BRACKET, SS (705/815) (BLACK) 2 4-220-793-22 BRACKET, SS (705/815) (SILVER) 3 4-239-620-02 COVER (SILVER) 3 4-239-620-12 COVER (BLACK) 4 4-232-388-02 BRACKET, SS (BLACK) 4 4-232-388-22 BRACKET, SS (SILVER) #1 7-685-159-14 SCREW +P 4X8 TYPE2 NON-SLIT (SILVER)#1 7-685-159-19 SCREW +P 4X8 TYPE2 NON SLIT (BLACK) ACCESSORIES ************ 4-219-154-02 FOOT 7-682-578-04 SCREW +B 5X16 (for fixing the speaker) (SILVER) 7-682-578-09 SCREW +B 5X16 (for fixing the speaker) (BLACK) Ver 1.1
Page 2
3 WS-FV10C/TV10C/WV10C 1-2. WS-TV10C Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 4-219-020-02 BRACKET, SS (BLACK) 51 4-219-020-22 BRACKET, SS (SILVER) 52 4-220-794-02 BRACKET, SS (705/815) (BLACK) 52 4-220-794-22 BRACKET, SS (705/815) (SILVER) 53 4-239-620-02 COVER (SILVER) 53 4-239-620-12 COVER (BLACK) 54 4-232-392-02 BRACKET, SS (BLACK) 54 4-232-392-22 BRACKET, SS (SILVER) not supplied 53 54 52 51 #1 #1 7-685-159-14 SCREW +P 4X8 TYPE2 NON-SLIT (SILVER) #1 7-685-159-19 SCREW +P 4X8 TYPE2 NON-SLIT (BLACK) ACCESSORIES ************ 7-682-578-04 SCREW +B 5X16 (for fixing the speaker) (SILVER) 7-682-578-09 SCREW +B 5X16 (for fixing the speaker) (BLACK) Ver 1.1
