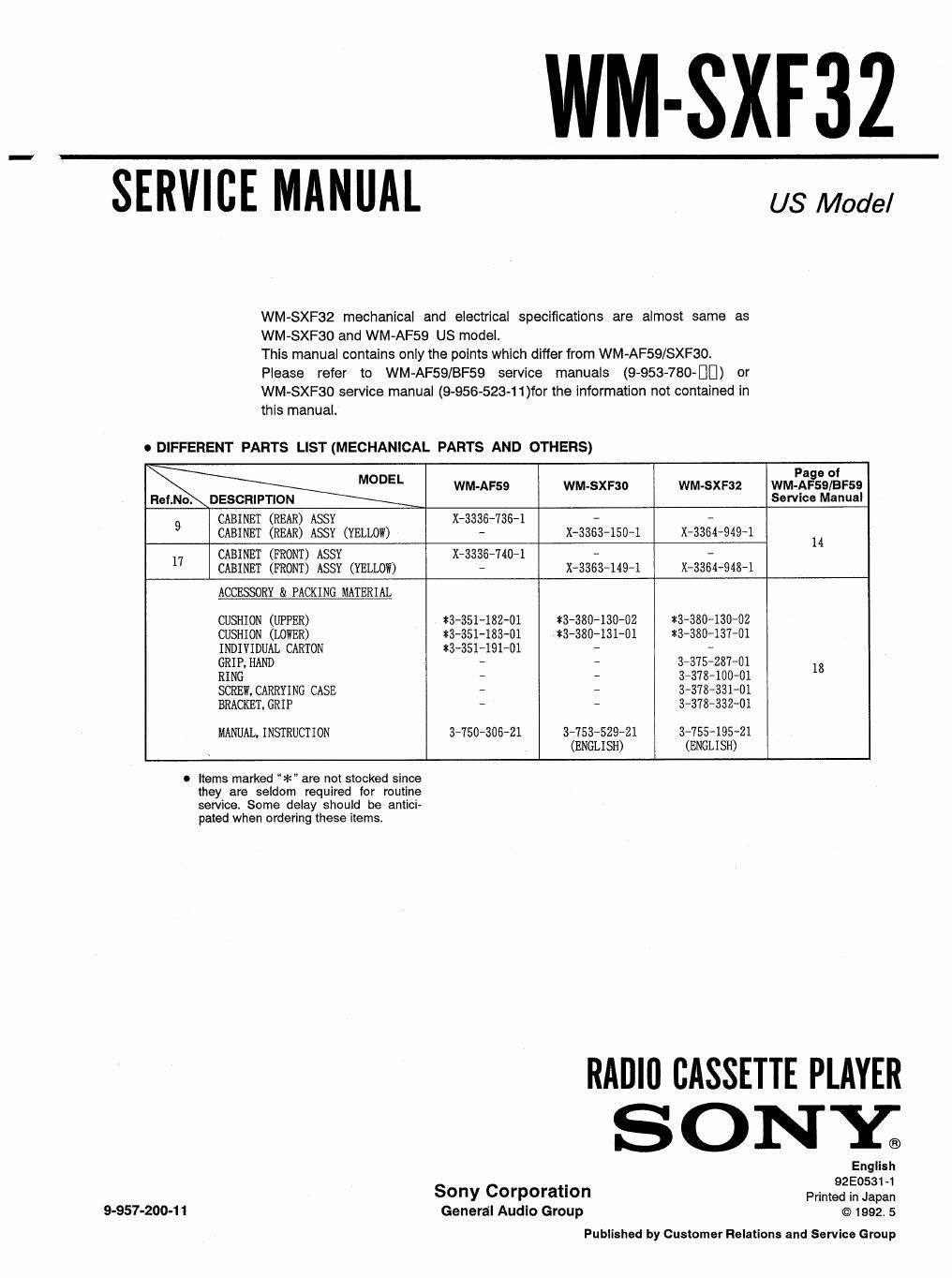

Page 1
WM-SXF32
SERVICE MANUAL
US Model
WM-SXF32 mechanical and electrical specifications are almost same as
WM-SXF30 and WM-AF59 US model.
This manual contains only the points which differ from WM-AF59/SXF30.
Please refer to WM-AF59/BF59 service manuals (9»953-760-DD) or
WM-SXF30 service manual (9-956-523-11)for the information not contained in
this manual.
0 DIFFERENT PARTS LIST (MECHANICAL PARTS AND OTHERS)
Page of
M°°EL WM-AF59 WM-SXFSO wm-sxr-az WM-AF59/3F59
Ref.No. DESCRIPTION Service Manual
9 CABINET (REAR) ASSY X-3336-736-1 - -
CABINET (REAR) ASSY (YELLOW) - X-3363-ISO-I X-3364-949-1 14
17 CABINET (FRONT) ASSY X-3336-740-1 - -
CABINET (FRONT) ASSY (YELLOW) - X-3363-149~1 X-3364-948-1
ACCESSORY 8: PACKING MATERIAL
CUSHION (UPPER) t3-351-182~01 #34380430-02 :3-380-130-02
CUSHION (LOWER) t3-351-183-01 *3-380-131-01 13-380-137-01
INDIVIDUAL CARTON *3-351-191-01 -
GRIP, HAND - ' 3-375-287-01 18
RING - ~ 3-378-100-01
SCREW, CARRYING CASE - - 3-378-331-01
BRACKET. GRIP - A 3-378-332~01
MANUAL. INSTRUCTION 3-750-306-21 3-753-529-21 3-755<195-21
(ENGLISH) (ENGLISH)
0 items marked *" are not stocked since
they are seldom required for routine
service, Some delay should be antici~
pated when ordering these items,
English
. 92E0531-I
sony Corporatlon Printed in Japan
9-957-200-11 General Audio Group © 1992. 5
Published by Customer Relations and Service Group
