Extracted text from sony wm gx 677 service manual (Ocr-read)

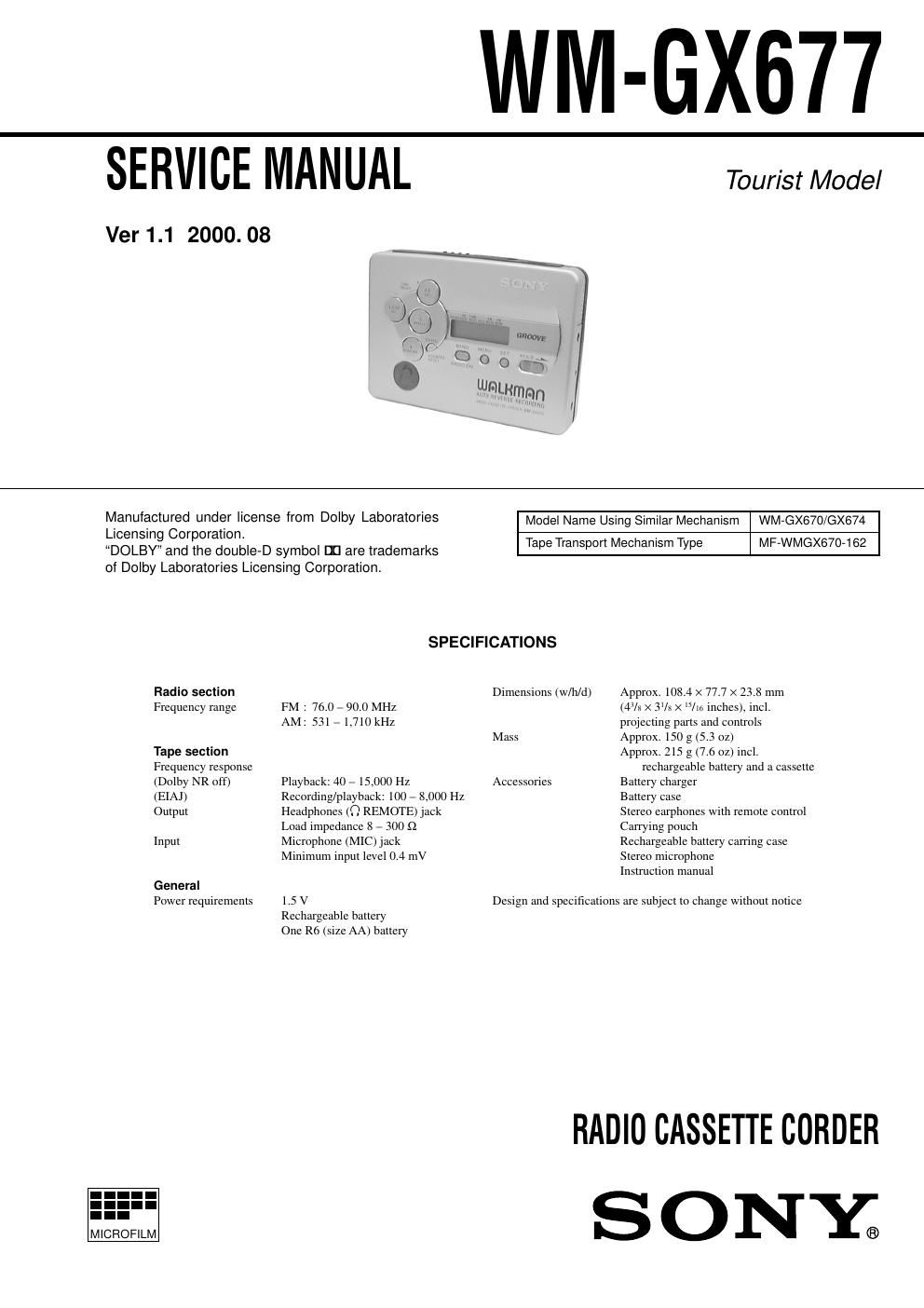

Page 1
Ñ 2 Ñ Notes on chip component replacement ¥ Never reuse a disconnected chip component. ¥ Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing ¥ Keep the temperature of soldering iron around 270ûC during repairing. ¥ Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ¥ Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. TABLE OF CONTENTS 1. SERVICE NOTE ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááááááááááá 3 2. GENERAL ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááááááááááááááááááááá 5 3. DISASSEMBLY 3-1. Case Block Assembly ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áá 6 3-2. Belt (F2) ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááááááááááááááááááááá 7 3-3. Cassette Lid Assembly ááááááááááááááááááááááááááááááááááááááááááááááááááá\ á 7 3-4. Reel Ornament Assembly ááááááááááááááááááááááááááááááááááááááááááááááá 8 3-5. Main Board ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááááááááááááááááá 8 3-6. Motor (M601) ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááááááááááááá 9 3-7. Holder Assembly ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááááááááá 9 3-8. Pinch Lever (N)/(R) Assembly ááááááááááááááááááááááááááááááááááááá 10 3-9. Magnetic Head (HP901) ááááááááááááááááááááááááááááááááááááááááááááááá 10 4. MECHANICAL ADJUSTMENT áááááááááááááááááááááááááááááááá 11 5. ELECTRICAL ADJUSTMENT áááááááááááááááááááááááááááááááááá 11 6. DIAGRAMS 6-1. Block Diagram ááááááááááááááááááááááááááááááááááááááááááááááááááá\ ááááááááááá 13 6-2. Printed Wiring Board ááááááááááááááááááááááááááááááááááááááááááááááááááá\ á 16 6-3. Schematic Diagram (1/2) áááááááááááááááááááááááááááááááááááááááááááááá 19 6-4. Schematic Diagra (2/2) ááááááááááááááááááááááááááááááááááááááááááááááááá 22 6-5. IC Block Diagrams ááááááááááááááááááááááááááááááááááááááááááááááááááá\ áááá 25 6-6. IC Pin Function Discription áááááááááááááááááááááááááááááááááááááááááá 27 7. EXPLODED VIEWS 7-1. Cabinet Block, Main Board áááááááááááááááááááááááááááááááááááááááááá 29 7-2. Mechanism Deck Block áááááááááááááááááááááááááááááááááááááááááááááááá 30 8. ELECTRICAL PARTS LIST ááááááááááááááááááááááááááááááááááááááá 31
Page 2
Ñ 3 Ñ p (S3) ENTER (S10) REC (S11)BAND (S8)MENU (S6) R43 (SIDE A)Q15 (SIDE A) SET (S7) (S1) FWD ¬STOP ®REV Battery terminal Õ Battery terminal Ô Square wave (sine wave) 10 Hz, -3.5 dB AF OSC Plunger (PM901) Short Short TAPE DETECT SWITCH (S901-2) R TUME SWITCH (S901-1) FF AMS (S4) REW AMS (S5) Ï REPEAT (S9)F TUME SWITCH (S902-1) ATS SWITCH (S902-2) M601 M SECTION 1 SERVICE NOTE [Service Mode] The service mode enables to operate the mechanism of WM-GX677 while the MAIN board is opened. Rotation of the idler gear (A) (S side) is detected using the photo- reflector (PH1) in the WM-GX677. PH1 is located on the MAIN board, therefore the rotation of the idler gear (A) (S side) cannot be detected by PH1 when the MAIN board is removed. As a result, the motor cannot be controlled and cannot run correctly. To repair the machine after the MAIN board is removed while the main power is turned on, follow the procedures as described below. 1. Setting 1) Remove the cabinets referring to section Ò3. DISASSEMBLYÓ. Open the MAIN board. 2) Connect the motor (M601) and the plunger solenoid (PM901) to the MAIN board using the jumper wires. When the extension jig (1-769-143-11) (10 wires as a set) is used, they can be connected easily. 3) Short the TAPE DETECT switch (S901-2), R TUME switch (S901-1), F TUME switch (S902-1) and ATS switch (S902-2). 4) Connect an AF oscillator to resistor (R43). 5) Connect DC 1.3 V from external regulated power supply to Ô and Õ terminals of the battery. 2. PRE-SET status The PLAY, FF and REW modes can be entered only from the PRE- SET status. 1) Check that the slider (NR) is in the center position (S1), and the FWD/REV switch is also in the center position. When these switches are not in the center position, set them to the PRE-SET status as follows. 2) Move the FWD/REV switch (S1) to the same position as the slider (NR) is set. 3) The slider (NR) can be moved when the main power of the regulated power supply is turned OFF once then back ON. Move the FWD/REV switch (S1) to the center position in synchronism with the timing when the slider (NR) is moved.3. FF, REW modes 1) Check that the PRE-SET status is set. 2) Connect square wave or sine wave to resistor (R43). (See illustration below.) 3) Press the p switch (S3) to enter the STOP mode. 4) Press the FF AMS switch (S4) and the REW AMS switch (S5). 4. PLAY mode 1) Check that the PRE-SET status is set. 2) Connect square wave or sine wave to resistor (R43). (See illustration below.) 3) Press the p switch (S3) to enter the stop mode. 4) When the 9(REPEAT switch (S9) of the MAIN board is pressed, the slider (NR) moves once to the F side then moves to the R side. When the FWD/REV switch (S1) is pressed in the synchronism with the above timing, the machine can enter the PLAY (R side) mode. Press the 9(REPEAT switch (S9) again, and move the FWD/REV switch (S1) in the synchronism with the motion of slider (NR). It enables the machine to enter into the PLAY (F side) mode. Note 1: When you fail to enter the PLAY mode, re-start from step 1) PRE-SET status. Note 2: Regarding the 9(REPEAT (S9), p (S3), FF AMS (S4), and REW AMS (S5) switches, use these switches of the remote control unit as much as possible. Note 3: If a headphones are used, the beep sound shows the timing of the FWD/REV switch (S1). Ð MAIN BOARD (SIDE B) Ñ
