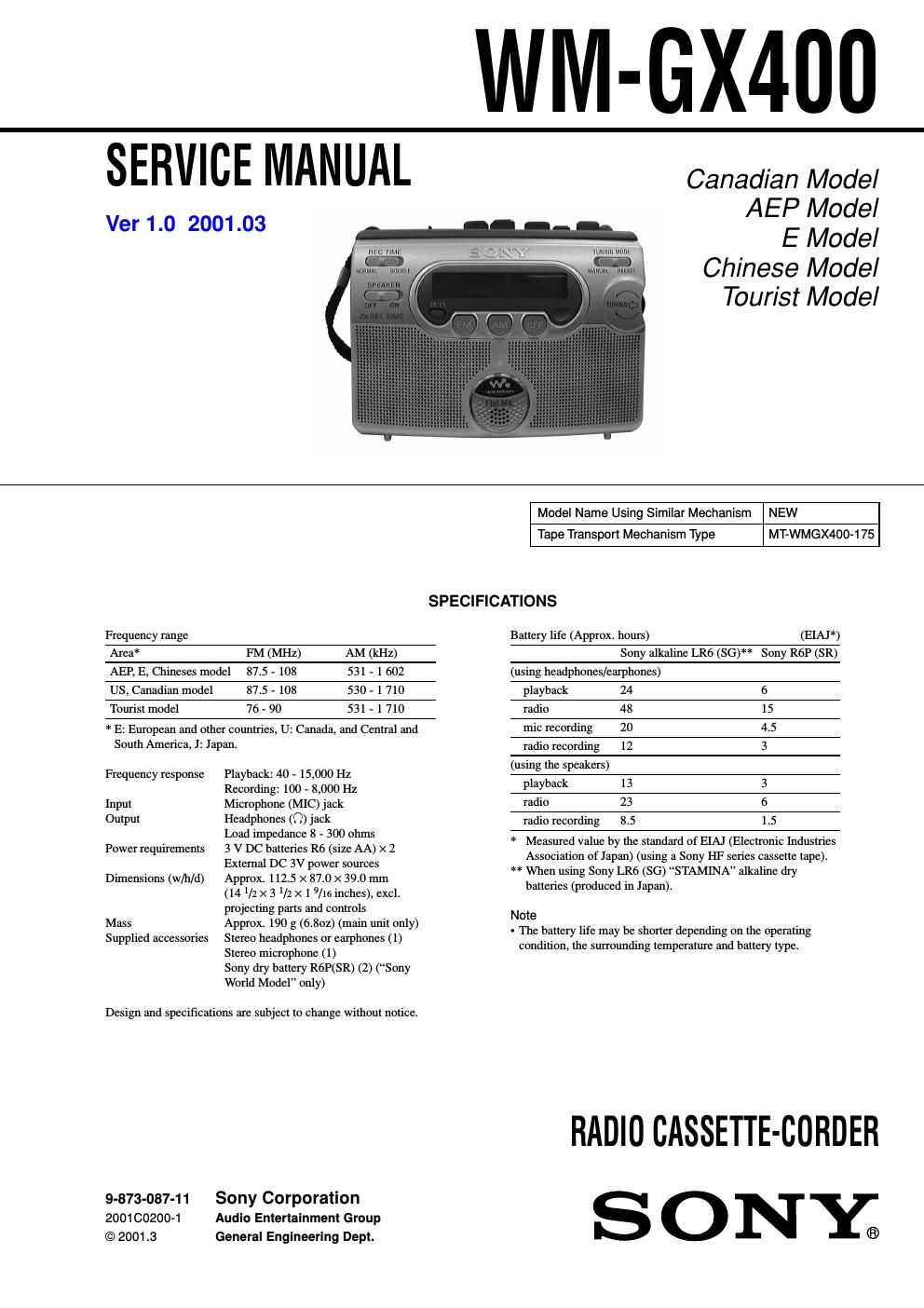

Page 1

WM-GX400

SERVICE MANUAL

Ver 1.0 2001.03

nEc ME

Canadian Model
AEP Model

E Model
Chinese Model
Tourist Model

quiNh mini

Frequency range

Model Name Using Similar Mechanism NEW
Tape Transport Mechanism Type MT-WMGX400-175

SPECIFICATIONS

Battery life (Approx. hours) (EIAJ*)

Area* FM (MHz) AM (kHz) Sony alkaline LR6 (SG)** Sony R6P (SR)
AEP, E, Chineses model 87.5 - 108 531 - l 602 (using headphones/earphones)
US, Canadian model 87.5 - 108 530 - l 710 playback 24 6
Tourist model 76 - 90 531 - l 710 radio 48 15
* E: European and other countries, U: Canada, and Central and mic recording 20 4-5
South America, J: Japan. radio recording 12 3
(using the speakers)
Frequency response Playback: 40 - 15,000 Hz
Recording: 100 - 8000 Hz Playbad 13 3
Input Microphone (MIC) jack radio 23 6
Output Headphones (0) jack radio recording 8.5 1.5
. mad Palm. 8 ' 30.0 0th * Measured value by the standard of EIAJ (Electronic Industries
Power requirements 3 V DC batteries R6 (Size AA) X 2 . . . .
External DC 3V ower sources Association of Japan) (using a Sony HF series cassette tape).
. . p ** When using Sony LR6 (SG) STAMINA alkaline dry
Dimensions (w/li/d) Approx. 1 12.5 X 87.0 X 39.0 mm batteries ( roduced in la an)
(14 1/2 x 3 1/2 x 1 9/16 inches), excl. p p '
projecting pans and controls Note
Mass Approx. 190 g (6.802) (main unit only)

Supplied accessories

Stereo headphones or earphones (1)
Stereo microphone ( 1)

Sony dry battery R6P(SR) (2) (Sorry
World Model only)

Design and specifications are subject to change without notice.

9-873-087-11
200100200-1
© 2001 .3

Sony Corporation
Audio Entertainment Group
General Engineering Dept.

- The battery life may be shorter depending on the operating
condition, the surrounding temperature and battery type.

RADIO CASSETTE-BORDER
S O NY®
