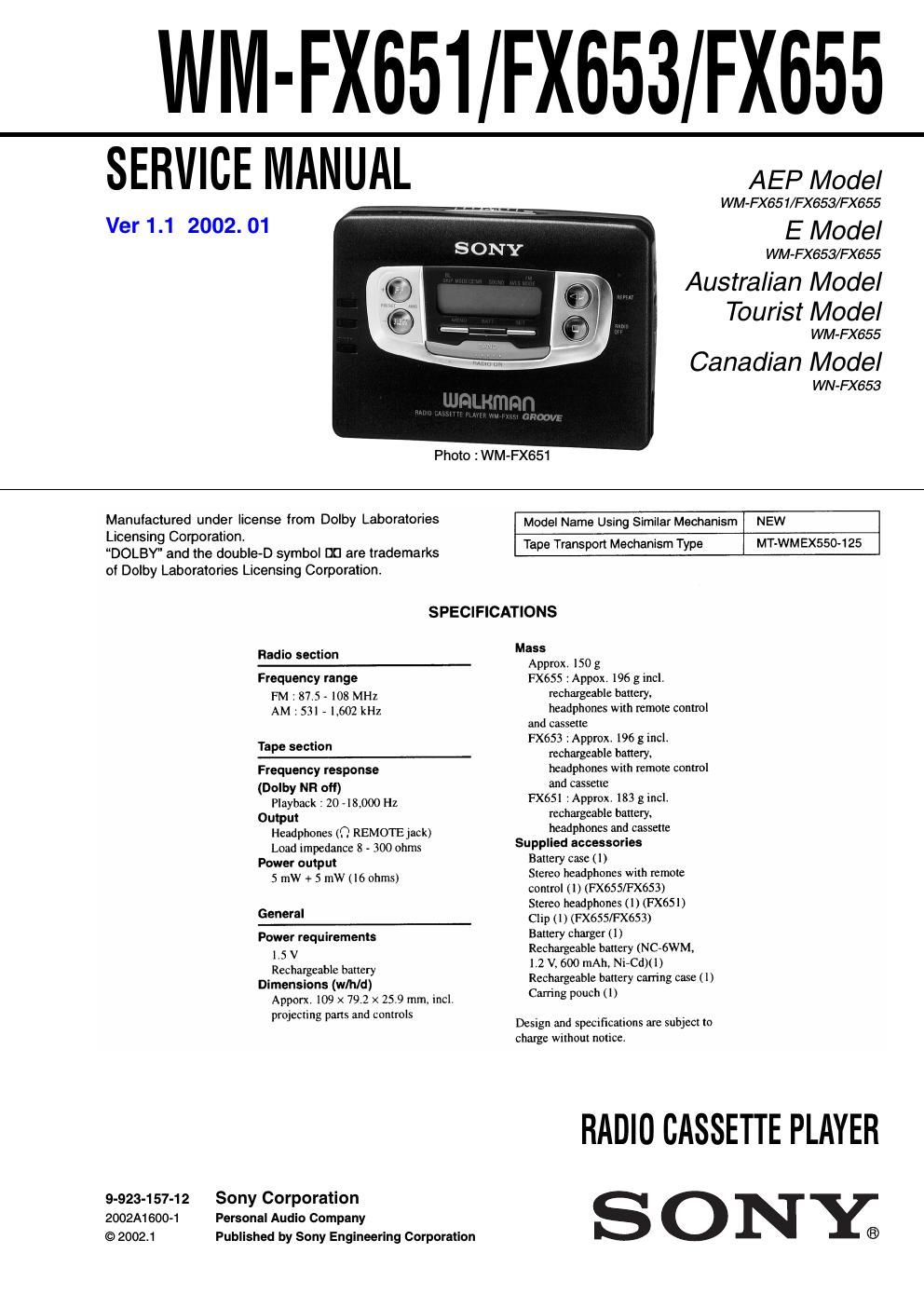

Sony wm fx 653 service manual
This is the 28 pages manual for sony wm fx 653 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony wm fx 653 service manual (Ocr-read)
Page 1
- 2 - TABLE OF CONTENTS Flexible Circuit Board Repairing - Keep the temperature of the soldering iron aroud 270˚ C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. Specification ················································································· 1 1. GENERAL ·········································································· 3 2. SERVICE NOTE ······························································· 3 3. DISASSEMBLY 3-1. Case Assy Removal ······················································· 4 3-2. Tuner Board Removal ··················································· 4 3-3. Audio Board Removal ··················································· 5 3-4. Cassette Lid Assy Removal ··········································· 5 3-5. Mechanism Deck Removal ··········································· 6 4. MECHANICAL ADJUSTMENT ·································· 7 5. ELECTRICAL ADJUSTMENT ···································· 7 6. EXPLANATION OF IC TERMINALS ························· 9 7. DIAGRAMS 7-1. Printed Wiring Boards (Tuner Section) ······················· 11 7-2. Schematic Diagram (Tuner Section) ··························· 15 7-3. Schematic Diagram (Audio Section) ··························· 18 7-4. Printed Wiring Board (Audio Section) ························ 21 8. EXPLODED VIEWS 8-1. Cabinet Section ··························································· 27 8-2. Audio, Tuner Board Section ········································ 28 8-3. Mechanism Section (MT-WMEX550-125) ················· 29 9. ELECTRICAL PARTS LIST ······································· 30
Page 2
- 3 - SECTION 1 GENERAL - LOCATION OF CONTROL SECTION 2 SERVICE NOTE - Regarding the method of adjustment and voltage check, perform sections 3-1 and 3-2 of the DISASSEMBLY, and attach the JIG to the AUDIO board as shown below. Screw (M1.4 × 5.0)Screw (M1.4 × 5.0) TUNER board Screw (M1.7 × 4.0) Screw (M1.4 × 5.0)JIG AUDIO board 1 !¢ 2 4 5 6 3 9 ! 08!£ !!` 7 1 OPEN knob 4 TUNING + button 6 ENTER button 7 /REPEAT button 8 p /RADIO OFF button 9 MENU button 0 SET button ! BAND button !` VOLUME knob ! HOLD knob !¢ Display window !£ 2 REMOTE jack 5 TUNING – button 2 PRESET + /AMS FF button 3 PRESET – /AMS REW button
