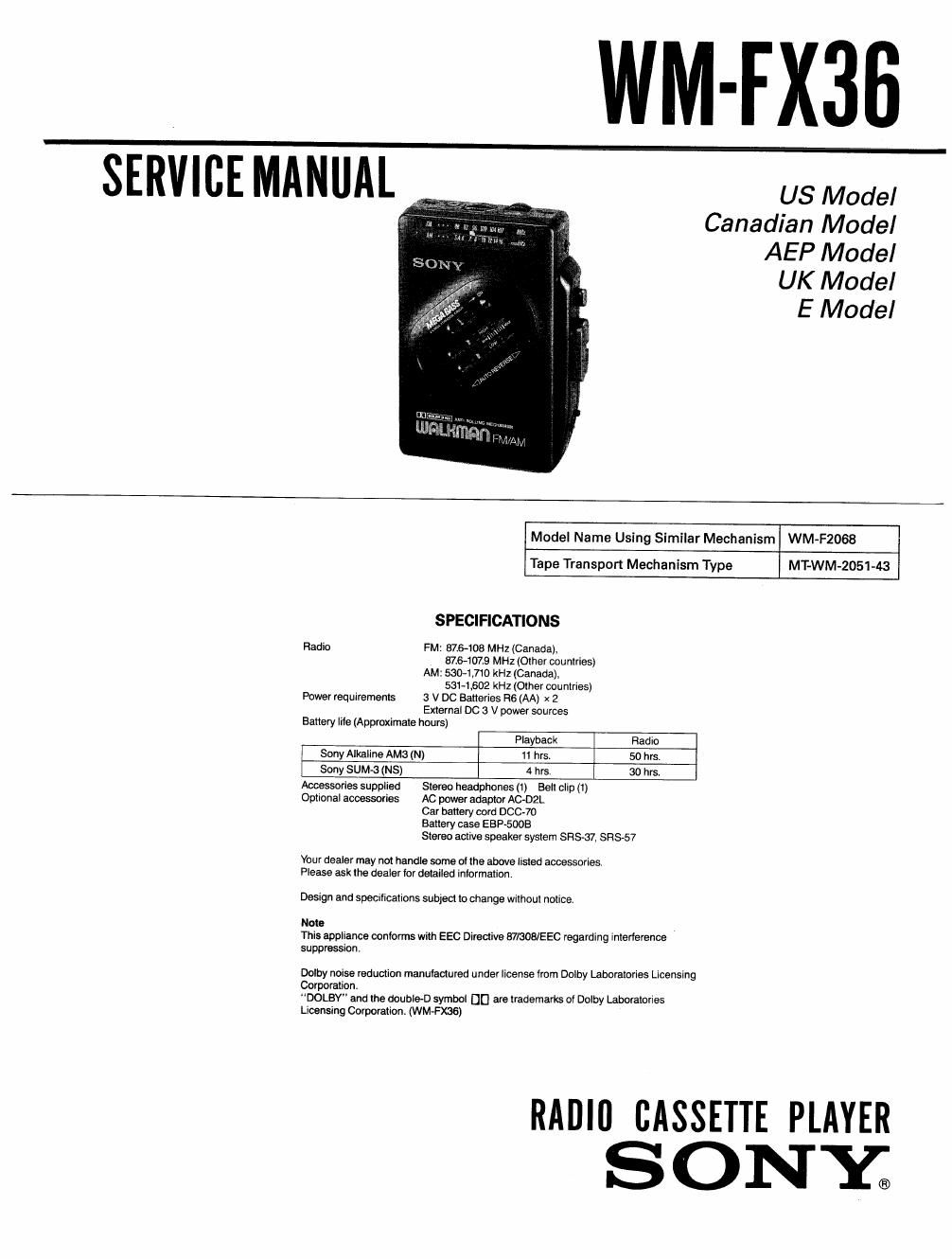

Page 1

WM-FX36

SERVICEMANUAL _ V _ USModel

Canadian Model
AEP Model

UK Model

E Model

Model Name Using Similar Mechanism WM-F2068

Tape Transport Mechanism Type MT-WM-2051-43

SPECIFICATIONS

Radio FM: 875-105 MHZ (Canada),
826-1078 MHz (Other countries)
AM: 530-1710 kHz (Canada).
531-1 .602 kHz (Other countries)
Power requirements 3 V DC Batteries R6 (AA) x 2
External DC 3 V power sources
Battery life (Approximate hours)

Playback Radio
Sony Alkaline AMS (N) 11 hrs. 50 hrs.
Sony SUM>8 (NS) 4 hrs. 30 hrs.

Accessories supplied Stereo headphones (1) Bell clip (1)
Optional accessories AC power adaptor AC-DZL
Car battery cord DOC-70
Battery case EBPéOOB
Stereo active speaker system SRS37. SRS-57

Your dealer may not handle some at the above listed accessories.
Please ask the dealer for detailed information.

Design and specifications subjec1 to change without notice.

N019

This appliance conforms with EEC Directive 87/308/EEC regarding interierence
suppression.

Dolby noise reduction manufactured under license lrom Dolby Laboratories Licensing
Corporahon.

DOL " and the double-D symbol DU are trademarks oi Dolby Laboratories
Licensing Corporation. (WM-FX36)

RAlilfl CASSETTE PLAYER
SONY.

Page 2

WM-FX36

SECTION 1
GENERAL

Flexible Circuit Board Repairing
-Keep the temperature of the soldering iron around
270C during repairing.
-Do not touch the soldering iron on the same
conductor of the circuit board (within 3 times).
-Be careful not to apply force on the conductor when
soldering or unsoldering.

Notes on Chip Component Replacement
vNever reuse a disconnected chip component.
-Notice that the minus side of a tantalum capacitor
may be damaged by heat.
