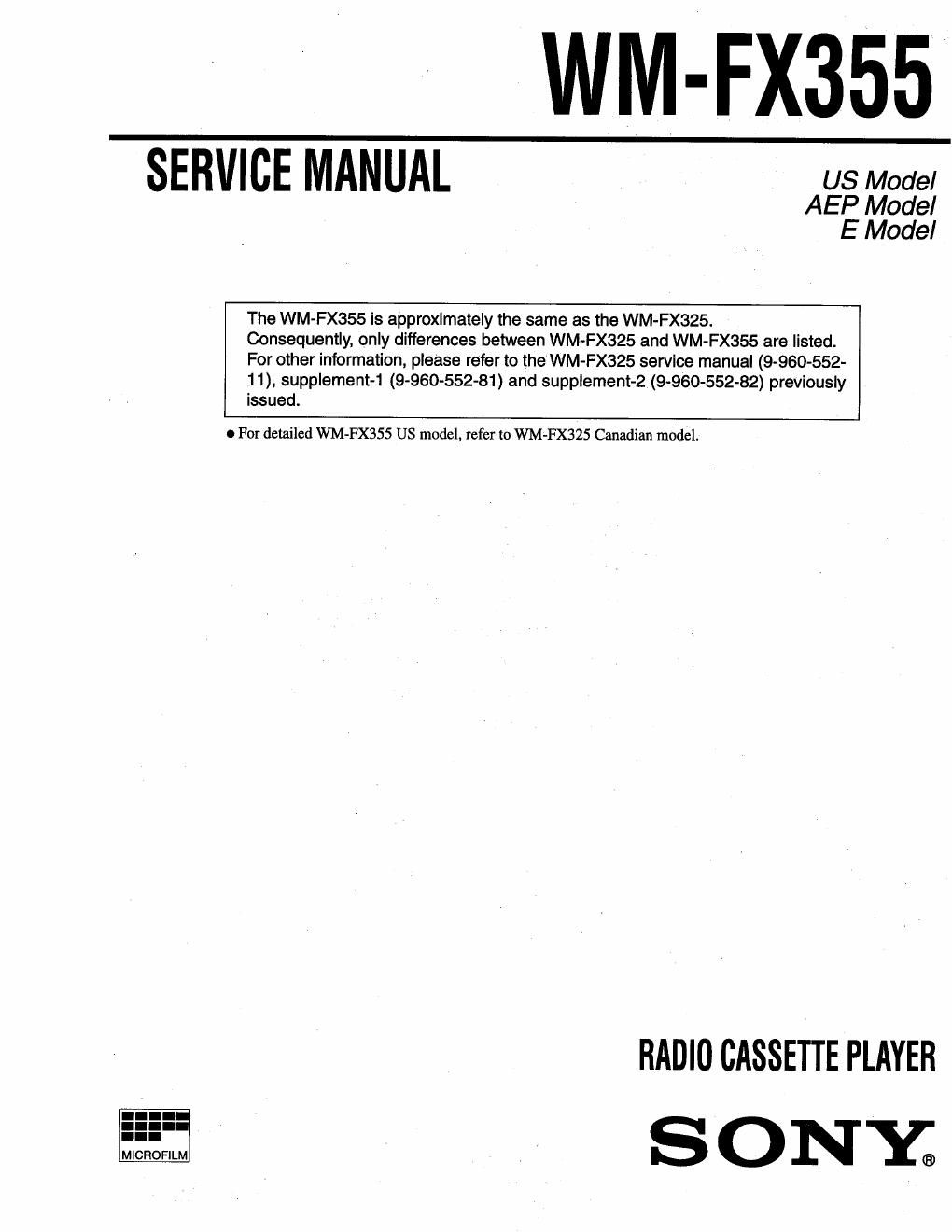

Page 1

W_M-_FX3_5§

TERVICEMAIWAL' WM

AEP Model
E Model

The WM-FX355 is approximately the same as the WM-FX325.
Consequently, only differences between WM-FX325 and WM-FX355 are listed.
For other information, please refer to the WM-FX325 service manual (9-960-552-

11), supplement-1 (9-960-552-81) and supplement-2 (9-960-552-82) previously
issued.

o For detailed WM«FX355 US model, refer to WM~FX325 Canadian model.

RADIO CASSETTE PLAYER
S ONY;

Page 2

WM-FX355

9-923-1 25-1 1

DIFFERENT PARTS LIST

NOTE :

0 Items marked * are not Stocked since they are . Abbreviation
seldom required for routine service, Some delay EE 5 E351 _EU°P_ean
should be anticipated when ordering these items. EA 3 saUd' Arabla

EXPLODED VIEWS

Ref. No. PM No.

54 X-3373066-1
54 X-3373-067-1
54 X~3373~0684
54 X-3373-553-1

Description Remark

HOLDER (CF-B) SUB ASSY (AEP, E)
HOLDER (CF-B) SUB Assv (EA)
HOLDER (CF-B) SUB ASSY (EE)
HOLDER (CE-W/RO) SUB ASSY (US)

ACCESSORIES & PACKING MATERIALS

'

RSI. NO. Part NOT

3-008-925-01
3-008-926-01
3-008-943-01
3-008-944-01
3-858-340-11
3-858-340-21

****

3-858-340-31

3-858-340-41

3-858-340-51

8-953-156-91

Personal AW Product Company

Description Remark

CUSHION (UPPER) (US)
CUSHION (LOWER) (US)
INDIVIDUAL CARTON (AEP, EE)
INDIVIDUAL CARTON (E. EA) .
MANUAL, INSTRUCTION (ENGLISH, FRENCH) (US)
MANUAL, INSTRUCTION (ENGLISH, FRENCH. GERMAN, ITALIAN,
DUTCH, SWEDISH, SPANISH. PORTUGUESE) (AEP, EE)
MANUAL, INSTRUCTION (POLISH, CZECH, GREEK, TURKISH)
(AEP)
MANUAL, INSTRUCTION (RUSSIAN, HUNGARIAN, BULGARIAN)
(EE)
MANUAL, INSTRUCTION (ENGLISH, SPANISH, CHINESE, KOREAN)
(E, EA)
HEADPHONE MDR~025 SET (US)

Sony Corporatlon

-2-

97A0277-1
Primed In Japan 0 1997.1
