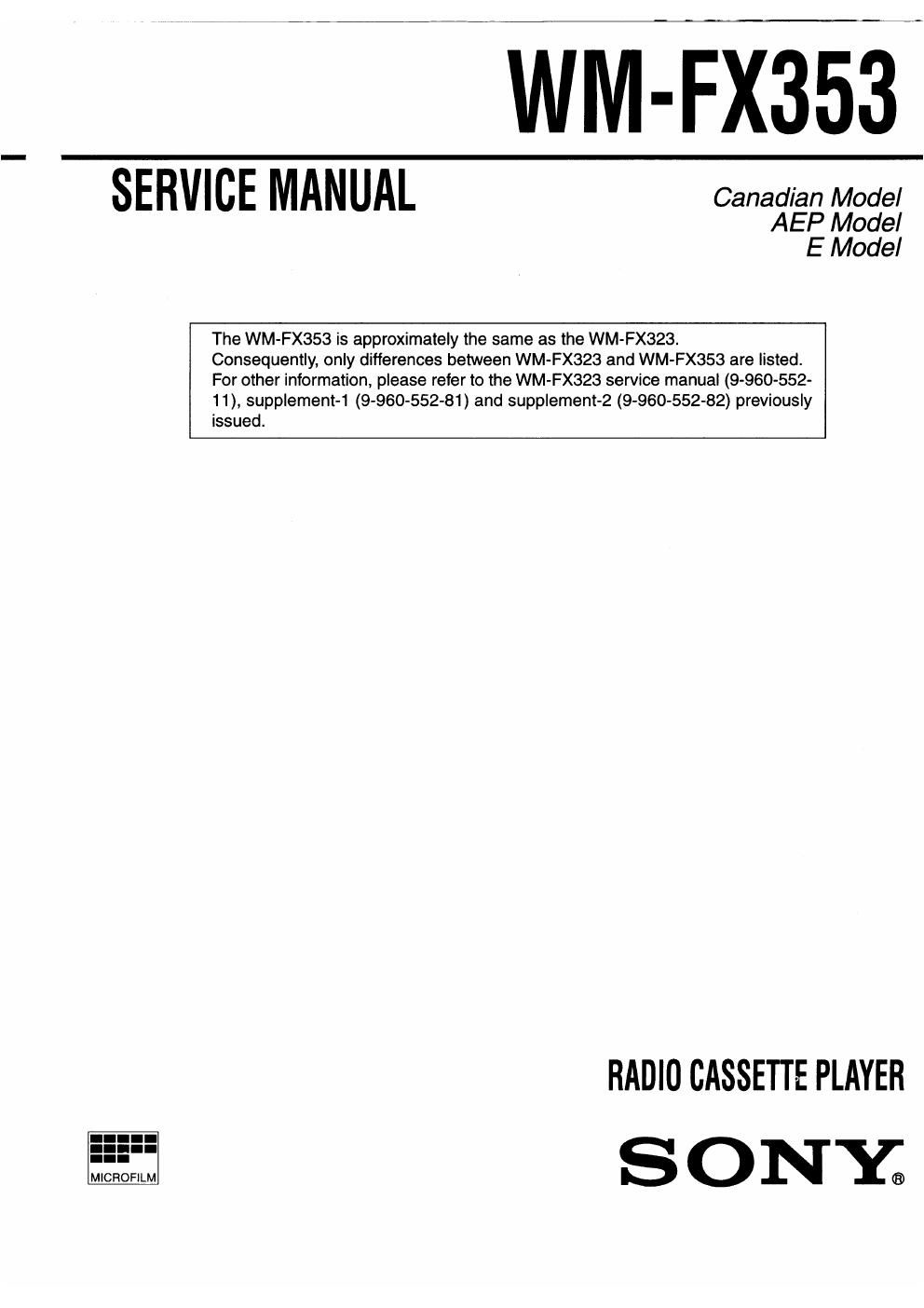

WM-FX353

SERVICE MANUAL Canadian Model

AEP Model
E Model

The WM-FX353 is approximately the same as the WM-FX323.
Consequently, only differences between WM-FX323 and WM-FX353 are listed.
For other information, please refer to the WM-FX323 service manual (9-960-552-

11), supplement-1 (9-960-552-81) and supplement-2 (9-960-552-82) previously
issued.

RADIO CASSETTE PLAYER
S 0 NY;

MICROFILM

Page 2

WM-FX353

9-923-126-11

DIFFERENT PARTS LIST

NOTE :
0 items marked * are not siocked since rhey are 0 Abbreviation
seldom required for routine service. Some delay CN0 1 Canadian IT 1 Italian
should be anticipated when ordering Ihese iIems, EE : Easi European EA : Saudi Arabia
EXPLODED VIEWS
Page 20
Ref. No, Fan No. Description Remark
1 X-3373-Z771 CABINET (REAR) SUB ASSY (CND, E, EA)

1 X-3373-278-I

Ref. NO. Part No.

54 X-3373-062-1
54 X-3373-063-1
54 X-3373-064-1
54 X-3373-065-1

CABINET (REAR) SUB ASSV (AEP, IT, EE)

Description Remark

HOLDER (CF- B) SUB ASSY (CND)
HOLDER (CF- B) SUB Assv (AEP, E)
HOLDER (CF- B) SUB ASSY (IT, EA)
HOLDER (CF-) a) SUB ASSY (EE)

ACCESSORIES 8r PACKING MATERIALS

Ref. No. Pan NOT

1-505-521-11
3-008-925-01
3-008-926-01
3-008-938-01
3-008-939-01
3-858-340-11
3-858-340v21

{*K%

3-858-340-31

3-858-340-41

3-858-340-51

Personal A&V Products Company

Description Remark

HEADPHONE (MDR-Ozs) (CND)
CUSHION (UPPER) (CND)
CUSHION (LOWER) (CND)
INDIVIDUAL CARTON (AEP, IT, EE)
|ND|V|DUAL CARTON (E, EA)
MANUAL, INSTRUCTION (ENGLISH. FRENCH) (CND)
MANUAL. INSTRUCTION (ENGLISH. FRENCH. GERMAN, ITALIAN,
DUTCH, SWEDISH, SPANISH, PORTUGUESE) (AEP, IT. EE)
MANUAL, INSTRUCTION (POLISH. CZECH, GREEK, TURKISH)
(AEP)
MANUAL, INSTRUCTION (RUSSIAN, HUNGARIAN, BULGARIAN)
(EE)
MANUAL, INSTRUCTION (ENGLISH, SPANISH, CHINESE, KOREAN)
(E, EA)

Sony Corporation

-2-

97A0273»1
Printed in Japan (C) 1997.1

Published by Quality Englneerln Dept.

(Sh baura)
