Sony wm fx 277 service manual
This is the 22 pages manual for sony wm fx 277 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony wm fx 277 service manual (Ocr-read)

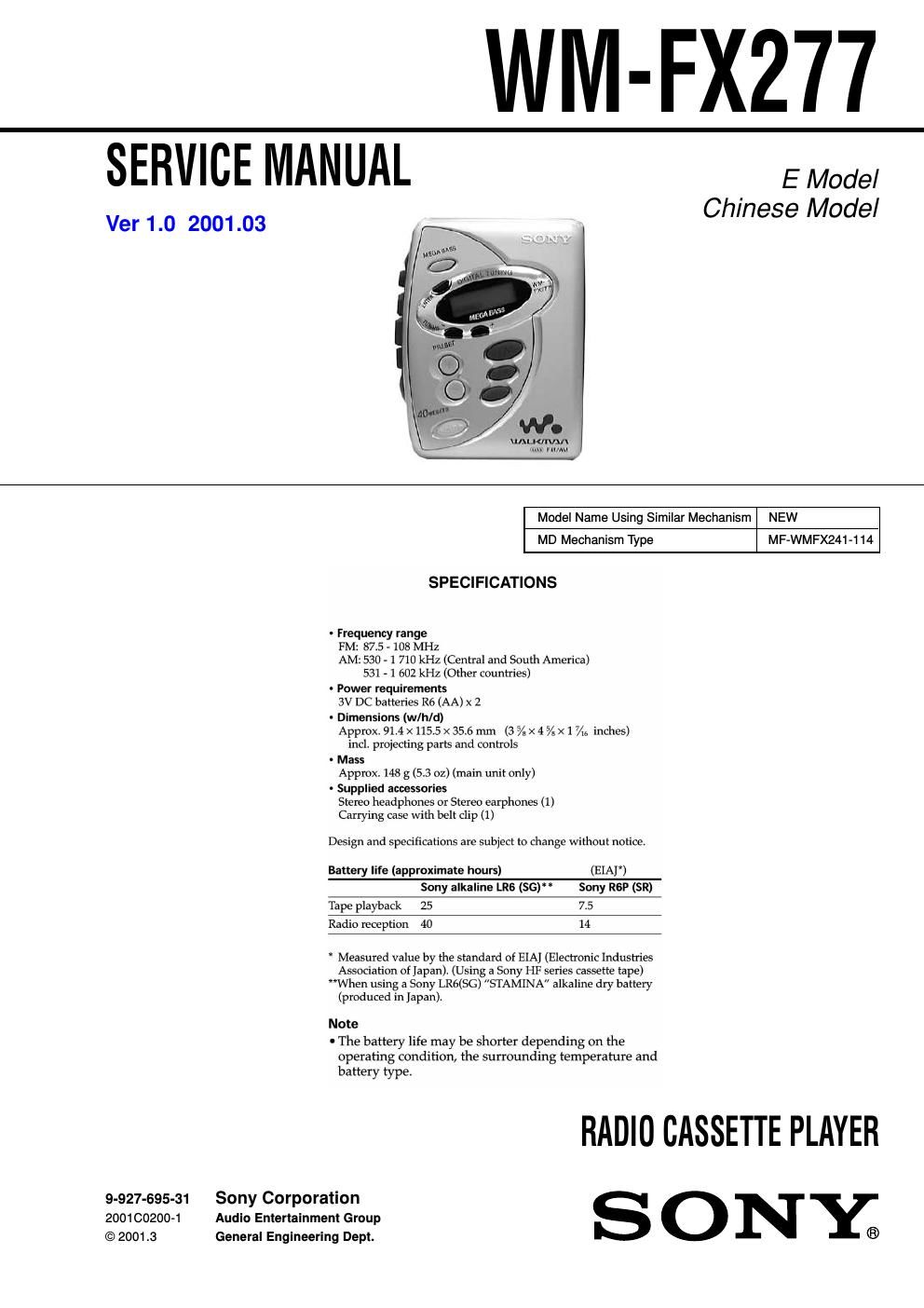

Page 1
2 WM-FX277 Specifications ........................................................................... 1 1. SERVICING NOTE ...................................................... 3 2. GENERAL ...................................................................... 3 3. DISASSEMBLY 3-1. Cabinet (Front) ........................................................... 4 3-2. Main Board ................................................................. 4 3-3. Mechanism Deck ........................................................ 5 3-4. Belt, Capstan/reel Motor (M601), Magnetic Head (Playback) (HP601) ........................... 5 3-5. Cassette Holder ........................................................... 6 4. ADJUSTMENTS 4-1. Mechanical Adjustments ............................................ 7 4-2. Electrical Adjustments ................................................ 7 5. DIAGRAMS 5-1. Explanation of IC Terminals ..................................... 10 5-2. Block Diagram ........................................................... 11 5-3. Printed Wiring Boards – Main Section (Side A) – ... 12 5-4. Printed Wiring Boards – Main Section (Side B) – ... 13 5-5. Schematic Diagram ................................................... 14 6. EXPLODED VIEWS 6-1. Cabinet Section ......................................................... 17 6-2. Mechanism Deck Section (MF-WMFX241-114) ..... 18 7. ELECTRICAL PARTS LIST ................................... 19Flexible Circuit Board Repairing - Keep the temperature of the soldering iron around 270°C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be dam- aged by heat. TABLE OF CONTENTS
Page 2
3 WM-FX277 SECTION 1 SERVICING NOTE In case of adjusting Tape Speed, you can easily to adjust RV601 by removing 7 claws on Window (LCD) and itself as shown in the figure. 1.Insert the precision screwdriver (Cover a point by cloth) in to the slit at claw. 2.Remove the window(LCD). Note: Be careful not to damage claws. Claws Window(LCD) Claws Claws RV601 SECTION 2 GENERAL This section is extracted from instruction manual. LOCATION AND FUNCTION OF CONTROLS
