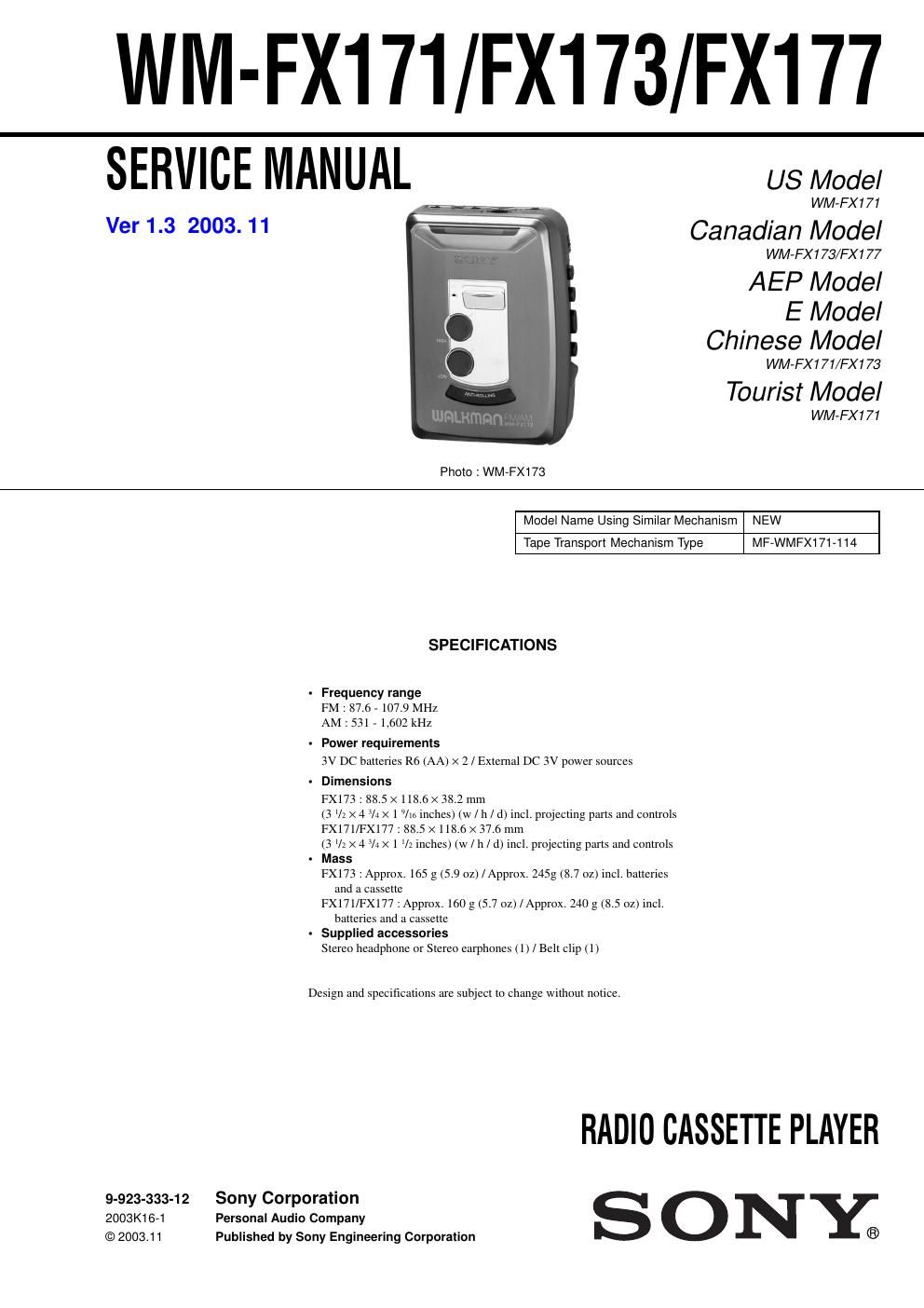

Sony wm fx 177 service manual
This is the 32 pages manual for sony wm fx 177 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony wm fx 177 service manual (Ocr-read)
Page 2
Ñ 3 Ñ SECTION 2 DISASSEMBLY Note :Follow the disassembly procedure in the numerical order given. BCDE F G H I J K L A Cassette lid Cabinet (front) assy 1 Two screws [screw (B 1.7 ´ 9), tapping] 2-1. CABINET (FRONT) ASSY 2 Insert the precision screwdriver (1.4 mm flat-blade) into the slit at claw A and release the claw. 3 Remove the cabinet (front) assy. (Release all claws B to L in alphabetical order.) · This set can be disassembled in the order shown below. 2-1. CABINET (FRONT) ASSY 2-2. MAIN BOARD 2-3. CASSETTE LID2-4. MECHANISM DECK 2-5. BELT, MOTOR (REEL/CAPSTA N)
