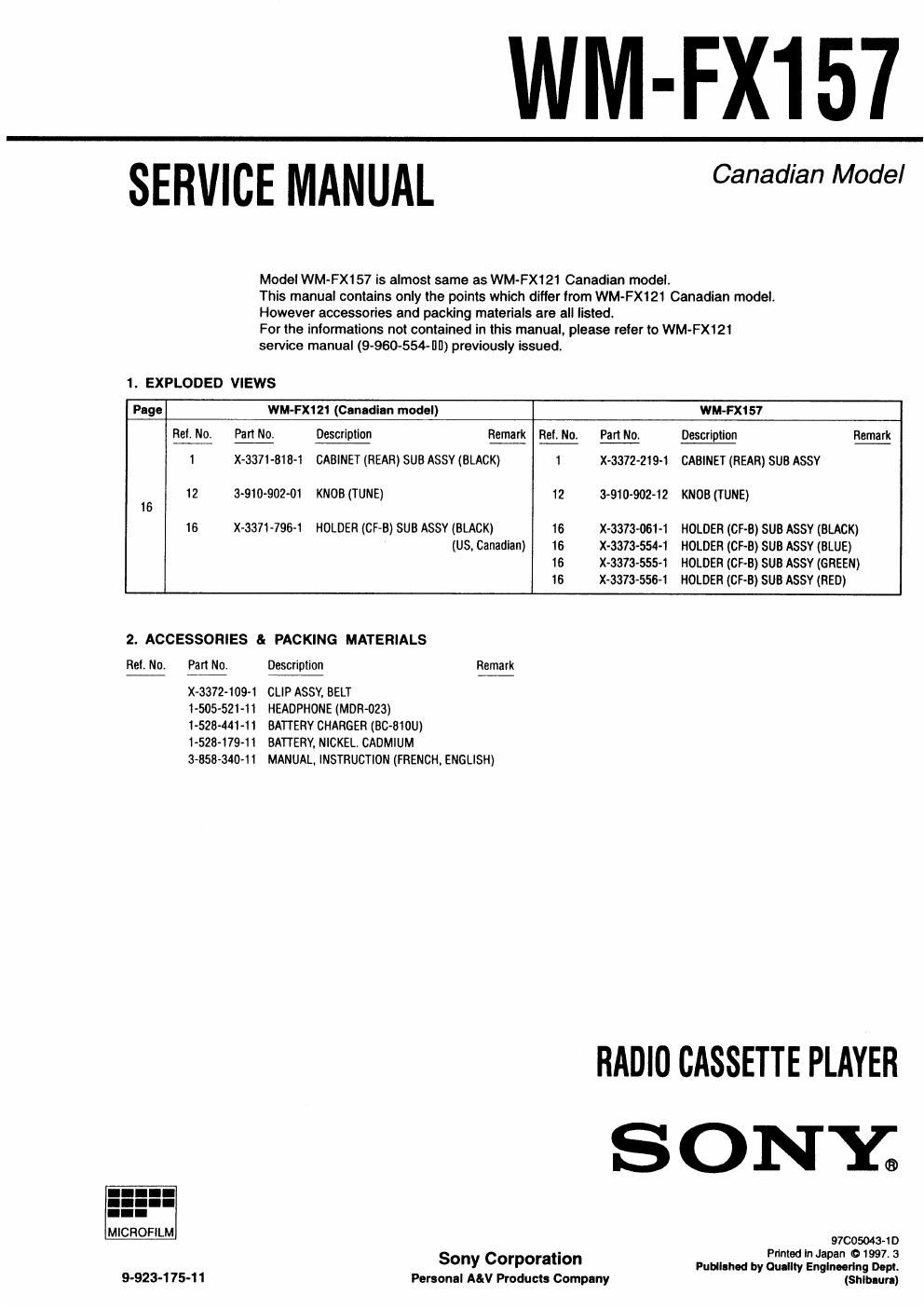

Page 1

WM-FX157

SERVICE MANUAL Canadian Model

ModeI WM-FX157 is almost same as WM-FX121 Canadian model.

This manual contains only the points which differ from WM-FX121 Canadian model.
However accessories and packing materials are all listed

For the informations not contained in this manual, please refer to WM-FX121
service manual (9-960-554-Illl) previously issued.

1. EXPLODED VIEWS

Page WM-FX121 (Canadian model) WM-FX1 57
Rel. Not Pan No. Description Remark Ref, No. Pan No, Description Remark
1 X-3371-818-1 CABINET (REAR) SUB ASSY (BLACK) 1 X-3372-219-1 CABINET (REAR) SUB ASSY
12 3-910-902~01 KNOB (TUNE) 12 3-910-902-12 KNOB (TUNE)
16
16 X-3371-796~1 HOLDER (CF-B) SUB ASSY (BLACK) 16 X-3373-061v1 HOLDER (CF-B) SUB ASSY (BLACK)
(US, Canadian) 16 X-3373-554-1 HOLDER (CF-B) SUB ASSY (BLUE)
16 x-337a-555-1 HOLDER (CF-B) SUB ASSY (GREEN)
16 X-3373-556-1 HOLDER (CF-B) SUB ASSY (RED)

2. ACCESSORIES a PACKING MATERIALS
ReItNo. Part No. Description Remark

X-3372-109-I CLIP ASSY, BELT

I-505<521-11 HEADPHUNE (MDR-OZS)

1-528-441-11 BATTERV CHARGER (BC-81W)

1628-17941 BATTERY, NICKEL. CADMIUM

3»858»340~II MANUAL, INSTRUCTION (FRENCH. ENGLISH)

RADIO CASSE EPLAYER
S 0 NY;

9700503-1 D
Printed In Japan 0 1997. 3

I
I
Sony Corporatlon Publlnmd Irv OuaIIty Englnndng Dept.

9-923-175-11 Personal AaV Products Company (Shlhaura)

Page 2

wM_-Fx157

S ONYL Canadian Model

SERVICE MANUAL

CORRECTION-1

Correct your service manual as shown below.

': indicate corrected portion.

Page INCORRECT CORRECT
Ref No. Fag N9. Degcfmign . Part N9. W
1 1-528-441-11 BAI'I'ERY CHARGER (BC-81W) 1- -7 -1 BATTERY CHARGER (BC-8100)
(WM700507)
97D05043-1D
Sony Corporation Printed in Japan 0 1997. 4

Published 17y Quality Englneorlng Dept
9-923-1 75-91

Personal A a. V Products Company (Shibaura)
