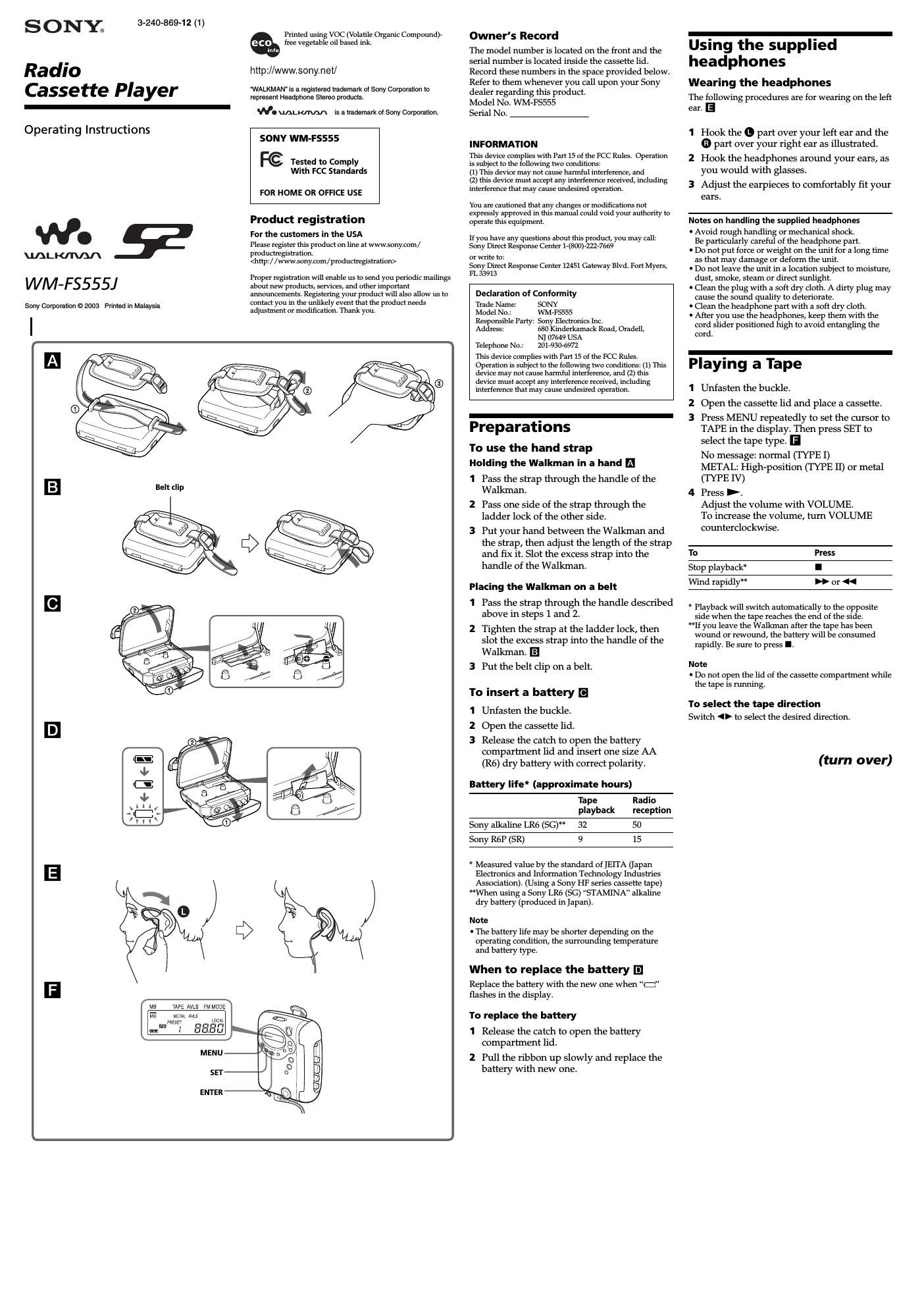

Page 1

3-240-869-12 (1)

SONY»

Radio
Cassette Player

Operating Instructions

We

MLW

WM-F5555J

Sony Corporation © 2003 Primed in Malaysia

Printed using voc (Volatile Organic Compound}
free vegetable oil based ink.

http://wwwsonynet/

WALKMAN is a registered trademark ol Sony Corporation to
represent Headphone Stereo products.

No \mLKInAA is a trademark of Sony Corpolation.

SONY WM-F5555
FCC: Tested to Comply

With FCC Standards

FOR HOME OR OFFICE USE

Product registration

For the customers in the USA

Please register this product on Line at wwwsonycom/
productregistration.

Proper registration will enable us to send you periodic mailings
about new products, services, and other important
announcements. Registering your product will also allow us to
contact you in the unlikely event that the product needs
adjustment or modification. Thank you.

TAPE AVLS FM MODE

Owner's Record

The model number is located on the front and the
serial number is located inside the cassette lid.
Record these numbers in the space provided below.
Refer to them whenever you call upon your Sony
dealer regarding this product.

Model No. WMrFSS55

Serial No.

INFORMATION

This device complies with Part 15 ot the FCC Rules. Operation
is subject to the tollowing two condihons:

(1) This device may not cause harmful interference, and

(2) this device must accept any interterence received, including
interference that may cause undesired operation.

You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority to
operate this equipment.

It you have any questions about this product, you may call:
Sony Direct Response Center 1e(300)e222e7sri9

0! write to:

Sony Direct Response Center 12451 Gateway Blvd. Fort Myers,
FL 33913

Declaration of Conformity

Trade Name: SONY

Model No.: WMVFSSSS

Responsible Party: Sony Electronics Inc.

Address: 680 Kinderkamack Road, Oradell,
NJ 07649 USA

Telephone No.: 201793076972

This device complies with Part 15 of the FCC Rules.
Operation is subject to the tollowing two conditions: (1) This
device may not cause harmful interterence, and (2) this
device must accept any interterence received, including
interterence that may cause undesired operation.

Preparations

To use the hand strap
Holding the Walkman in a hand

1 Pass the strap through the handle of the
Walkmanr

2 Pass one side of the strap through the
ladder lock of the other side

3 Put your hand between the Walkman and
the strap, then adjust the length of the strap
and fix it. Slot the excess strap into the
handle of the Walkman.

Placing the Walkman on a belt

1 Pass the strap through the handle described
above in steps 1 and 2,

2 Tighten the strap at the ladder lock, then
slot the excess strap into the handle of the
Walkmanr E]

3 Put the belt clip on a belt.

To insert a battery

1 Unfasten the buckle.
2 Open the cassette lid.

3 Release the catch to open the battery
compartment lid and insert one size AA
(R6) dry battery with correct polarity,

Battery life (approximate hours)

Tape Radio
playback reception
Sony alkaline LR6 (SG)** 32 50
Sony R6P (SR) 9 15

" Measured value by the standard of JEITA (Japan
Electronics and Information Technology Industries
Association). (Using a Sony HF series cassette tape)

When using a Sony LR!) (SG) STAMlNA alkaline
dry battery (produced in Japan).

Note

- The battery life may be shorter depending on the
operating condition, the surrounding temperature
and battery type.

When to replace the battery 5]

Replace the battery with the new one when E
flashes in the display.
To replace the battery

1 Release the catch to open the battery
compartment lid

2 Pull the ribbon up slowly and replace the
battery with new one.

Using the supplied
headphones

Wearing the headphones

The following procedures are for wearing on the left
ear.

1 Hook the 0 part over your left ear and the
9 part over your right ear as illustrated

2 Hook the headphones around your ears, as
you would with glasses,

3 Adjust the earpieces to comfortably fit your
ears,

Notes on handling the supplied headphones

- Avoid rough handling or mechanical shock.
Be particularly careful of the headphone part.

- Do not put force or weight on the unit for a long time
as that may damage or deform the unit.

- Do not leave the unit in a location subject to moisture,
dust, smoke, steam or direct sunlight.

- Clean the plug with a soft dry cloth. A dirty plug may
cause the sound quality to deteriorate.

- Clean the headphone part with a soft dry cloth.

O After you use the headphones, keep them with the
cord slider positioned high to avoid entangling the
cord.

Playing a Tape

1 Unfasten the buckle.
Open the cassette lid and place a cassette

N

3 Press MENU repeatedly to set the cursor to
TAPE in the display. Then press SET to
select the tape type.
No message: normal (TYPE I)
METAL: High-position (TYPE 11) or metal
(TYPE IV)

4 Press >.
Adjust the volume with VOLUME.
To increase the volume, turn VOLUME
counterclockwise

To Press
Stop playback" I
Wind rapidly » or «

* Playback will switch automatically to the opposite
side when the tape reaches the end of the side.

if you leave the Walkman after the tape has been
wound or rewound, the battery will be consumed
rapidly. Be sure to press I.

N ote
- Do not open the lid of the cassette compartment while

the tape is running.

To select the tape direction
Switch <> to select the desired direction.

(turn over)

Page 2

TAPE AVLS FM MODE

-.-

MENU -

.'.l
SET - ..
E
l
ENTER '

Rubber rap HOLD

\ TVIWEATHER

FM/AM
Air outlet

(P

MENU - ° Q «

SET _ pii
ENTER _ »

TUNING+I-
PRESET +l-
RADIO OFF
VOLUME"

* There is a tactile dot beside VOLUME on the main unit to
show the direction to turn up the volume.
The button has a tactile dot.

This warranty is valid only n the United States.

LIMITED WARRANTY

Sony Electronics Inc. ("Sony") warrants this Product (including any accessories) against detects in material or
workmanship asiollows:

l LABOR. For a period oiso days irom the date oi purchase, ilthis Product is detevmmed to be defective,
Sonywtll repair or replace the Product, at its option, at no charge, or pay the labor charges to any Sony author
rized service (acility After the Warranty Period, you must pay for all labor charges.

2 PARTS' in addition, Sony Will supply, at no charge, new or rebuilt replacements in exchange icr defective
parts lora period olone (1) year. Alterso days lrom the date at purchase, laborior removal and installation is
available lrom Sony authorized service iacilities or a Sony Service Cenler at your expense.

To obtain warranty service, you musttakethe Product, or deliverthe Productireight prepaid, in either its original
packaging or packaging affording an equal degree ol protection, to any authorized Sony service lacility

This warranty does not cover customer instruction, installation, set up adlustments or signal reception probr
iems.

This warranty does not cover cosmetic damage ordamage due to acts olciod, accident, misuse, abuse, negll'r
gence, commercial use, or moditication ol, or to any pan oi the Product, including the antenna. This warranty
does not cover damage due to improper operation or maintenance, connection to improper voltage supply, or
attempted repair by anyone other than a iacility authorized by Sony to service the Product. This warranty does
not cover Products sold AS ls orWITH ALL FAULTS, or consumables (such as luses or batteries) This warranty
is valid only in the United States.

Proof of purchase in the form ota bill of sale or receipted invoice which ls evidence that the unit is within the
Warranty period must be presented to obtain warranty service

This warranty is invalid it the iactoiy applied serial number has been altered or removed irom the Product.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTV IS THE EXCLUSIVE REMEDY OF THE
CONSUMER SoNv SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
BREACH OF ANV EXPRESS OR IMPLIED WARRANTV ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIEc
ITED BY APPLICABLE LAW, ANY IMPLIED WARRANTV OE MERCHANTABILITV OR FITNESS FOR A PARTICUc
LAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION To THE DURATION OF THIS WARRANTV

Some states do not allowthe exclusion or limitation oi incidental orconseouential damages, or allow limitations
on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. In addition,
it you enter into a service contract wtth the Sony Partnership within so days otthe date ot sale, the limitation on
how long an implied warranty lasts does not applyto you. This warranty gives you specific legal rights, and you
may have other rights which vary from state to state

For your convenience, Sony Electronics inc. has established telephone numberslortreduently asked questions:

To locate the servicer or dealer nearest you, or tor service assistance or resolution or a service problem, or lor
product intormation oroperation, call:

Sony Direct Response Center
lrtaooirzzzrmaa
or write to
Sony Direct Response Center
12451 Gateway Blvd
Port Myers, FL 339m

For an accessory or pan not available from your authorized dealer, call

IrtaooMaBrsoNv (7669)

Llstening to the Radio

1 If the HOLD function is on, turn the HOLD
switch in the opposite direction of the
arrow to unlock the controls.

Make sure that the tape has stopped
completely.

2 Press TV / WEATHER or FM / AM to select
the desired band and to turn on the radio.

3 Press TUNING +/- to tune in to the
desired stationl Hold down TUNING +/-
for a few seconds to scan for Stations,

To turn off the radio
Press RADIO OFF.

To improve the broadcast reception

I For TV/WEATHERI FM: Extend the headphones/
earphones cord (antenna). If the reception is still
not good, press MENU repeatedly to set the cursor
in the display to FM MODE. Then press SET to
switch between LOCAL and none (DX) for best
reception. I, E

O For AM: Reorient the unit itself.

Presettlng Rad o Statlons

You can preset up to 40 radio stations, 7 for TV, 4 for
WEATHER, 24 for FM and 5 for AM.

Presetting Automatically Scanned
Stations

1 Press TV/WEATHER or FM/AM.

2 Press ENTER for more than 3 seconds.
Preset number 1 will flash in the display
and the Walkman Starts scanning the
stations from the lower frequencies and
stops for about 3 seconds when a station is
received

3 If you wish to preset the received station,
press ENTER while the preset number is
flashing,

The received station is preset on preset
number 1 and the unit starts scanning for
the next receivable station,

4 Repeat Step 3 until all receivable stations
are preset.

To stop scanning
Press RADIO OFF. The radio is turned off at the
same time.

Notes

0 If Stations are already Stored, the newly preset stations
replace the old ones when the above procedure iS
completed.

0 If Stations cannot be preset automatically, preset
Stations manually.

Presetting Stations Manually

1 Press TV/WEATHER or FM/AM.

2 Press ENTER.
The frequency digits and a preset number
flash in the display

3 While the frequency digits and the preset
number are flashing, tune in to a Station
you wish to Store using TUNING +/-, and
select a preset number using PRESET +/-.

4 While the frequency digits and the preset
number are flashing, press ENTER.

Notes

0 If you cannot complete step 3 or 4 while the
indications are flashing, repeat from step 2.

0 If a Station is already Stored, the new station replaces
the old one.

To cancel the stored station

Follow the procedure above and in step 3, press and
hold TUNING +/, until u. s c c" is displayed and
select the preset number you want to cancel using
PRESET +/m. Press ENTER while - c c - is flashing.

Playing the preset radio stations

1 Press TV/WEATHER or FM/AM.
2 Press PRESET + /-l

Uslng Other Functlons

Locking the controls

Turn the HOLD switch to the direction of the arrow
to lock the controls.

The HOLD function only locks the radio operation
buttons, MENU button and SET button.

Emphasizing bass sound

Press MENU repeatedly to set the cursor to ME in
the display. Then, press SET to turn MB (mega bass)
on. With each press, the indications change as
follows.

MB (mega bass) : emphasizes bass sound

No message: off (normal)

Notes

- If the sound iS distorted with the mode MB", turn
down the volume or Select normal mode.

- Bass emphasis may not show great effect if the
volume is turned up too high.

Protecting Your Hearing - AVLS
(Automatic Volume Limiter
System)

Press MENU repeatedly to set the cursor to AVLS in
the display. Then press SET to show AVLS".

The maximum volume is kept down to protect your
ears.

Precautlons
On battery

- Do not carry dry batteries with coins or other metallic objects.
it can generate heat it the positive and negative terminals ot
the batteries are accidentally contacted by a metallic object.

. When you are not going to use the Walkman tor a long time,
remove the battery to avoid any damage caused by battery
leakage and subsequent corrosion.

On handling

- Do not leave the unit in a location near heat sources, or in a
place subject to direct sunlight, excessive dust or sand,
moisture, rain, mechanical shock, or in a car with its windows
closed.

- We do not recommend the use ot tape longer than 90 riunutes.
They are very thin and tend to be stretched easily. Ttus may
cause malfunction of the unit or Sound deterioration.

- The LCD display may become hard to See or slow down when
using the urtit at high temperatures (above 40°C/104°F) or at
low temperatures (below 0°C/32"F) At room temperature, the
display will return to its normal operating condition.

0 If the unit has not been used for a long t1me, set it in the
playback mode to warm it up for a few minutes betore you
start using again.

On water resistance

- betone opening or closing the cassette lid, be sure to wipe cit
water, dust or sand on the exterior oi the Walkman. (The
Walkman is not waterresislant with the cassette lid open.)

- Since water in the headphones/earphones jack may cause
rust, cover it with the attached rubber cap when the
headphones/earphones are not in use.

- Since the Walkman is airtight, you may not be able to open the
cassette lid because ot sudden change in air pressure inside
the Walkman, which happens atter being transported on a
plane or moving from a warm place to a cold place. To open
the cassette lid see Troubleshooting.

- The supplied headphones/earphones are not meant to be
immersed in water or come in continuous contact with water.
it they are accidentally dropped into water or get wet, dry
them with a soft cloth, Never use an electric hair dryer.

. it the Walkman or the headphones /earphones are immersed
in salt water, be sure to wash them in noncrunning fresh water.
Never wash them under running water, and never use soap or
detergent.

- Any sand or dust on the rubber packing will prevent the
cassette lid from closing tightly and water may leak in. Brush
ott the dust once in a while.

- We recommend the packing to be changed every year.
Replacement packing is available at an authorized Sony
Service Facility

0n headphones/earphones
Road safety

Do not use headphones/earphones while driving, cycling or
operating any motorized vehicle it may create a traffic hazard
and is illegal in some areas. It can also be potentially dangerous
to play your headphones/earphones at high volume while
walking, especially at pedestrian crossings.

You should exercise extreme caution or discontinue use in
potentially hazardous situations.

Preventing hearing damage

Do not use headphones/earphones at high volume. Hearing
experts advise against continuous, loud and extended play. it
you experience a ringing in your ears, reduce volume or
discontinue use.

Caring for others

Keep the volume to a moderate level. This will allow you to
hear outside sounds and to be considerate to the people around
you.

On maintenance

- Clean the tape head and tape path using a cotton swab and
commercially available cleaning solvent after every 10 hours
tit use.

- To clean the exterior use a sott cloth slightly moistened in
water. Do not use alcohol, benzine or thinner

. Clean the headphones/earphones plugs periodically

Troubleshootlng

The display shows incorrect information.
- The battery is weak. Replace the battery with a new one.

The display and the operation are not normal.

0 Remove the battery for 30 seconds or more, and then insert it
again, It this does not solve the problem, remove the battery
and leave the unit without battery for 30 minutes or more, and
then insert it again. In this case, preset the stations again, Since
the preset stations are erased from the memory

The cassette lid cannot be opened.

- Open the rubber cap, then open the cassette lid. When the
cassette lid opens, remember to close the rubber cap to
prevent intnision of water.

The sound is distorted.

- Set the 4» switch firmly to the correct position.

SpeCIflcations

0 Frequency range
TV: 2 a 13 ch
WEATHER: 1 a 7 ch
FM: 87.5 a 108 MHz
AM: 530 a 1 710 kHz (North, Central and South America)
531 . 1 602 kHz (Other countries)
0 Power requirements
1.5 v DC, battery size AA (R6) x l
0 Dimensions (wlh/d)
Approx 102.3 x 117.5 x 43.2 mm (4 Vi x 4 3/i x 1 3/4 inches),
(excluding projecting parts and controls)
0 Mass
Approx. 219 g (7.3 oz) (main unit only)
0 Supplied accessories
Stereo headphones or earphones (1)
Hand strap with belt clip (1)

Design and specifications are Subject to change without notice.
