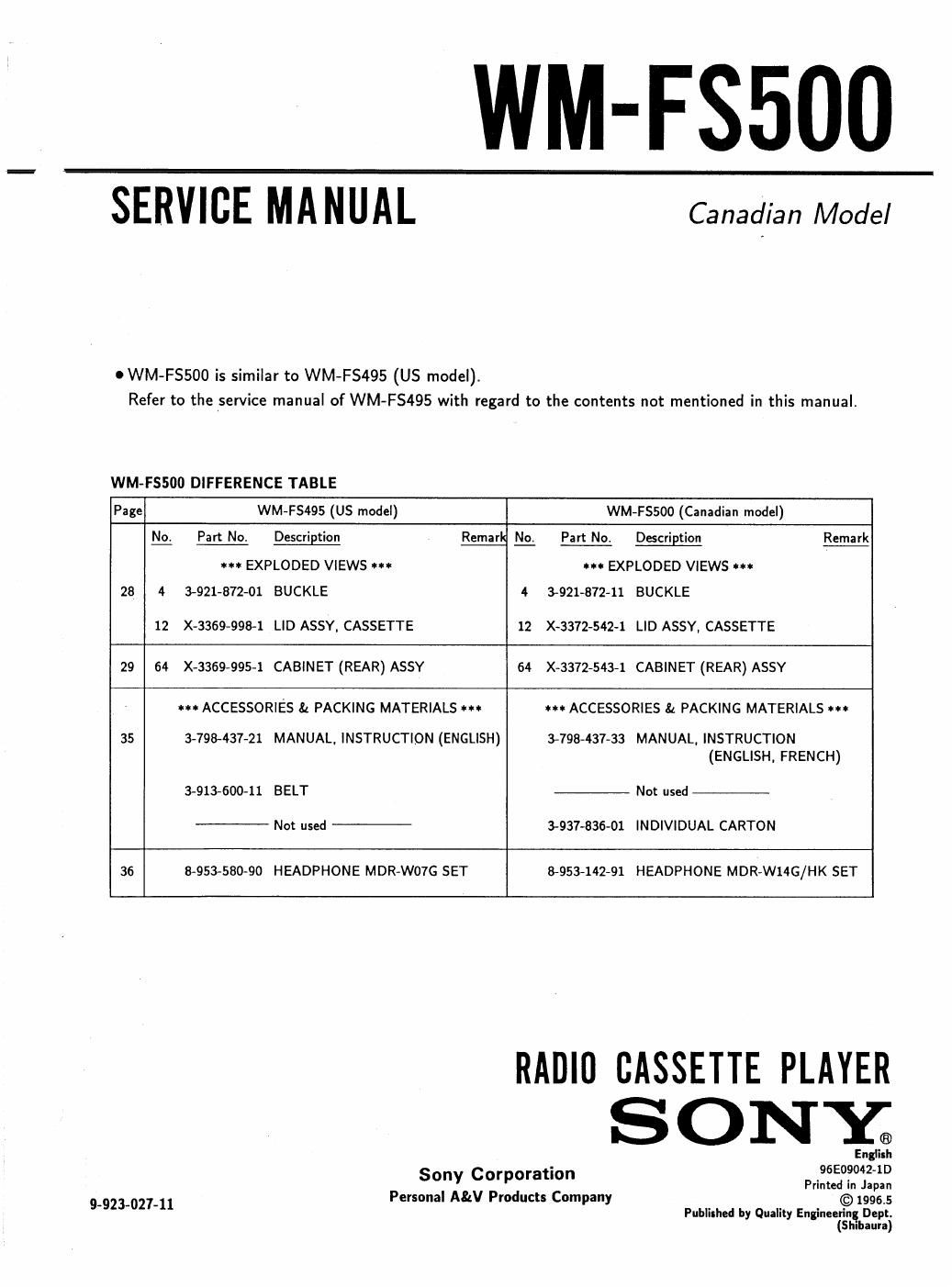

WM-FSSOO
9~923-027-1l
SERVIBE MANUAL
OWM-FSSOO is similar to WM-FS495 (US model).
Canadian Model
Refer to the service manual of WM-FS495 with regard to the contents not mentioned in this manual.
WM-FSSDO DIFFERENCE TABLE
Page WMvFS495 (US model) WM»FSSOO (Canadian model)
& Part No Descrigtion Remark M Part No. DescriEtion Remark
Hut EXPLODED VIEWS Ht s EXPLODED VIEWS u.
28 4 3-921-872»01 BUCKLE 4 3-921-872-11 BUCKLE
12 X~3369-998«l LID ASSY, CASSETTE 12 X-3372-542-1 LID ASSY, CASSETTE
29 64 X-3369-995w1 CABINET (REAR) ASSY 64 X-3372~543-1 CABINET (REAR) ASSY
Mt ACCESSORIES & PACKING MATERIALS t"
3-913-600-11 BELT
Not used
35 3-798-437-21 MANUAL, INSTRUCTION (ENGLISH)
Ir" ACCESSORIES 8; PACKING MATERIALS "a
3-798-437-33 MANUAL, INSTRUCTION
(ENGLISH, FRENCH)
Not used
3-937-836-01 INDIVIDUAL CARTON
36 8-953«580-90 HEADPHONE MDR-W07G SET
8-953-142-91 HEADPHONE MDR-Wl4G/HK SET
Sony Corporation
Personal A&V Products Company
RADII] CASSETTE PLAYER
SONY;
English
96E09042-ID
Printed in Japan
© 1995.5
Publishcd by Quality Engineering Dept.
