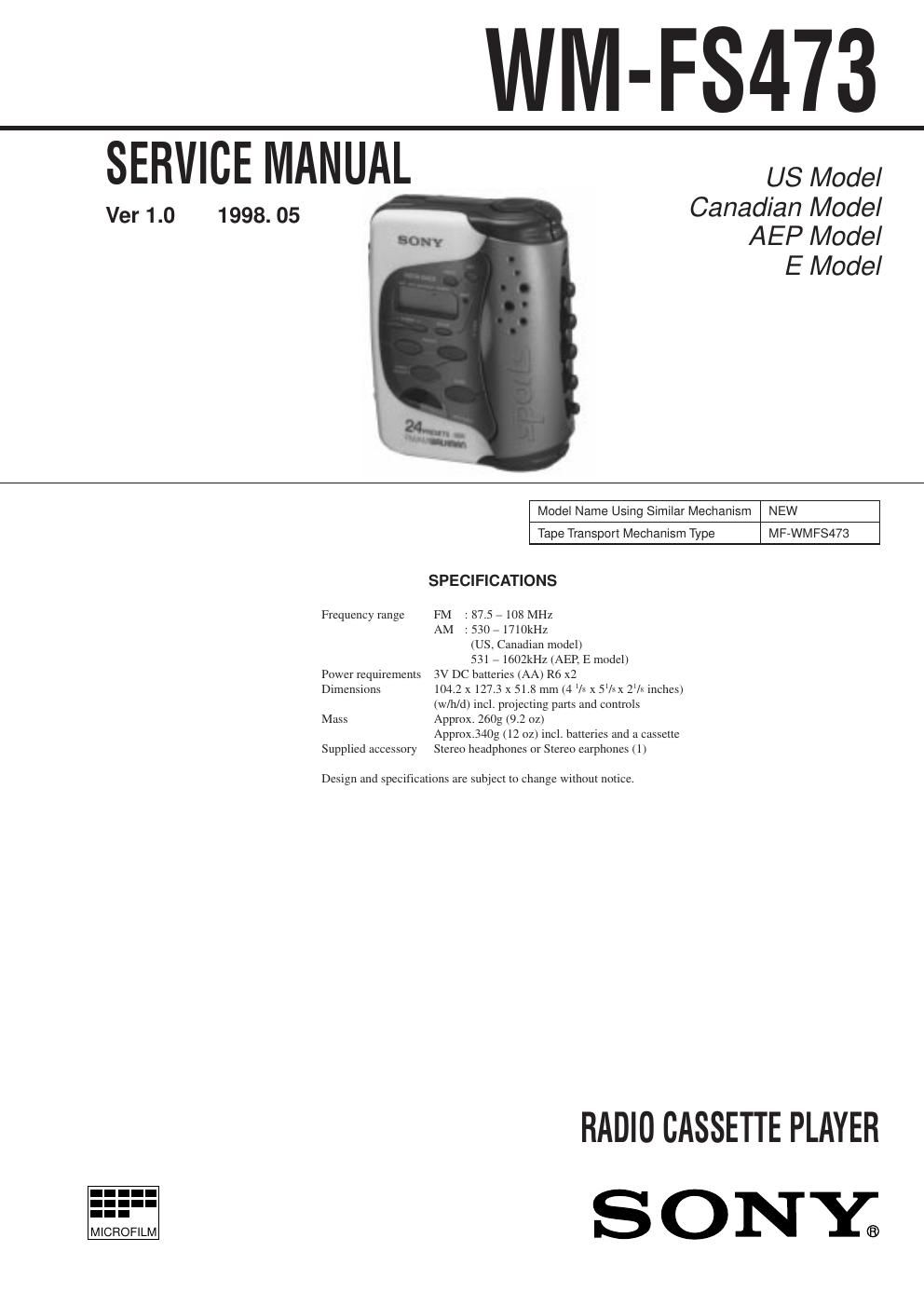

Sony wm fs 473 service manual
This is the 20 pages manual for sony wm fs 473 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony wm fs 473 service manual (Ocr-read)
Page 1
Ð 2 Ð Flexible Circuit Board Repairing ¥ Keep the temperature of the soldering iron around 270°C during repairing. ¥ Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ¥ Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement ¥ Never reuse a disconnected chip component. ¥ Notice that the minus side of a tantalum capacitor may be damaged by heat. TABLE OF CONTENTS Specifications ........................................................................... 1 1. GENERAL Location of parts and controls ............................................ 2 2. SERVICE NOTE ........................................................... 3 3. DISASSEMBLY 3-1. Cover Removal ........................................................... 4 3-2. Display Board Removal ............................................. 4 3-3. Cassette Lid Assy Removal ........................................ 5 3-4. Chassis section, Headphone Jack Board Removal ..... 5 3-5. Mechanism Deck, Main Board, Belt Removal ........... 6 4. ADJUSTMENTS 4-1. Mechanical Adjustments ............................................ 7 4-2. Electrical Adjustments ................................................ 7 5. DIAGRAMS 5-1. Explanation of IC Terminals ..................................... 10 5-2. Block Diagram ........................................................... 11 5-3. Printed Wiring Boards (Main Section) ..................... 13 5-4. Schematic Diagram (Main Section) ......................... 15 5-5. Schematic Diagram (Display Section) ..................... 18 5-6. Printed Wiring Boards (Display Section) ................. 21 6. EXPLODED VIEWS 6-1. Cassette Lid Section ................................................. 23 6-2. Main Board Section .................................................. 24 6-3. Mechanism Deck Section (MF-WMFS473) ............ 25 7. ELECTRICAL PARTS LIST ................................... 26 SECTION 1 GENERAL This section is extracted from instruction manual.
Page 2
Ð 3 Ð SECTION 2 SERVICE NOTE WATERPROOFED SECTION Set the A positions to corner. then push down to grove. Note : In case the parts in the figure are removed for repair, treat them to protect from water drop following the instructions in the figure (spread grease, bond etc.) ¥ Sony grease SGL-601 : 7-651-000-10 Note : Clean the attachement portion and shaded area with cloth. Paking (cabinet) A A Cassette lid assy Screw Joint (VOL. B) O ring (Apply sony grease SGL-601) Knob (VOL) Cabinet (rear) assy
