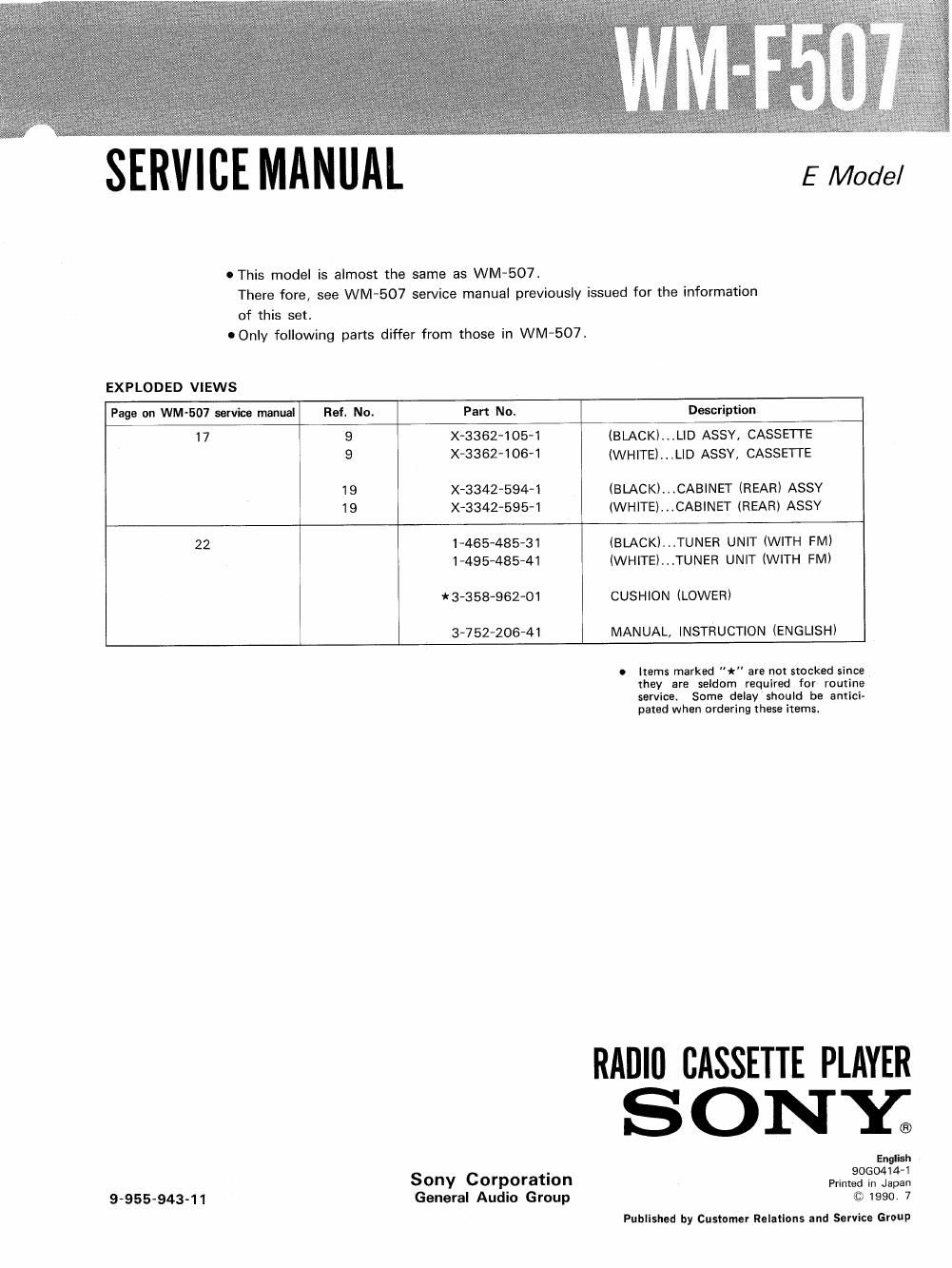

Page 1
SERVICE MANUAL E Model
OThis model is almost the same as WM-507.
There fore, see WM-507 service manual previously issued for the information
of this set.
OOnIy following parts differ from those in WM-507.
EXPLODED VIEWS
Page on WM-507 service manual Ref. No. Part No. Description
17 9 X-3362-105-1 (BLACK)...LID ASSY, CASSETTE
9 X3362105'1 (WHITE)...LID ASSY, CASSETTE
19 X»3342-594-1 (BLACK)...CABINI:I' (REAR) ASSY
19 X3342»595-1 (WHITE)...CABINET (REAR) ASSY
22 1465-485-31 (BLACK)...TUNER UNIT (WITH FM)
1-495-485-41 (WHITE)...TUNER UNIT (WITH FM)
*3-358-962-01 CUSHION (LOWER)
3-752-206-41 MANUAL, INSTRUCTION (ENGLISH)
0 Items marked "it are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items,
RADIII CASSETTE PLAYER
S 0 NE
English
. 90G0414-1
Sony Corporatlon mmmapan
9-955-943-11 General Audio Group © 1990. 7
Published by Customer Relatlons and Service Group
