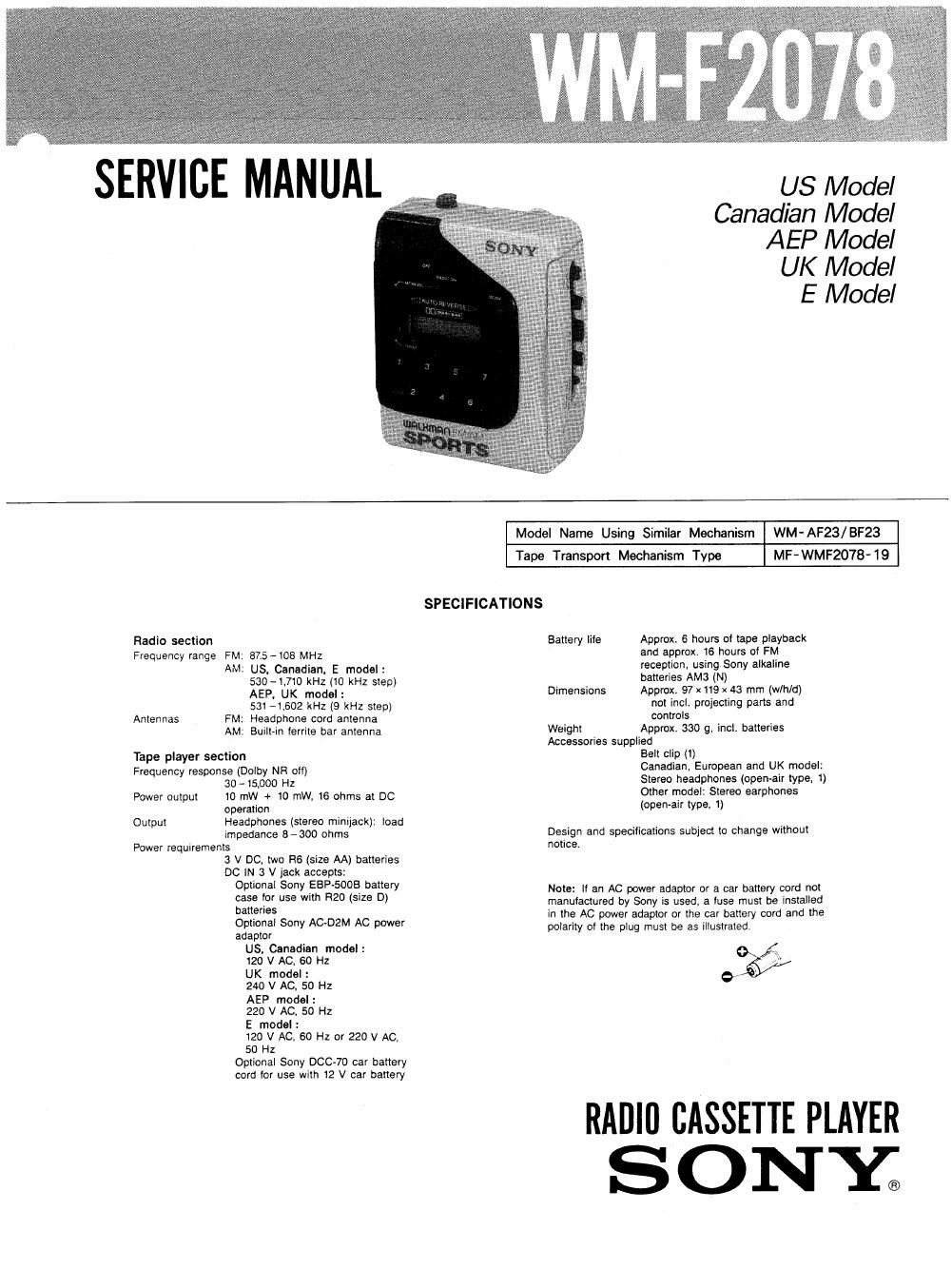

Page 1
SERVICE MANUAL
US Model
Canadian Model
AEP Model
UK Model
E Model
fl .
W
{$91
a
an
35:
9;
he
3%
3%
y no .
. 3:113
'fiéfiaggggwfl
Radio section
Frequency range FM: 875-105 MHz
AM: US. Canadian. E model:
530-l.710 kHz (10 kHz step)
AEP. UK model:
531 -1.602 kHz (9 kHz step)
Antennas FM: Headphone cord antenna
AM: Built-in ferrite bar antenna
Tape player section
Frequency response (Dolby NFt all)
30 - 15,000 Hz
Power output 10 mW + 10 mW, 16 ohms at DC
operation
Output Headphones (stereo minijack): load
impedance 3 - 300 ohms
Power requirements
3 V DC. two H6 (size AA) batteries
DC W 3 V jack accepts:
Optional Sony EBP-SOOB battery
case ior use with R20 (size D)
batteries
Optional Sony AC-DZM AC power
adaptor
US. Canadian model:
120 V AC, 60 Hz
UK model:
240 V AC. 50 HZ
AEP model:
220 V AC, 50 Hz
E model :
120 V AC. 60 Hz or 220 V AC
50 Hz
Optional Sony DOC-70 car battery
cord lor use with 12 V car battery
Model Name Using Similar Mechanism WM-AF23/BF23
MF- WMF2078- 19
Tape Transport Mechanism Type
SPECIFICATIONS
Battery life Approx. 6 hours of tape playback
and approx. 16 hours oi FM
reception. using Sony alkaline
batteries AMa (N)
Dimensions Approx. 97 x 119 x 43 mm (wlh/d)
not incl. projecting parts and
controls
Weight Approx. 330 9, incl. batteries
Accessories supplied
Belt clip (1)
Canadian, European and UK model:
Stereo headphones (open-air type. 1)
Other model: Stereo earphones
(open-air type, 1)
Design and specifications subject to change without
notice.
Note: If an AC power adaptor or a car battery card not
manufactured by Sony is used, a iuse must be installed
in the AC power adaptor or the car battery cord and the
polarity oi the plug must be as illustrated.
9523/
RADIO CASSETTE PLAYER
SONY;
