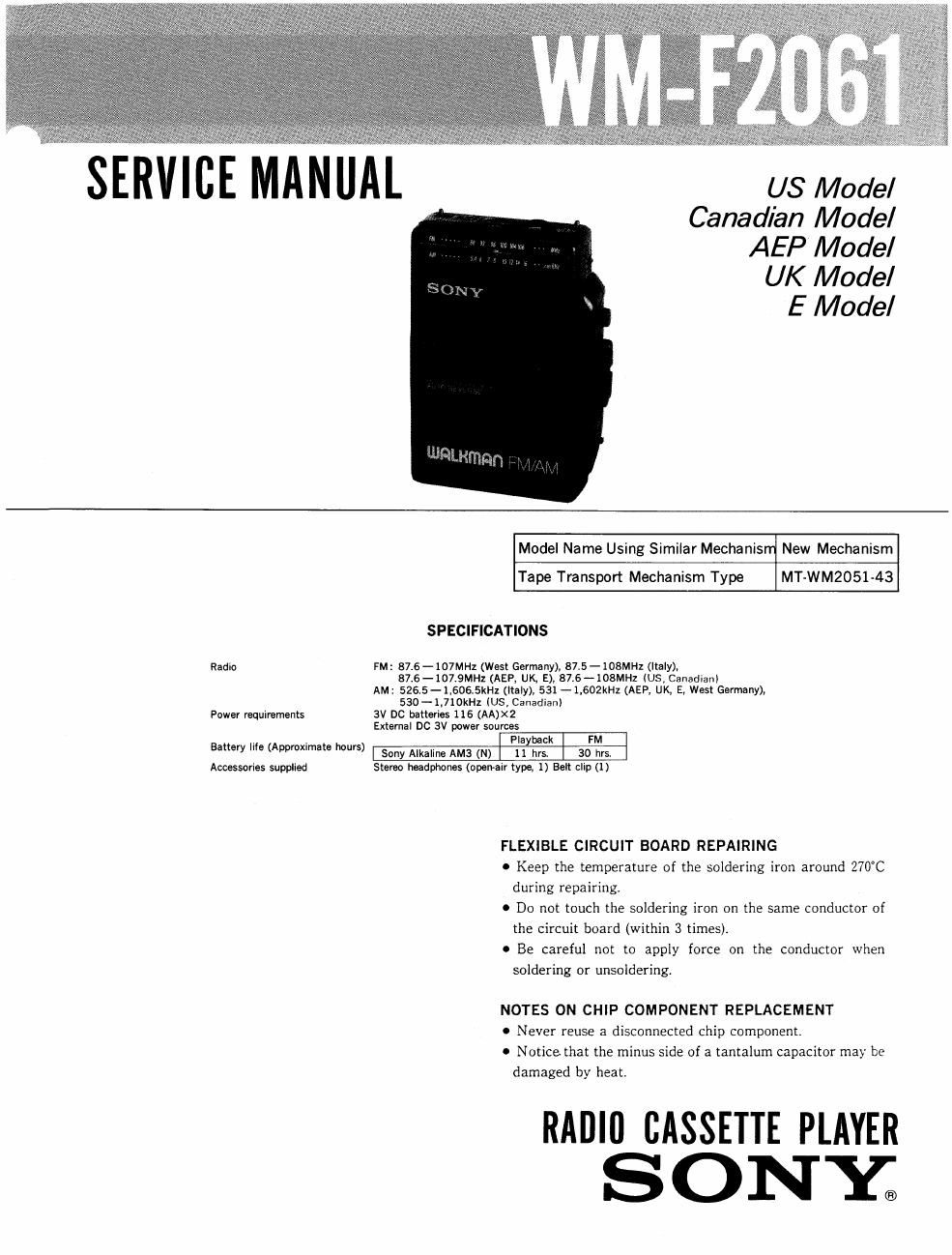

Page 1

SERVICE MANUAL us Model

Canadian Model
AEP Model

UK Model

E Model

Radio

Power requirements

Battery life (Approximate hours)
Accessories supplied

Model Name Using Similar Mechanism New Mechanism
Tape Transport Mechanism Type MT-WM2051-43

SPECIFICATIONS

FM: 87,6 - 107MHz (West Germany), 37.5 -108MH1 (Italy),
87i6-107i9MH1 (AEP, UK, E), 87.6-108MH2 (US, Canadian)

AM: 526.5-l,606.5kHz (ltaly), 531 -l,602kHz (AEP4 UK, E West Germany),
530 - 1,710kHz (US, Canadian)

3V DC batteries 116 (AA)X2

External DC 3V power sources

Playback -E-
Sony Alkaline AM: (N)

Stereo headphones (openair type, I) Belt clip (1)

FLEXIBLE CIRCUIT BOARD REPAIRING

0 Keep the temperature of the soldering iron around 270°C
during repairing,

0 Do not touch the soldering iron on the same conductor of
the circuit board (within 3 times)

0 Be careful not to apply force on the conductor when
soldering or unsoldering.

NOTES ON CHIP COMPONENT REPLACEMENT

0 Never reuse a disconnected chip component.

0 Notice that the minus side of a tantalum capacitor may be
damaged by heat.

RADll] CASSETTE PLAYER
SONY;
