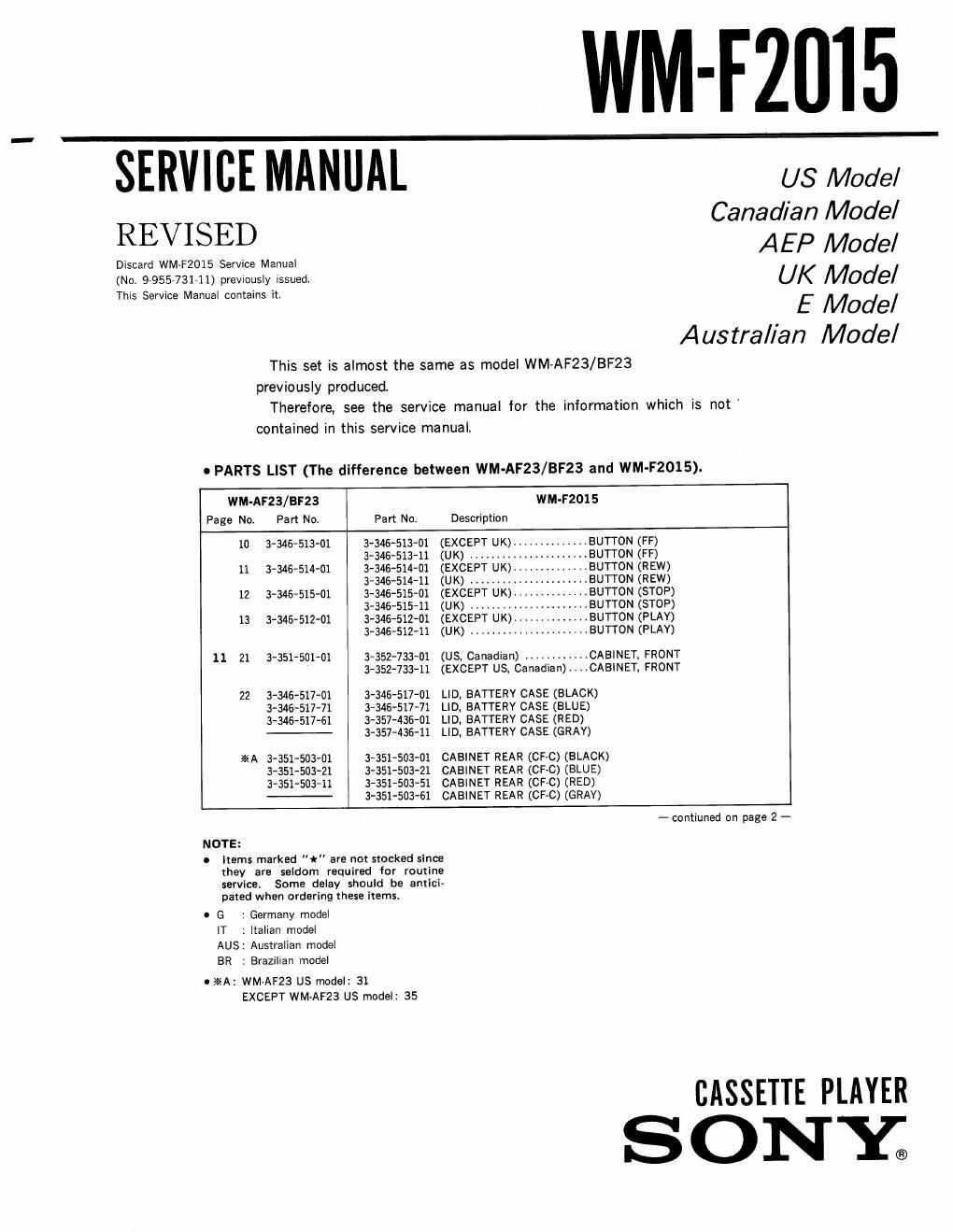

Page 1

SERVICE MANUAL

REVISED

Discard WM-F2015 Service Manual
(No. 995573141) previously issued.
This Service Manual contains it.

WM-F2015

This set is almost the same as model WMvAF23/BF23

previously produced.

US Model
Canadian Model
AEP Model

UK Model
E Model

Australian Model

Therefore, see the service manual for the information which is not
contained in this service manual.

0 PARTS LIST (The difference between WM-AF23/BF23 and WM-F2015).

WM-AFZS/BFZS WM-F2015
Page No. Part No. Part No. Description
10 3-346-513-01 3-346-513-01 (EXCEPT UK). ......... BUTTON (FF)
3-346-51311 (UK) ....... .BUTTON (FF)
11 3446-51441 3-346-514-01 (EXCEPT UK). tBUTTON (REW)
3-346-514-11 (UK) .. .BUTTON (REW)
12 3-346-515-01 3-346-515-01 (EXCEPT . .BUTTON (STOP)
3-346-515-11 (UK) ....... .BUTTON (STOP)
13 3»346-512-01 3-345512-01 (EXCEPT UK). ,BUTTON (PLAY)
3346-512-11 (UK) ....... BUTTON (PLAY)
1]. 21 3-351-501-01 3-352-733-01 (US, Canadian) ............ CABINET, FRONT
3-352-733-11 (EXCEPT US, Canadian) . ...CABINET, FRONT
22 3-346-517-01 3-346-517-01 LID, BATTERY CASE (BLACK)
3-346-517-71 3446-51741 LID, BATTERY CASE (BLUE)
3-346>517-61 3-357-436-01 LID, BATTERY CASE (RED)
- 3-357436-11 LID, BATTERY CASE (GRAY)
RéA 3-351-503-01 3,351,503.01 CABINET REAR (CF-C) (BLACK)
3-351-50341 3-351>503-21 CABINET REAR (CFC) (BLUE)
3-351-503-I1 3-351-503-51 CABINET REAR (CF-C) (RED)
- 3-351-503-6! CABINET REAR (CF-C) (GRAY)

NOTE:

- contiuned on page 2 -

0 Items marked "t" are not stocked since
they are seldom required for routine
service. Some delay should be antici-

pated when ordering these items)
0 G : Germany model

lT : Italian model

AUS: Australian model

BR : Brazilian model

I X/cA: WM-AF23 US model: 31
EXCEPT WM-AF23 US model: 35

CASSETTE PLAYER

SONY,
