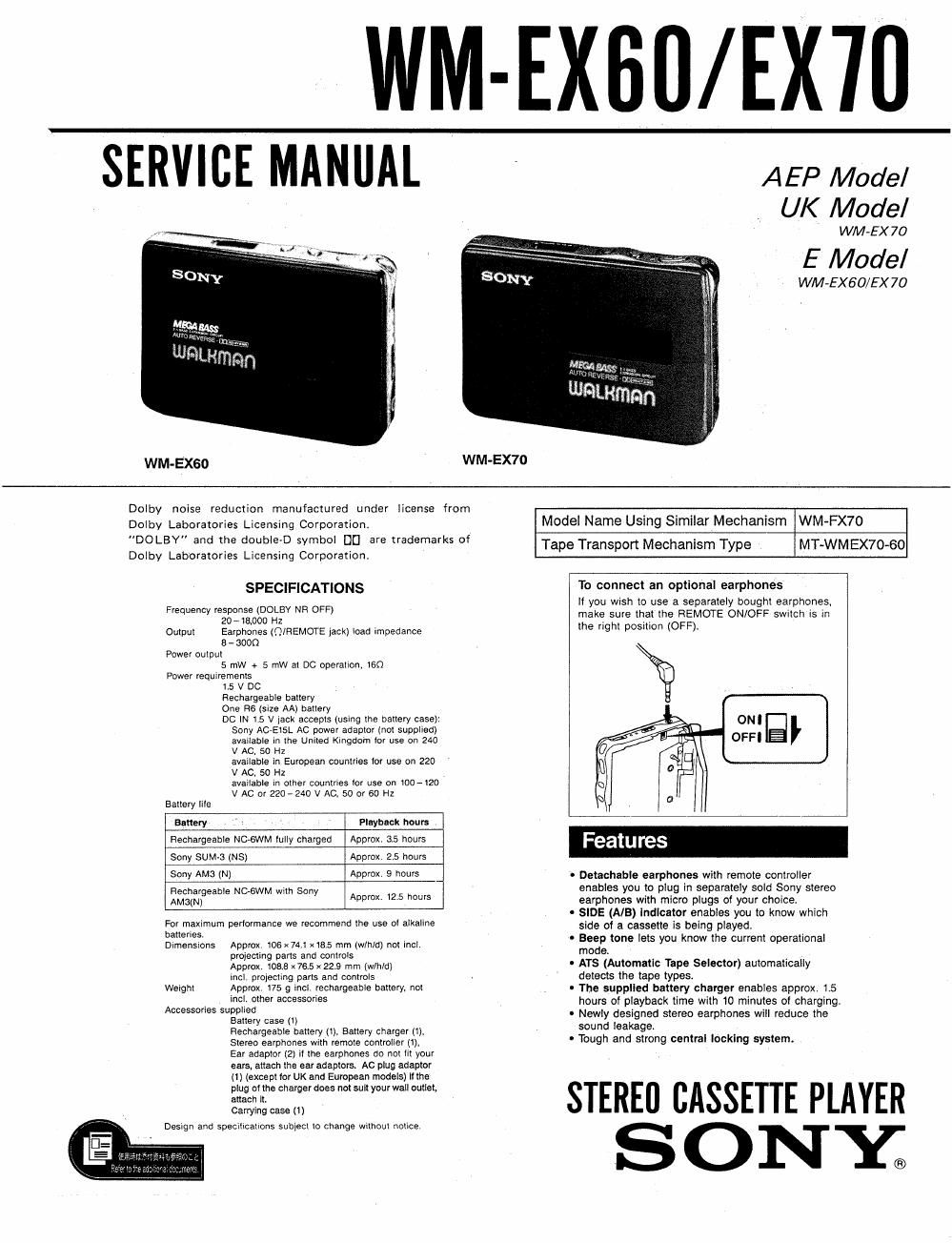

WM-EXBO/EX'III

SERVICE MANUAL

WM-EXGD WM-EX70

AEP Model
UK Model

WM-EX 70

E Model

WM-EX60/EX70

Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation
"DOLBV" and the doubleD symbol DC are trademarks of
Dolby Laboratories Licensing Corporation.

SPECIFICATIONS
Frequency response (DOLBY NR OFF)
20 w 18.000 HZ
Output Earphones (fl/REMOTE lack) load impedance
8 - 300G

Power output
5 mW + 5 mW al DC operation. too
Power requiremens
15 v DC
nechargeaole battery
One as (size AA) battery
0c W 1.5 v iack accepts (using the battery case)
Sony AC-El5L AC power adaptor (not supplied)
available in the United Klngdom lot use on 240
V AC. 50 Hz
available in European countries lot use on 220
v Ac, so Hz ,
available In other countries 0! use on 100-120
V AC or 2207240 v Ac, so or 60 Hz

Battery lile
Battery Playback hours
Rechargeable NC-SWM tully charged Approx. 3.5 hours
Sony SUM-3 (NS) Approx 2.5 hours
Sony Atria (NJ Approx, 9 hours
Efficmhgggeabb NC-SWM with Sony Approx. 25 hours

For maximum perlormance we recommend the use OI alkaline

batteries.

Dimensions Approx. 106 x74.l x was mm (wlh/d) not incl.
projecting parts and controls
Approx. 1083 x765 x 229 mm (wlhld)
incl, ploiecllng parts and controls

Weight Approx 175 9 incl rechargeahle hallery. not
incl other accessories

Accessories supplied
Battery case (i)
Rechargeable battery (1). Battery charger (1)»
Stereo earphones with remote controller (1).
Ear adaptor (2) lI the earphones do not Iit your
ears. attach the ear adaptors. AC plug adaptor
(1) (except for UK and European models) N the
plug 01 the chataerdoes not suit your wall outlet,
attach It.
Carrying case (t)

Design and Specillcaltons sublecl to change wllhoui notice

Model Name Using Similar Mechanism WM-FX70

Tape Transport Mechanism Type MT-WMEX70-60

To connect an optlonal earphones

If you wish to use a separately nought earphones,
make sure that the REMOTE ON/OFF switch is m
the right position (OFF).

0 Detachable earphones with remote controller
enables you to plug in separately sold Sony stereo
earphones with micro plugs of your choice.

- SIDE (AlB) indicator enables you to know which
side of a cassette is being played.

0 Beep tone lets you know the current operational
mode.

- ATS (Automatic Tape Selector) automatically
detects the tape types

- The supplied battery charger enables approx. 1.5
hours of playback time with 10 minutes of charging.

. Newly designed stereo earphones will reduce the
sound leakage,

o Tough and strong central locking system.

STEREO CASSETTE PLAYER
