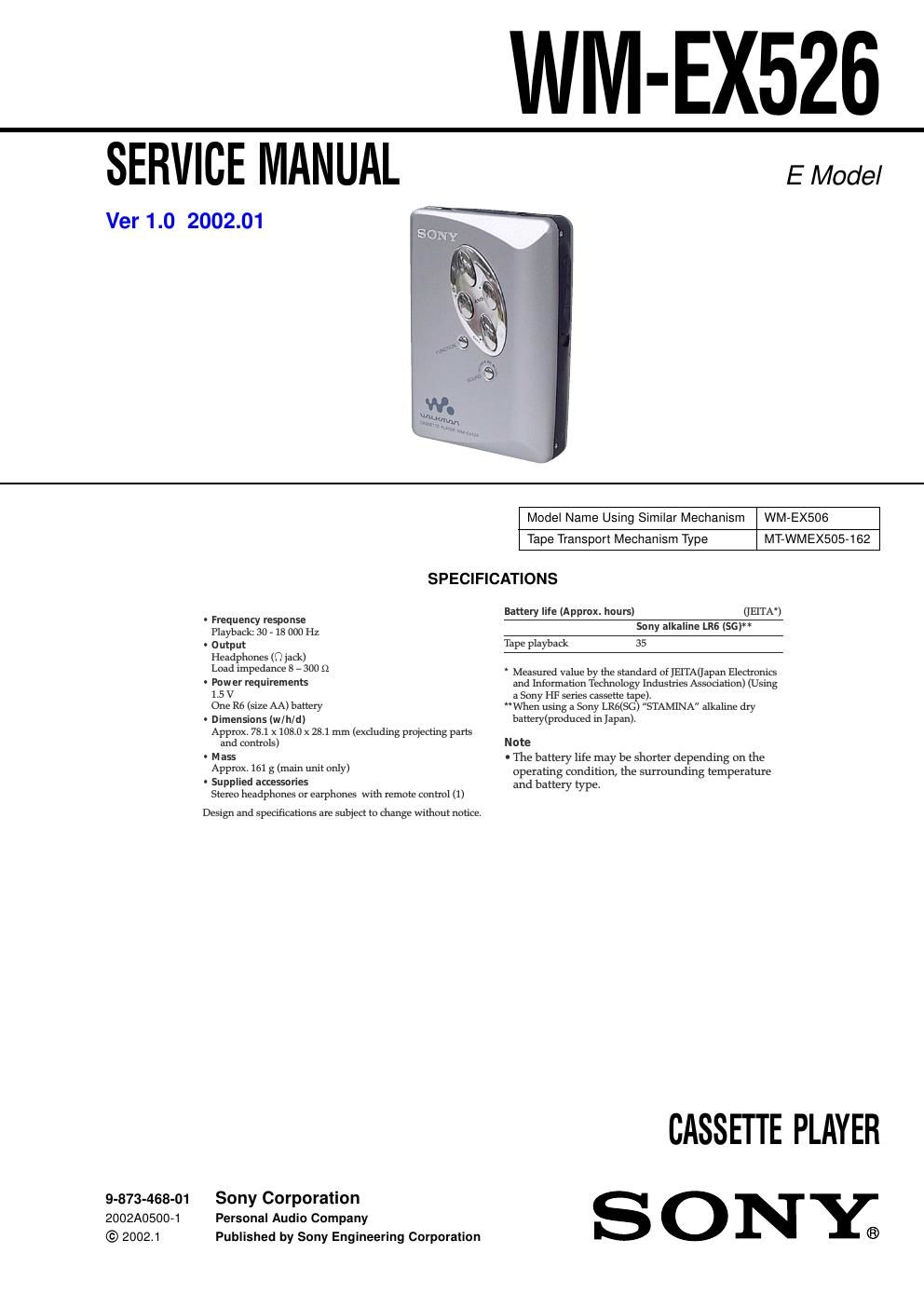

Sony wm ex 526 service manual

Page 2

3 WM-EX526 SECTION 1 SERVICING NOTES This set detects the rotation of the idler gear (A) (side S) using the PH701 (photo reflector). The PH701 is mounted on the MAIN board, therefore the idler gear (A) (side S) cannot be detected with the MAIN board removed. As a result, the motor (M901) cannot be controlled, causing malfunction. Further, the DIRECTION switch (S701) is also mounted on the MAIN board, and with the board removed, the mechanism posi- tion cannot be detected and the operation is not changed over. Therefor, when the voltage check is executed with the MAIN board removed, follow the procedure provided below. 1. Setting (1) Refer to 3. DISASSEMBLY, and remove the MAIN board. (2) Connect the MAIN board to the motor (M901) and the plunger (PM901) using jumper wires. These can be connected easily with the use of the extension tool (Part No. 1-769- 143-11) (ten in one set). (3) Short the TAPE DETECT switch (S901-1) terminals and the ATS switch (S901-2) terminals. (4) Connect the AF oscillator to the TP36 (PHOTO IN) and the TP46 (GND). (5) Supply 1.3 V to the battery terminals using the regulated power supply. 2. Preset state To set the PLAY, FF, REW modes, the preset state must be set. (1) Check that the slider (NR) and the DIRECTION switch (S701) are set to the center position. If not, set the preset state as follow. (2) Move the DIRECTION switch (S701) to the side, which the slider (NR) is facing. (3) The slider (NR) will move when the regulated power supply switch is set to OFF once and then set to ON. Move the DI- RECTION switch (S701) according to this timing and set to the center position.3. FF, REW modes (1) Check that the preset state is set. (2) Input the square wave or sine wave to the TP36 (PHOTO IN) and the TP46 (GND). (3) Press the x button (S702) to set the STOP mode. (4) Press the [FF] button (S704) or the [REW] button (S705). 4. PLAY mode (1) Check that the preset state is set. (2) Input the square wave or sine wave to the TP36 (PHOTO IN) and the TP46 (GND). (3) Press the x button (S702) to set the STOP mode. (4) Press the [ REPEAT] button (S703) will move the slider (NR) once towards the side R and then to the side F. Move the DIRECTION switch (S701) according to this timing will set the PLAY mode (side F). Press the [ REPEAT] button (S703) another time and move the DIRECTION switch (S701) according to the movement of the slider (NR) will set the PLAY (R mode). Note 1 :If the above fails, perform from preset again. Note 2 :Use the [ REPEAT] (S703), x (S702), [FF] (S704), and [REW] (S705) buttons on the remote controller as much as possible. If no remote controller, do not touch the buttons with your hands, but using a stick with a round tip. Note 3 :When using headphones, the timing for move the DIRECTION switch (S701) can be determined from the beep sound.n N + – square wave (sine wave) 10 Hz, – 3.5 dB – MAIN Board (Side B) – TAPE DETECT switch (S901-1)ATS switch (S901-2) connect to the plunger (PM901) battery terminal 3 battery terminal # connect to th e motor (M901) PH701 SOUND (S706) S701 DIRECTION FWD TCENTER tREV TP46 (GND) FUNCTION (S708) x(S702) TP36 (PHOTO IN) REW (S705) Y REPEAT (S703) FF (S704) AF oscillator n N n N
