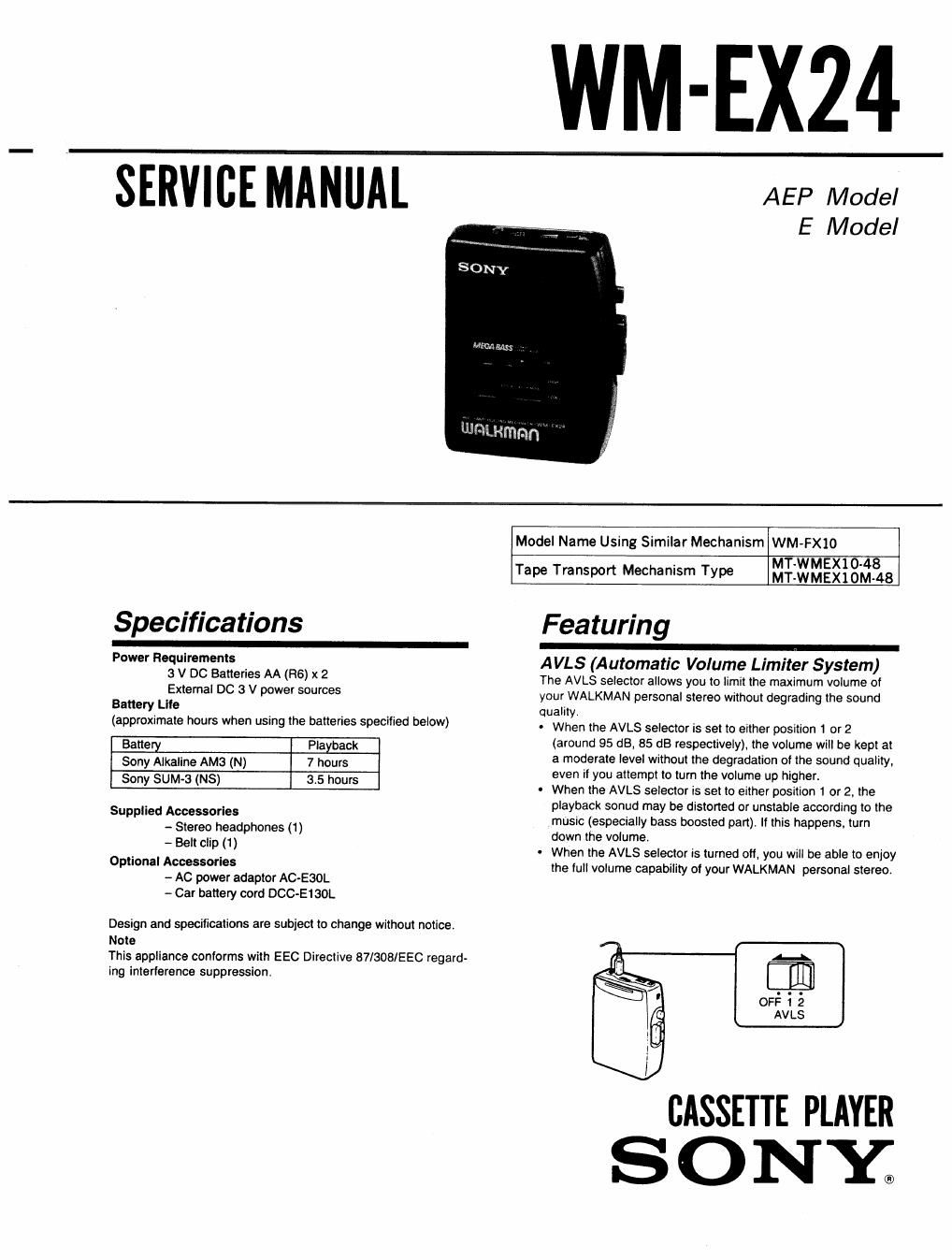

Page 1

WM-EX24

SERVICE MANUAL

AEP Model
E Model

Specifications

Power Requirements
3 v DC Batteries AA (R6) x 2
External DC 3 V power sources
Battery Lite
(approximate hours when using the batteries specified below)

Battery Playback
Sony Alkaline AM3 (N) 7 hours
Sony SUM-3 (NS) 3.5 hours

Supplied Accessories
- Stereo headphones (1)
- Belt clip (1)
Optional Accessories
- AC power adaptor AC-ESOL
- Car battery cord DCC-ElSOL

Design and specifications are subject to change without notice.
Note

This appliance conforms with EEC Directive 87/308/EEC regard-
ing interference suppression.

Model Name Using Similar Mechanism WM-FXIO

Tape Transport Mechanism Type TwmgflghfiaB

Featuring

AVLS (Automatic Volume Limiter System)
The AVLS selector allows you to limit the maximum volume of
your WALKMAN personal stereo without degrading the sound
quality.

- When the AVLS selector is set to either position 1 or 2
(around 95 dB, 35 dB respectively), the volume will be kept at
a moderate level without the degradation of the sound quality,
even if you attempt to turn the volume up higher.

- When the AVLS selector is set to either position 1 or 2, the
playback sonud may be distorted or unstable according to the
music (especially bass boosted pan). it this happens, turn
down the volume.

- When the AVLS selector is turned oft, you will be able to enjoy
the full volume capability of your WALKMAN personal stereo.

CASSETTE PLAYER
S O NSC.

Page 2

SECTION 1
DISASSEMBLY

~Follow the disassembly procedue in the numerical order given.

CABINET (REAR) ASSY

0 /cassette lid assy

battery

Insert the \cabinet (rear)
precision screw driver assy
(1.4mm {lat-blade)

in to the slit at claw *

é " and release the claw.

0

Remove the cabinet (rear) assy.
(Release all claw 0 to G in
alphabetical order.)

MECHANISM DECK AND MAlN BOARD
Remove mechanism deck and main
board to the direction of the arrow.

R front cabinet assy and
cassette lid assy
