Extracted text from sony wm ex 19 service manual (Ocr-read)

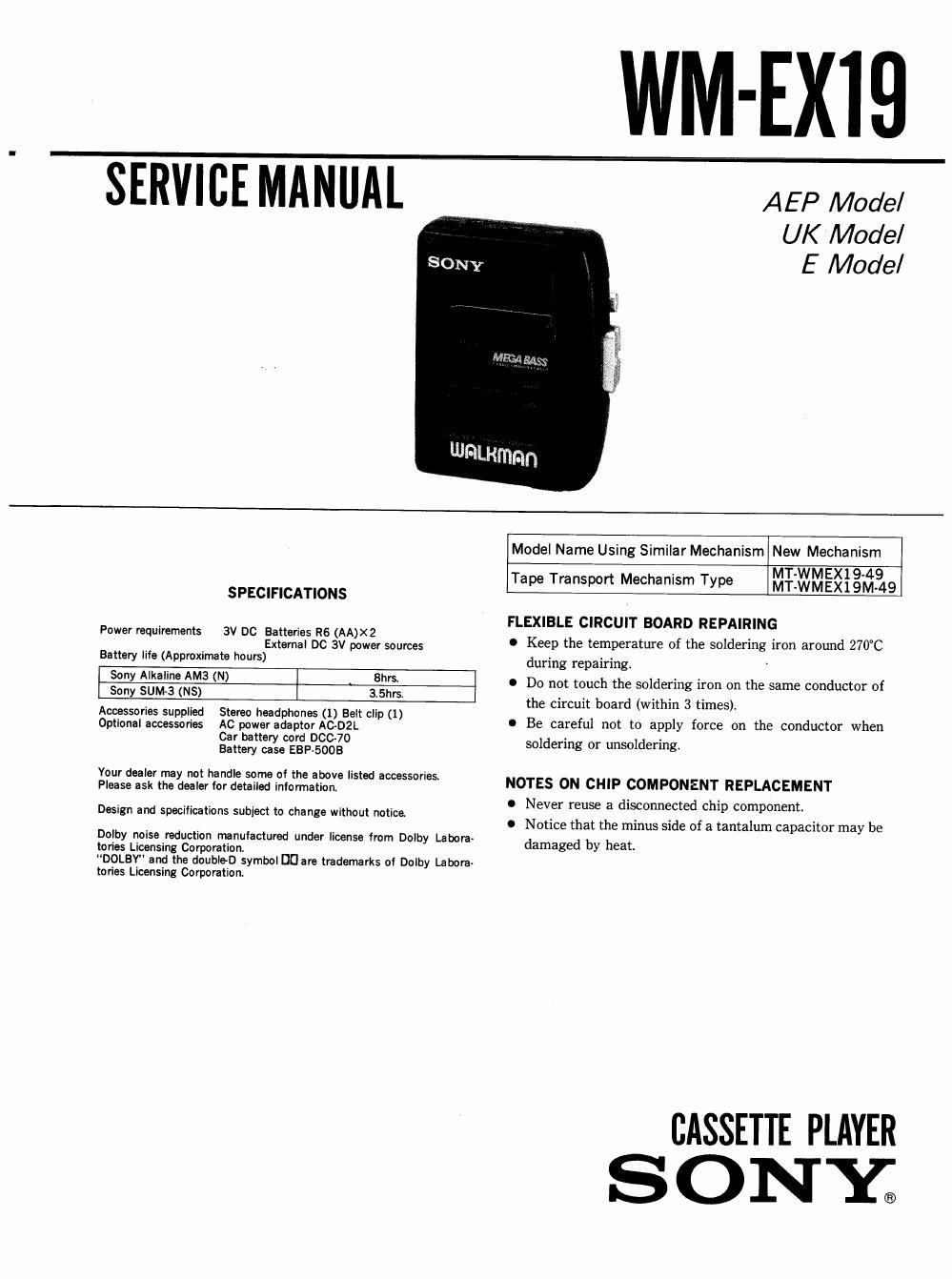

Page 1
WM-EXIEI
SERVICE MANUAL
AEP Model
UK Model
E Model
SPECIFICATIONS
Power requirements 3V DC Batteries R6 (AA)X2
External DC 3V power sources
Battery life (Approximate hours)
Model Name Using Similar Mechanism New Mechanism
Tape Transport Mechanism Type
MT-WMEXl 9-49
MT-WMEX19M-49
Sony Alkaline AM3 (N) 8hrs
Sony SUM-3 (NS) 3.5hrs.
Accessories supplied Stereo headphones (1) Bell clip (1)
Optional accessories AC power adaptor AGDZL
Car battery cord DOC-7O
Battery case ESP-5005
Your dealer may not handle some of the above listed accessories
Please ask the dealer for detailed information
Design and specifications subject to change without notice
Dolby noise reduction manufactured under license from Dolby Labora-
to ries Licensing Corporation.
"DOLBY" and the doubleD symbol DCIare trademarks of Dolby Labora-
tories Licensing Corporation
FLEXIBLE CIRCUIT BOARD REPAIRING
Keep the temperature of the soldering iron around 270°C
during repairing.
Do not touch the soldering iron on the same conductor of
the circuit board (within 3 times).
Be careful not to apply force on the conductor when
soldering or unsoldering.
NOTES ON CHIP COMPONENT REPLACEMENT
Never reuse a disconnected chip component.
Notice that the minus side of a tantalum capacitor may be
damaged by heat.
CASSETTE PLAYER
S 0 NY;
Page 2
WM-EX19
SECTION 1
DISASSEMBLY
~ Follow the disassembly procedue in the numerical order given.
CABINET (REAR) ASSY
0 cassette lid assy
battery
Insert the
precision screw driver
(1.4mm flat-blade)
0 in to the slit at claw
A and re ease the claw
-7
' cabinet (rear) assy
9
Remove the cabinet (rear) assy.
(Release all claw 0 to o in
alphabetical order.)
MECHANISM DECK AND MAIN BOARD
Remove mechanism deck and main
board to the direction of the arrow
\front cabinet assy and
cassette lid assy
