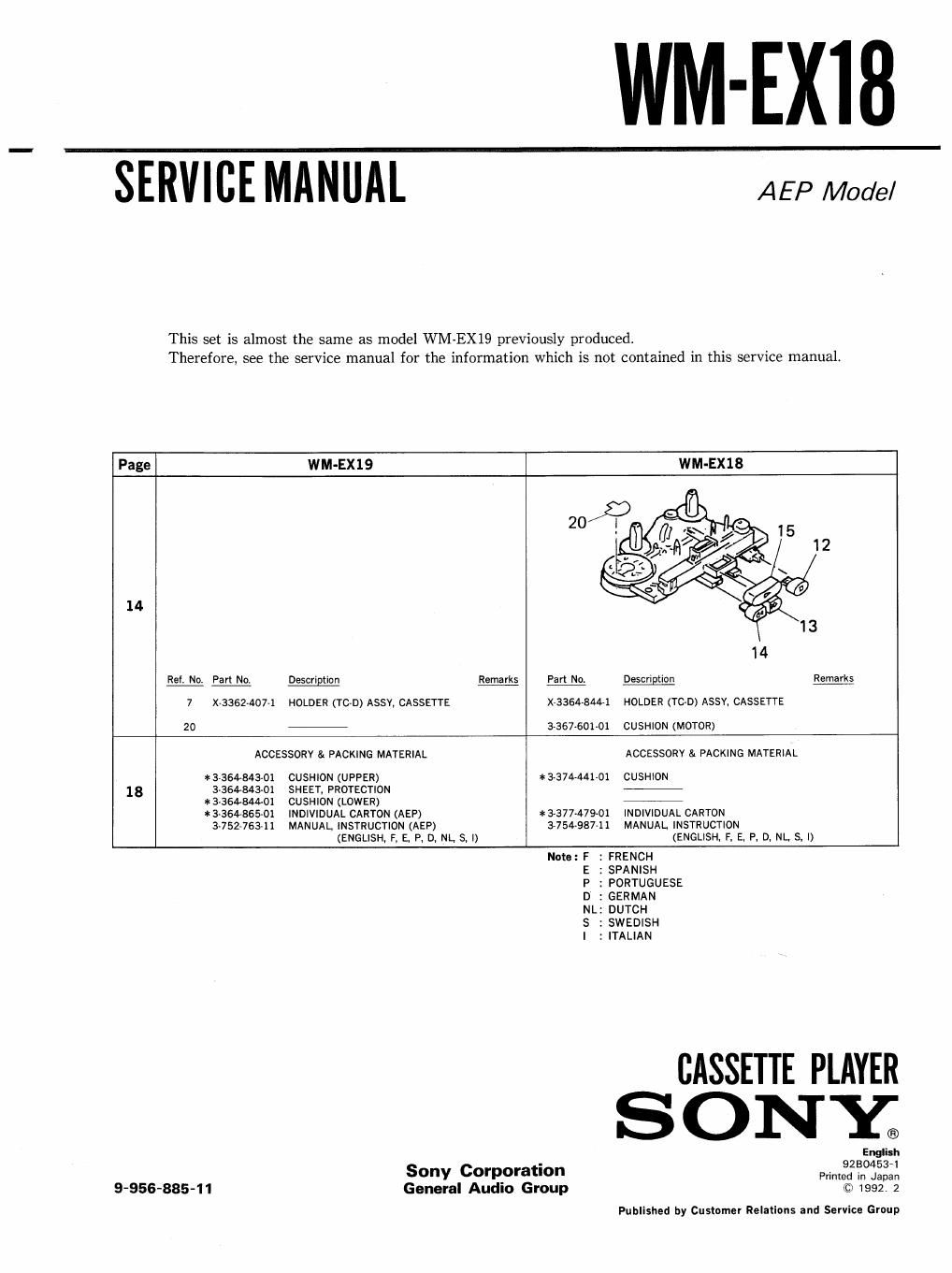

WM-EXIB

SERVICE MANUAL AEP Model

This set is almost the same as model WM-EX19 previously produced.
Therefore, see the service manual for the information which is not contained in this service manual

Page WM-EX19
14
Ref, No. Fan No. Descrigtion Remarks Part No. Descvigtion Remarks
7 X~3362>407-1 HOLDER (TOD) ASSY. CASSETTE X~3364-844vl HOLDER (TC-D) ASSY, CASSETTE
20 - 3367-60101 CUSHION (MOTOR)
ACCESSORY & PACKING MATERIAL ACCESSORY & PACKING MATERIAL
* 336484301 CUSHION (UPPER) * 337444101 CUSHION
18 336484301 SHEET» PROTECTION _
*3364v84A-01 CUSHION (LOWER) i
*3»364-865-01 INDIVIDUAL CARTON (AEP) *3-377-47901 INDIVIDUAL CARTON
3752-76311 MANUAL INSTRUCTION (AEP) 3-754987-11 MANUAL INSTRUCTION
(ENGLISH, F, E, P. D, ML, 8, I) (ENGLISH, F, E, P, D, ML 5, I)
Note: F : FRENCH
E : SPANISH
P : PORTUGUESE
D : GERMAN
NL: DUTCH
S : SWEDISH
I : ITALIAN

CASSETTE PLAYER
S O N Y;

English
_ 92304534
Sony Corporatlon Printed in Japan

Published by Customer Relations and Service Group
