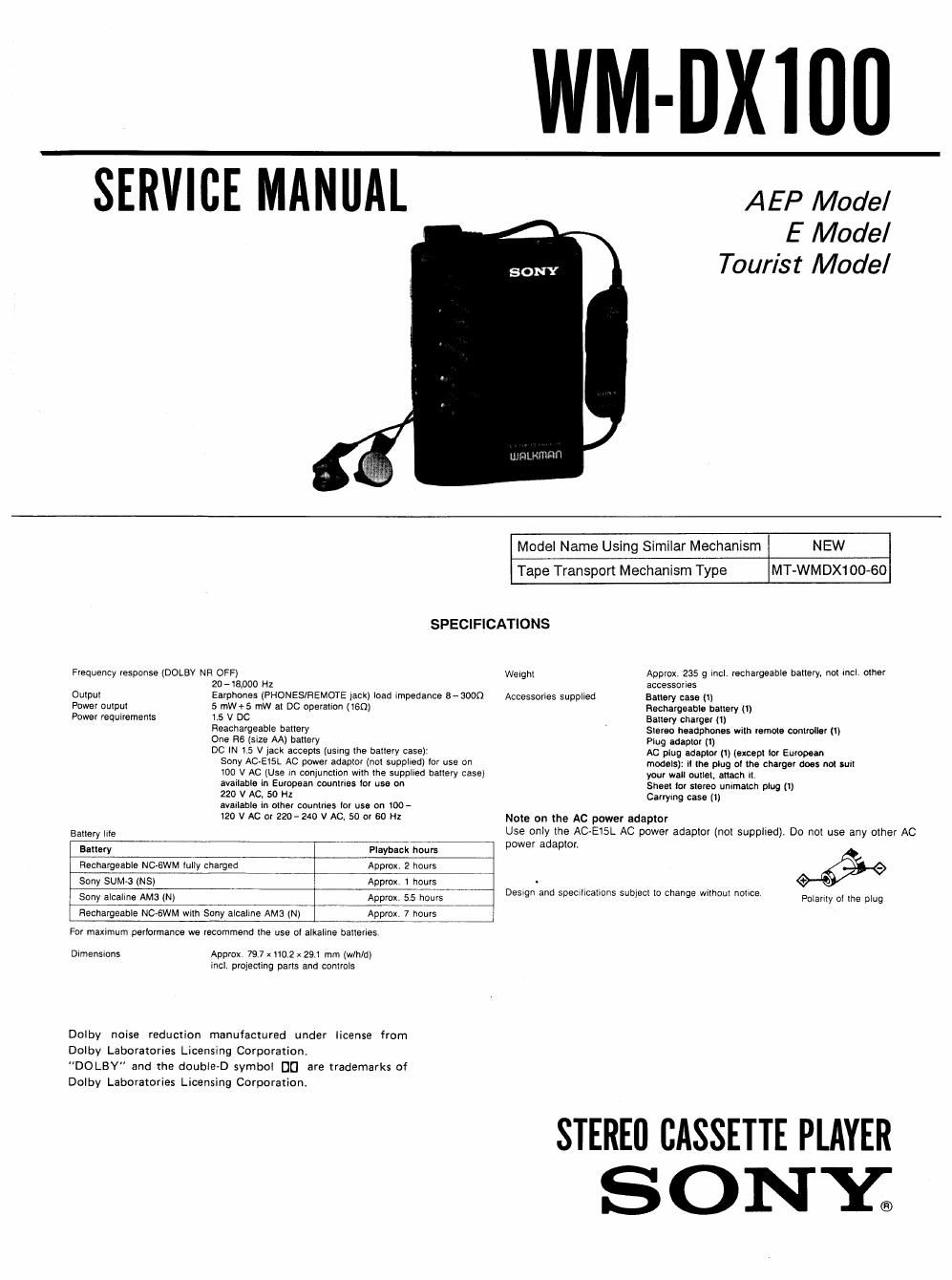

Page: 1 / 19
sony wm dx 100 service manual

Extracted text from sony wm dx 100 service manual (Ocr-read)


Page 2

WM-DX100

TABLE OF CONTENTS

Section M Page
1. SERVICING NOTE ..................... 3
2, GENERAL ............................. 4
3. DISASSEMBLY ......................... 5
4. ADJUSTMENTS

4-1. Mechanical Adjustments ------------------- 5
42 Electrical Adjustmeng .................... 7
5. DIAGRAMS

5.1_ Block Diagram ........................... 8
5-2. Printed Wiring Board --------------------- 10
5-3, SChemafiic Diagram ....................... 13
s. EXPLODED VIEWS .................... 19
7. ELECTRICAL PARTS LIST ------------ 22
