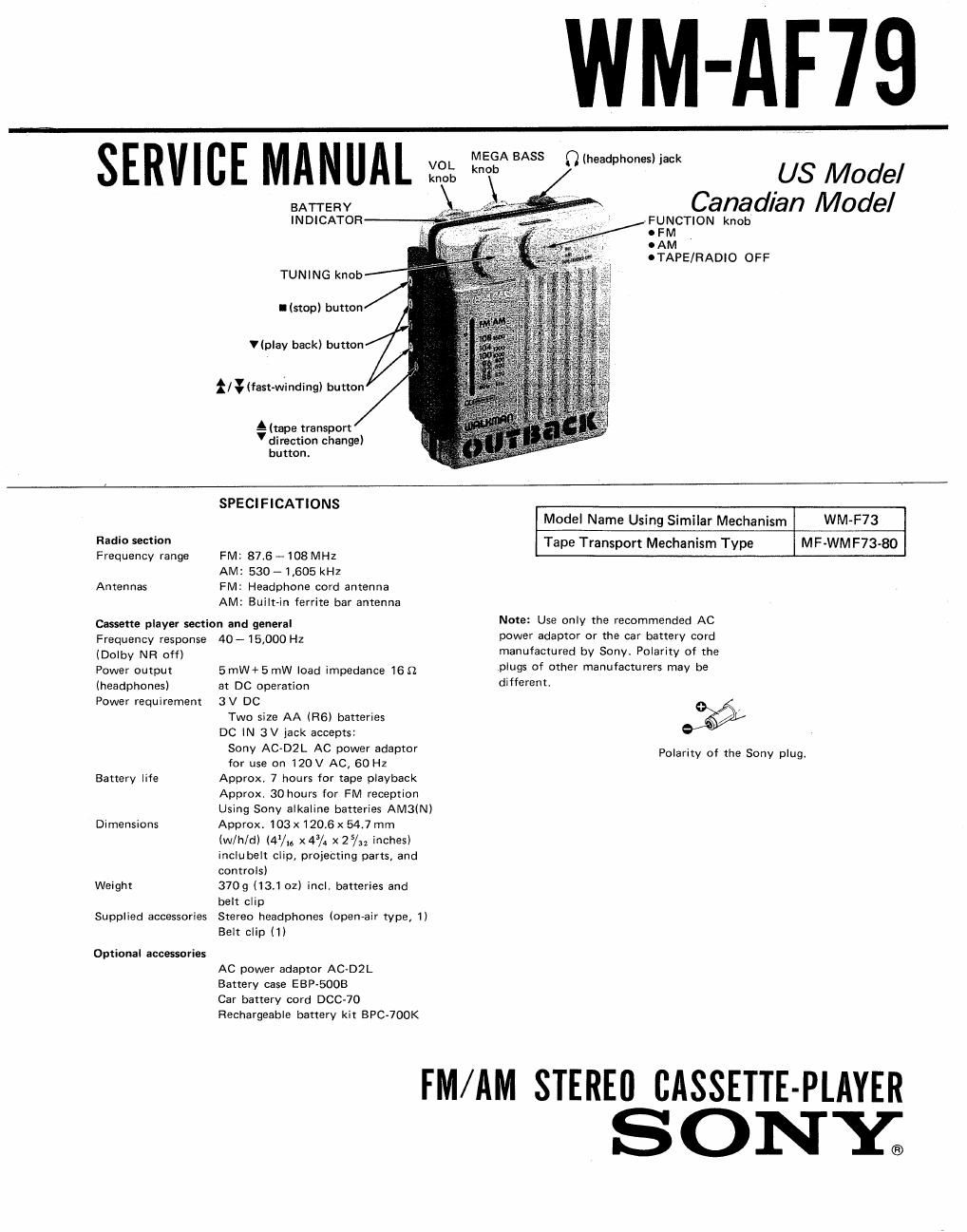

Page 1

WM-AF 79

INDICATOR

TUNING knob

I (stop) button

Viplay back) button
fl ¥ (fast-winding) button

A (tape transport

direction change)
button.

MEGA BASS Q (headphones) iack

SERVICE MANUAL v.2; i"

k
BATTERY \-

U8 Model
Canadian Model

-FUNCTION knob
oFM

oAM

TAPE/RADlO OFF

SPECIFlCATIONS

Radio section

Frequency range FM: 87.6 _ 108 MHz
AM: 530-1505 kHz

Antennas FIVI: Headphone cord antenna
AM: Built-in ferrite bar antenna

Cassette player section and general
Frequency response 40 w 15.000 Hz

(Dolby NR off)
Power output 5 mW+ 5 mW load impedance 16 n
(headphones) at DC operation

Power requirement 3V DC
Two size AA (R6) batteries
DC lN 3V jack accepts:
Sony AC»D2L AC power adaptor
for use on 120V AC, 60 Hz
Battery life Approx. 7 hours for tape playback
Approx. 30 hours for FM reception
Using Sony alkaline batteries AM3(N)
Dimensions Approx. 103x 120.6 x 54.7 mm
(w/h/d) (47,6 x43/4 x25/32 inches)
inclubelt clip, projecting parts, and

controls)

Weight 3709 (13.1 oz) incl, batteries and
belt clip

Supplied accessories Stereo headphones (open-air type, 1)
Belt clip (1)

Optional accessories
AC power adaptor AC-DZL
Battery case EBP-SOOB
Car battery cord DOC-70
Rechargeable battery kit BPC-700K

Model Name Using Similar Mechanism WM-F73
MF-WMF73-80

Tape Transport Mechanism Type

Note: Use only the recommended AC
power adaptor or the car battery cord
manufactured by Sony, Polarity of the
plugs of other manufacturers may be

different.

Polarity of the Sony plug.

FM/AM STEREO CASSETTE-PLAYER

SONY;
