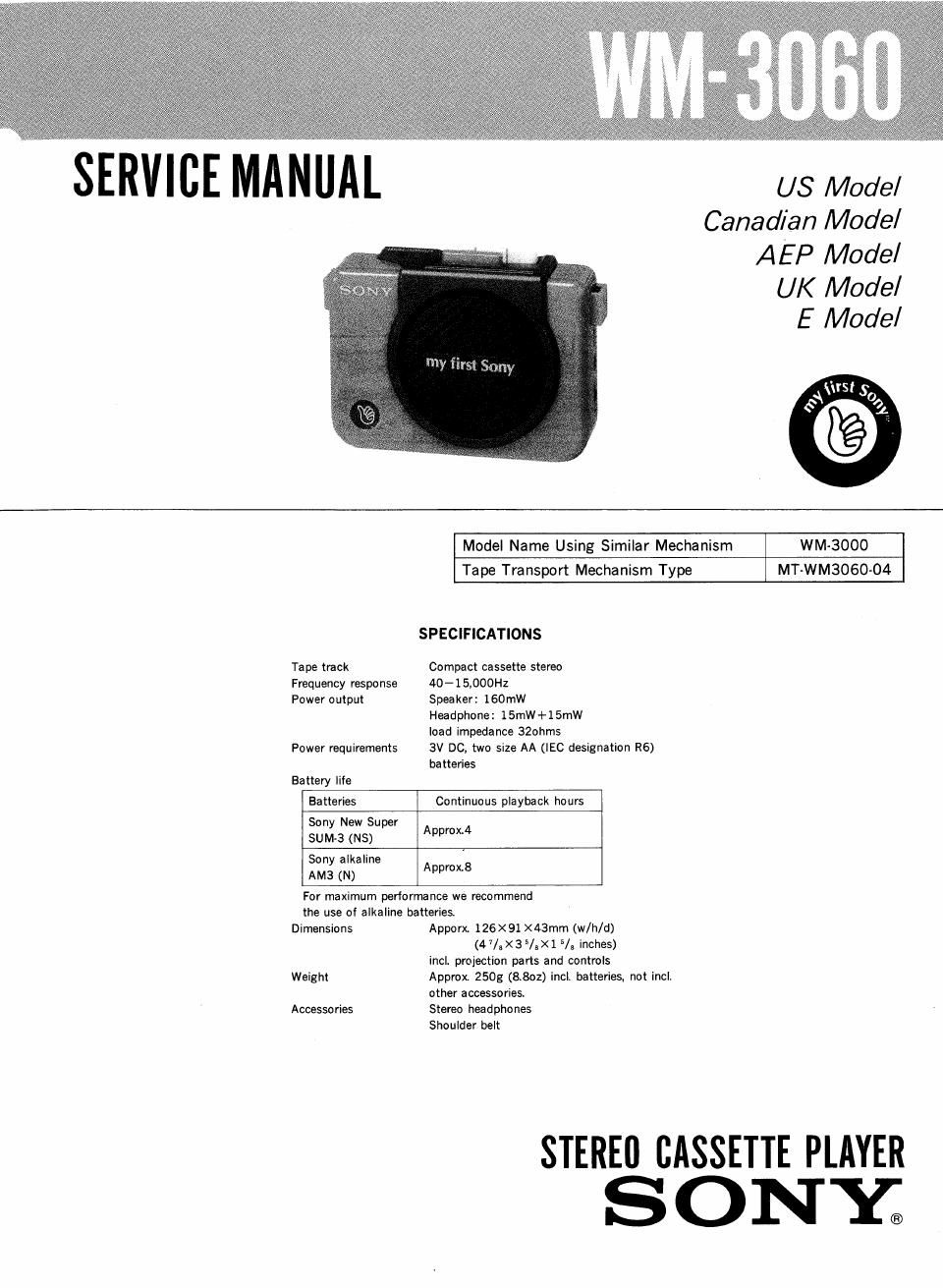

SERVICE MANUAL

US Model
Canadian Model
AEP Model
UK Model
E Model

Tape track
Frequency response
Power output

Power requirements

Model Name Using Similar Mechanism

WM-3000

Tape Transport Mechanism Type

MT-WM3060-04

SPECIFICATIONS

Compact cassette stereo

40-15,000Hz

Speaker: IGOmW

Headphone: 15mW+15mW

load impedance 320hms

3V DC, two size AA (IEC designation R6)
batteries

Battery life
Batteries Continuous playback hours
Sony New Super
SUM-3 (NS) Approx.4
Sony alkaline '
AM3 (N) Approx,8

For maximum performance we recommend
the use of alkaline batteries.

Dimensions

Weight

Accessories

Apporx. 126x91 X43mm (w/h/d)
(4 7/! X 3 5/. X1 5/: inches)
incl. projection parts and controls
Approx. 250g (8802) incl. batteries, not incl,
other accessories
Stereo headphones
Shoulder belt

STEREII CASSETTE PLAYER

SONY;

Page 2

WM-3060

SECTION 1
MECHANICAL ADJUSTMENTS
PRECAUTION

1 Clean the following parts with a denatured alcohol-moistened

swab :
Playback head rubber belts
capstan jdlers

pinch roller
2. Demagnetize the playback head with a head demagnetizer,
Do not use a magnetized screwdriver for the adjustments
After the adjustments, apply suitable locking compound to the
parts adjusted.
5. The adjustments should be performed with the rated power
supply voltage (3V) unless otherwise noted

Torpue Measurement

Torque Meter Reading Torque Meter
22-453mm
Forward (0.300.630? inch) CQJOZC
55-1303~cm
Fast Forward (0.77-1.802~inch) CQ~201B
. 55-150gcm
Rama (0.77»2lloz~inch) 013
. 0.5-2g-cm
Back Tension (0.007-002802-inch) CQ»102C
Tape Tenslon Measurement
Meter Meter Reading
CQ-403A more than 1003 (3.5702)
Test Tape
Type Signal Used for
WS-48A SkHz. OdB Tape Speed Adjustment

SECTION 2
ELECTRICAL ADJUSTMENTS

Tape Speed Adjustment
Procedure :

test tape
WS-4SA
(3kHz, (MB)

3-- set

lg
lil

frequency counter
Q(headphone) jack

1 Play back WS-48A (Tape center portion) in FWD mode.
Adjust the RV601 so that the frequency counter reads 3,000
HziBOHz.

2 Confirm that the reading of frequency counter is within 15%
from the reading in step 1,

Adjustment Location : main board

(Q I030]

RV601

TAPE '
SPEED 6 j
A DJ
