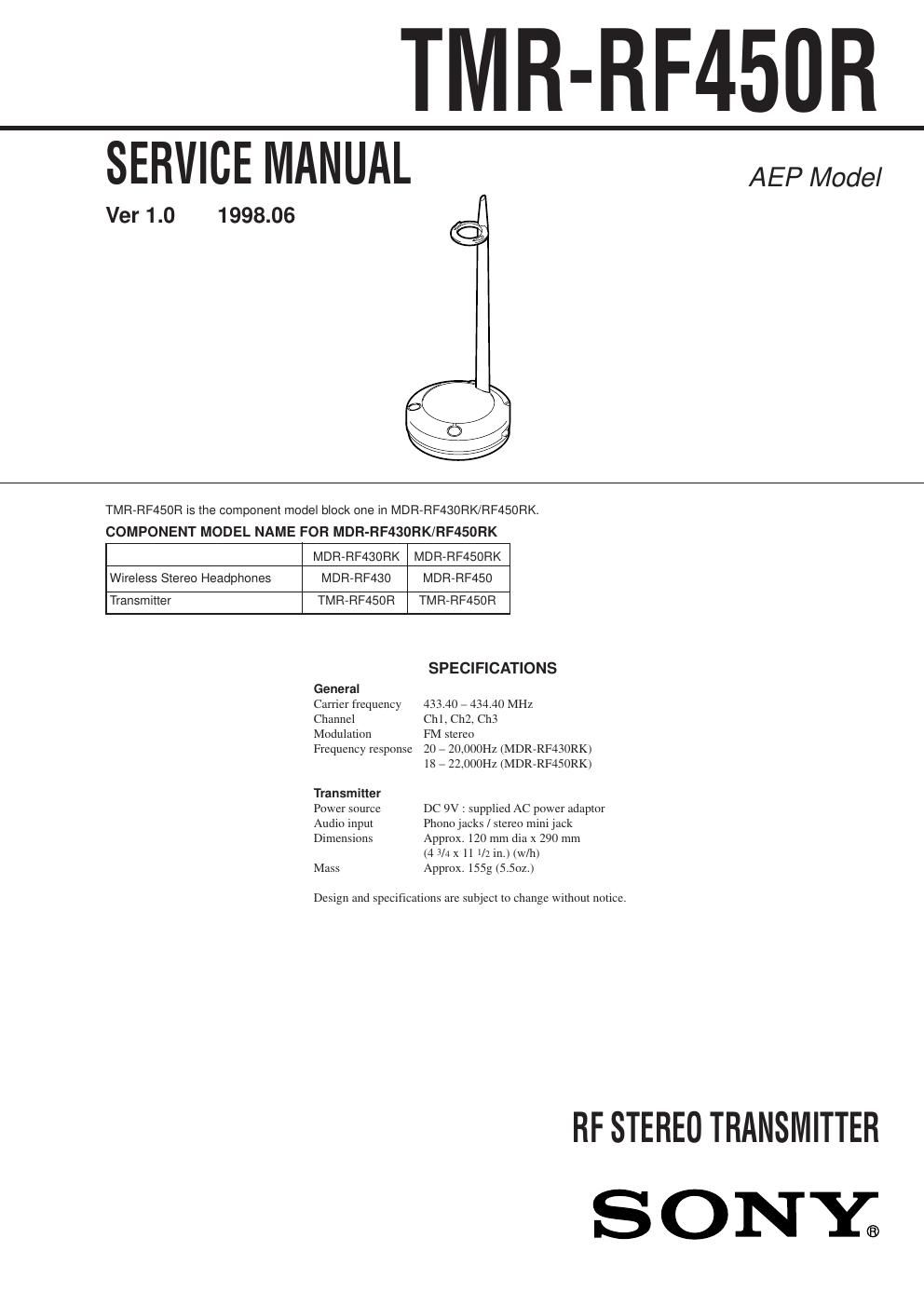

Sony tmr f 450 r service manual
This is the 8 pages manual for sony tmr f 450 r service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony tmr f 450 r service manual (Ocr-read)
Page 1
Ð 2 Ð SECTION 1 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 1-1. TX BOARD REMOVAL 3 8 4 2 1 Screws +P 2x10 7 Remove solder 6 Remove solder 5 TX shield plateCabinet (Upper ) ANT board VCO board TX board Cabinet (Lower)
Page 2
Ð 3 ÐÐ 4 Ð SECTION 2 ELECTRICAL ADJUSTMENTS Note : 1. The transmitter section adjustments should be completed before performing the headphones section adjustment. 2. On adjusting the transmitter section, use the headphones as a jig. Transmitter Headphones TMR-RF450RMDR-RF430 MDR-RF450 Setting : Send Frequency Check and Adjustment 1. Set the noise filter SW to OFF. 2. Input a signal of 1kHz 40mVrms to only the L-ch (J403). 3. Connect a telescopic antenna to the frequency counter input and extend the antenna to a length of approximately 13cm. 4. Place TX board close to the frequency counter, then measure the frequencies of CH1, CH2 and CH3 and make sure the values are as follows: CH1 : 433.3 Ð 433.5MHz CH2 : 433.8 Ð 434.0MHz CH3 : 434.3 Ð 434.5MHz If the measured values are other than the values specified above, adjust the frequencies by turning RV402 and RV403 on the TX board. When completed with adjustment, recheck the frequencies of CH1, CH2 and CH3. Connection points and Adjustment Location : TX board (See page 4) Sub-Carrier (L-R) Modulation Check and Adjustment 1. Set the noise filter SW to OFF. 2. Set the channel to CH2. 3. Input a signal of 1kHz 316mVrms to only the L-ch (J403). 4. Measure the pin 1 voltage of the TX board IC403 using an digital voltmeter (AC range) and make sure the value is 220 Ð 250mVrms. If the measured value is other than the specified value, adjust to 235mVrms by turning the RV401 on the TX board. Connection points and Adjustment Location : TX board (See page 4) 3.4–3.8Vp-p AF signal generator telescopic antenna 13cm L-CH (J403) TMR-RF450Rset TMR-RF450Rset frequency counter MDR-RF430 MDR-RF450 headphones battery terminal (DC 3V) Sub-Carrier Frequency Check and Adjustment 1. Set the noise filter SW to OFF. 2. Set the channel to CH2. 3. Input a signal of 1kHz 316mVrms to only the L-ch (J403). 4. Connect a frequency counter and an oscilloscope between the Q409 emitter and GND. 5. Set the TX board L-ch (J403) input to OFF (not doing so will cause modulation in the sub-carrier, preventing correct measure- ment) 6. Check to make sure the frequency counter reading is 48 Ð52kHz. If the measured value is other than the specified value, adjust the frequency to 50kHz by turning the RV405 on the TX board. In addition, check to make sure the oscilloscope waveform is as follows : (Perform the check and adjustment within one minute since the transmitter AUTO OFF function will be activated approximately one minute after setting the transmitter L-ch input to OFF. If the AUTO OFF function activates, set the L-ch input to ON, set TX board to AUTO ON, set the L-ch input again to OFF, then make the check adjustment.) Connection points and Adjustment Location : TX board (See page 4) Main Carrier Modulation Check and Adjustment 1. Set the channel to CH2. 2. Set the noise filter SW to OFF. 3. Input a signal of 1kHz 316mVrms to only the transmitter Lch (J403). 4. Set headphones VOL (RV301) to MIN. 5. Connect an digital voltmeter (AC range) and oscilloscope be- tween IC301 pin @Á and GND on RX board (headphones). 6. Receive signals by turning headphones TUNING VOL (RV302). 7. First check to make sure that a demodulated waveform of 1kHz is outputted to the oscilloscope, then check to make sure the digital voltmeter (AC range) reading is AC 12 Ð15mVrms. If the reading is not within the specified range, turn RV404 on the TX board so that the reading is 13.5mVrms. HEADPHONES [ RX BOARD ] (Conductor side) Connection points and Adjustment Location : TX board (See page 4) oscilloscope digital voltmeter (AC range) Connection points : Adjustment Location : S402 Channel Select Switch RV403 (R-CH) RV402 (L-CH)S401 Noise Filter ON/OFF Switch J402 (R-CH) RV404 : Main Carrier Modulation Adjustment RV401 : Sub-Carrier (L– R) Modulation Adjustment RV405 : Sub-Carrier Frequency AdjustmentSend Frequency Adjustment J403 (L-CH) [TX BOARD] (Component side) [ TX BOARD ] (Conductor side) digital voltmeter (AC range) frequency counte r oscilloscope
