Page 1

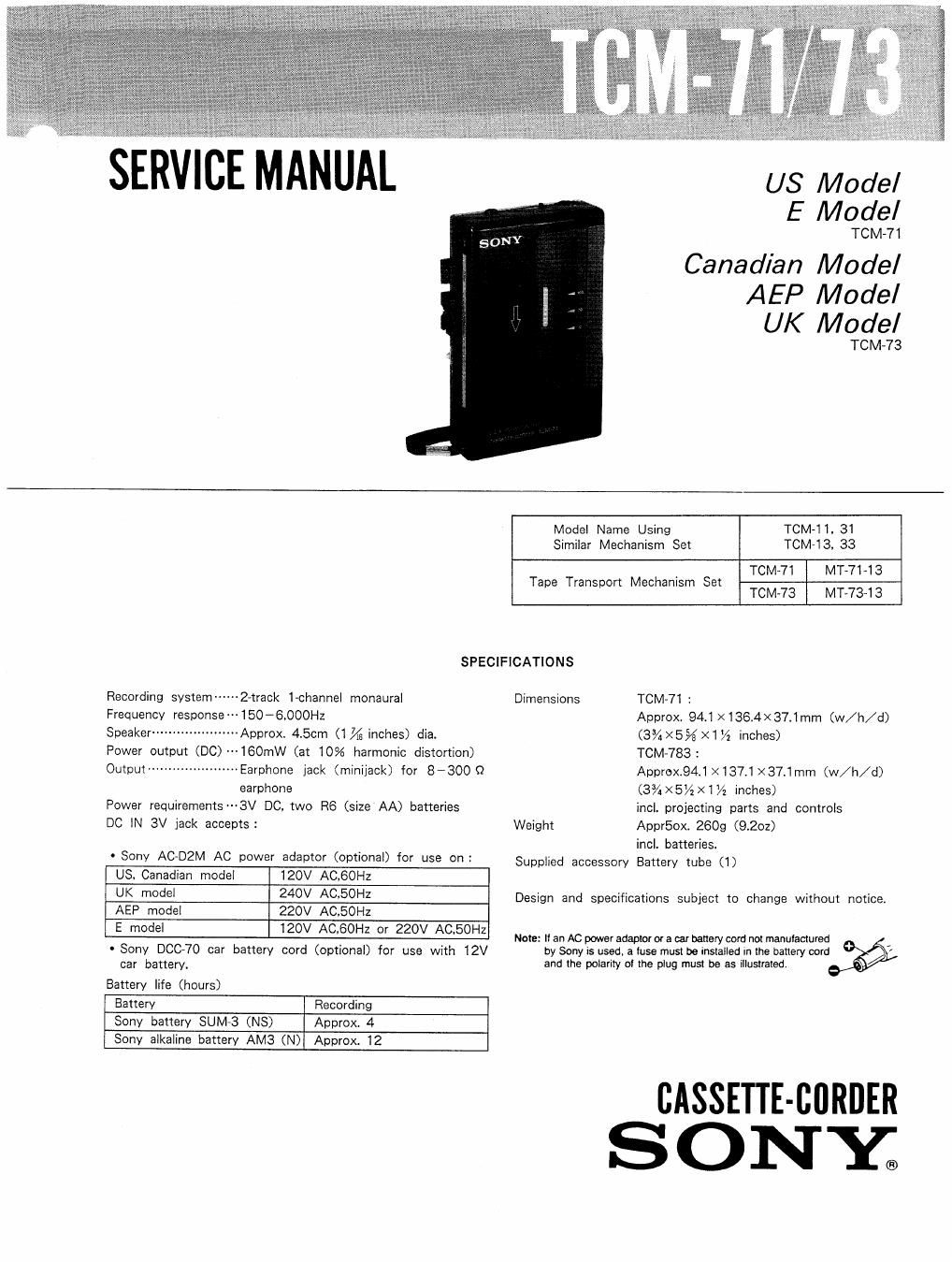

SERVICE MANUAL

US Model
E Model

TCM-71

Canadian Model
AEP Model
UK Model

Recording system

TCM73
Model Name Using TOM-11. 31
Similar Mechanism Set TCMa13. 33
T T M h g S TOM-71 MT~71A13
t t
ape ranspor ec anlsm e TOM-73 MT-73-13

SPECIFICATIONS

~2-track Ichannel monaural

Frequency response 150 - 6.000Hz

Speaker --------------------- Approx. 4.5cm (17/.5 inches) dia.

Power output (DC) ~~160mW (at 10% harmonic distortion)

Output ------------------- Earphone jack (minijack) for 8-3000
earphone

Power requirements---3V DC, two R6 (size AA) batteries

DC IN 3V jack accepts:

0 Sony AC»DZM AC power

adaptor (optional) for use on:

US. Canadian model 120V AC.60HZ
UK model 240V AC.50Hz
AEP model 220V AC,50HZ
E model 120V AC,6OHZ or 220V AC.50Hz

- Sony DOC-7O car battery
car battery.

Battery life (hours)

cord (optional) for use with 12V

Battery

Recording

Sony battery SUM-3 (NS)

Approx. 4

Sony alkaline battery AM3

(N) Approx. 12

Dimensions

Weight

TOM-71 :

Approxi 94.1 X136.4>< 37.1 mm (w/h/d)
(3% X5% X1 /2 inches)

TCM-783 :

Approx.94,1 X1311 X37.l mm (w/h/d)
(3% X5/2 X 1 1/2 inches)

incl. projecting parts and controls
Appr50x. 2609 (9202)

incl. batteries.

Supplied accessory Battery tube (1)

Design and specifications subject to change without notice.

by Sony is used, a {use must be installed in the battery cord

and the polarity ol the plug must be as illustrated.

Note: It an AC power adaptoror a car battery cord not manufactured f i/

CASSETTE-BURDER
SONY;
