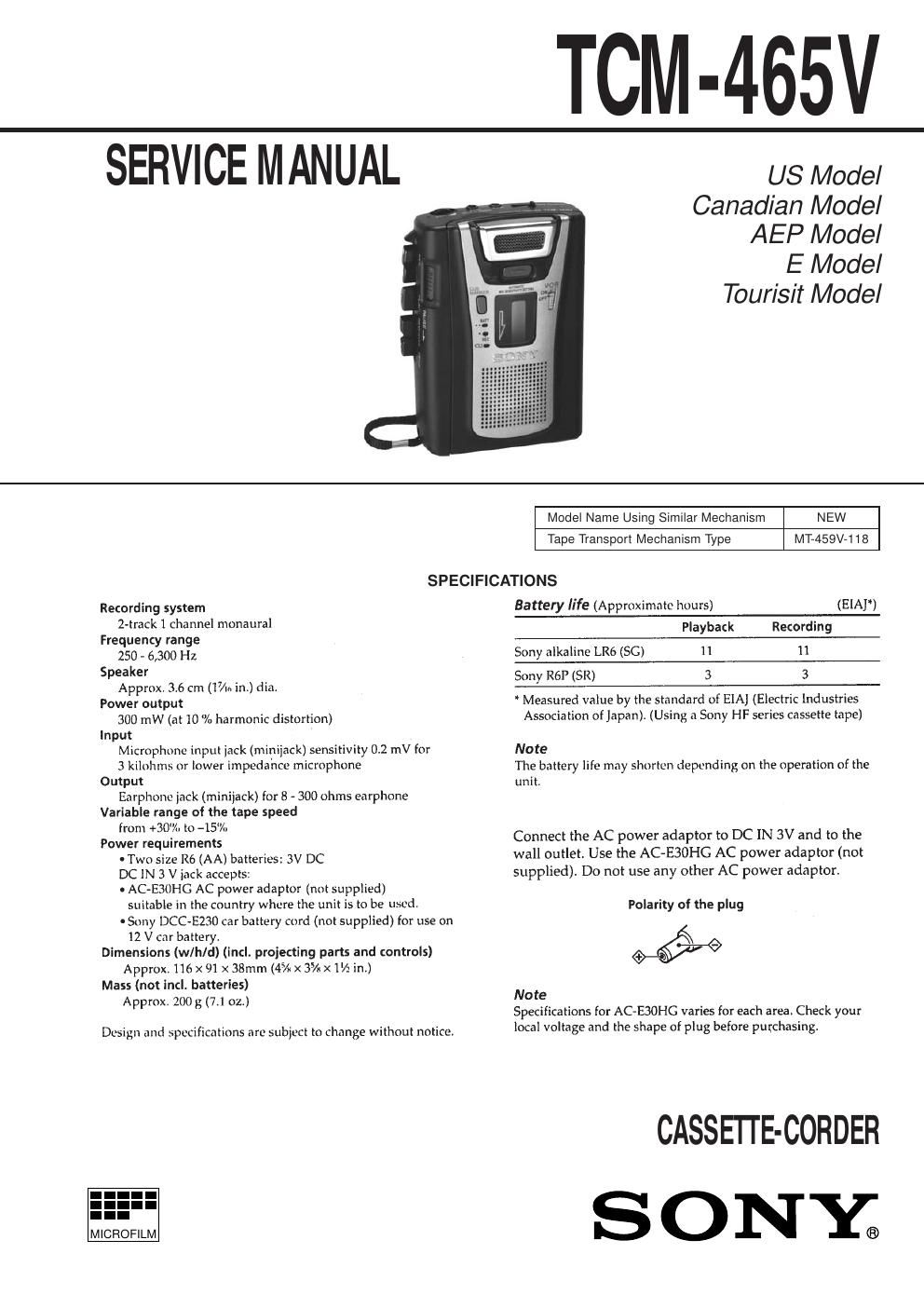

Sony tcm 465 v service manual
This is the 17 pages manual for sony tcm 465 v service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony tcm 465 v service manual (Ocr-read)
Page 1
Ð 2 Ð Flexible Circuit Board Repairing ¥ Keep the temperature of the soldering iron around 270 ûC dur- ing repairing. ¥ Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ¥ Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement ¥ Never reuse a disconnected chip component. ¥ Notice that the minus side of a tantalum capacitor may be dam- aged by heat. SECTION 1 GENERAL TABLE OF CONTENTS 1. GENERAL ................................................................... 2 2. DISASSEMBLY ......................................................... 3 3. MECHANICAL ADJUSTMENTS ....................... 5 4. ELECTRICAL ADJUSTMENTS ......................... 6 5. DIAGRAMS 5-1. Block Diagram ................................................................ 7 5-2. Printed Wiring Boards .................................................... 9 5-3. Schematic Diagram ......................................................... 13 6. EXPLODED VIEWS ................................................ 16 7. ELECTRICAL PARTS LIST ............................... 20 ¥ Location of Controls EAR TAPE COUNTER MICROPHONE VOL rREC pSTOP ( PLAY SPEED CONTROL 0 REW/REVIEW ) FF/CUE PAUSE c POP-UP MIC SWITCH VOR CUE MARKER BATT/REC DC IN 3V MIC
Page 2
Ð 3 Ð CABINET (REAR) , CASSETTE LID SECTION 2 DISASSEMBLY Note: Follow the disassembly procedure in the numerical order given. ¥ This set can be disassembled in the order shown below. SET CABINET (REAR) CASSETTE LID MECHANISM DECK (MT-459V-118)MAIN BOARD BEL T 8 cassette lid 1 three screws (B1.7 ´ 10) 2 screw (IB lock) 3 two claws 3 claw 7 boss 4 cabinet (rear) 3 claw 5 strap 7 boss 9 cassette spring 6 flexible board (CN102)
