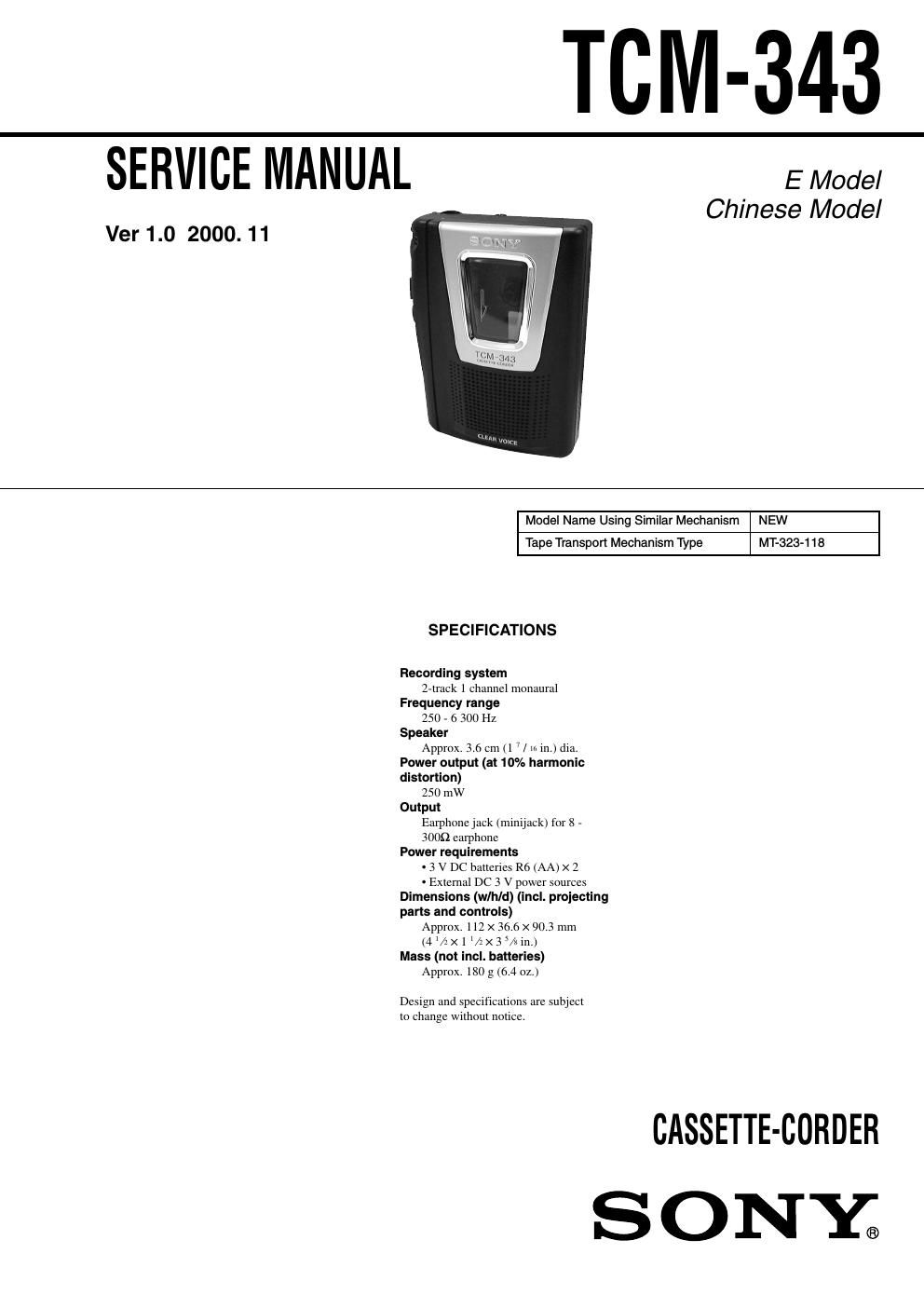

Sony tcm 343 service manual
This is the 15 pages manual for sony tcm 343 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony tcm 343 service manual (Ocr-read)
Page 1
- 2 - Notes on chip component replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing -Keep the temperature of soldering iron around 270˚C during repairing. -Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). -Be careful not to apply force on the conductor when soldering or unsoldering. TABLE OF CONTENTS 1. GENERAL ··········································································2 2. DISASSEMBLY 2-1. Lid Sub Assy, Cassette····················································3 2-2. Main Board, Mechanism Deck·······································3 2-3. Belt··················································································4 2-4. Head, Magnetic, Pinch Roller·····································4 3. MECHANICAL ADJUSTMENT ··································5 4. ELECTRICAL ADJUSTMENT ····································5 5. DIAGRAMS 6-1. IC Block Diagrams·························································6 6-2. Block Diagram································································7 6-3. Schematic Diagram·························································9 6-4. Printed Wiring Board····················································11 6. EXPLODED VIEWS 6-1. Cabinet Section·····························································13 6-2. Mechanism Deck Section-1 (MT-323-118)··················14 6-3. Mechanism Deck Section-2 (MT-323-118)··················15 7. ELECTRICAL PARTS LIST ·······································16 SECTION 1 GENERAL This section is extracted from instruction manual. VOL M FF/CUE x STOP m REW/REVIEW PAUSE . N PLAY EAR z REC x STOP m REW/ REVIEW PAUSE . Built-in mic Micrófono incorporado Microfone incorporado BATT
Page 2
- 3 - SECTION 2 DISASSEMBLY Note :Follow the disassembly procedure in the numerical order given. - The equipment can be removed using the following procedure. 2-1. LID SUB ASSY, CASSETTE 2-2. MAIN BOARD, MECHANISM DECK 4 two cords(SP901) 6 spring, cassett e 5 lid sub assy, cassette four claws claw 3 cabinet (rear) 2 screw (IB LOCK) 1 three screws (B1.7 × 9) 8 mechanism deck 6 main board 4 cord (HRP901) 5 two cords (MIC901) 3 two cords (M901) 1 screw (1.7) 2 screw (M1.4) 7 three screws (IB LOCK) Lid Sub Assy, Cassette Main Board, Mechanism Deck Belt Set Head, Magnetic, Pinch Rolle r
