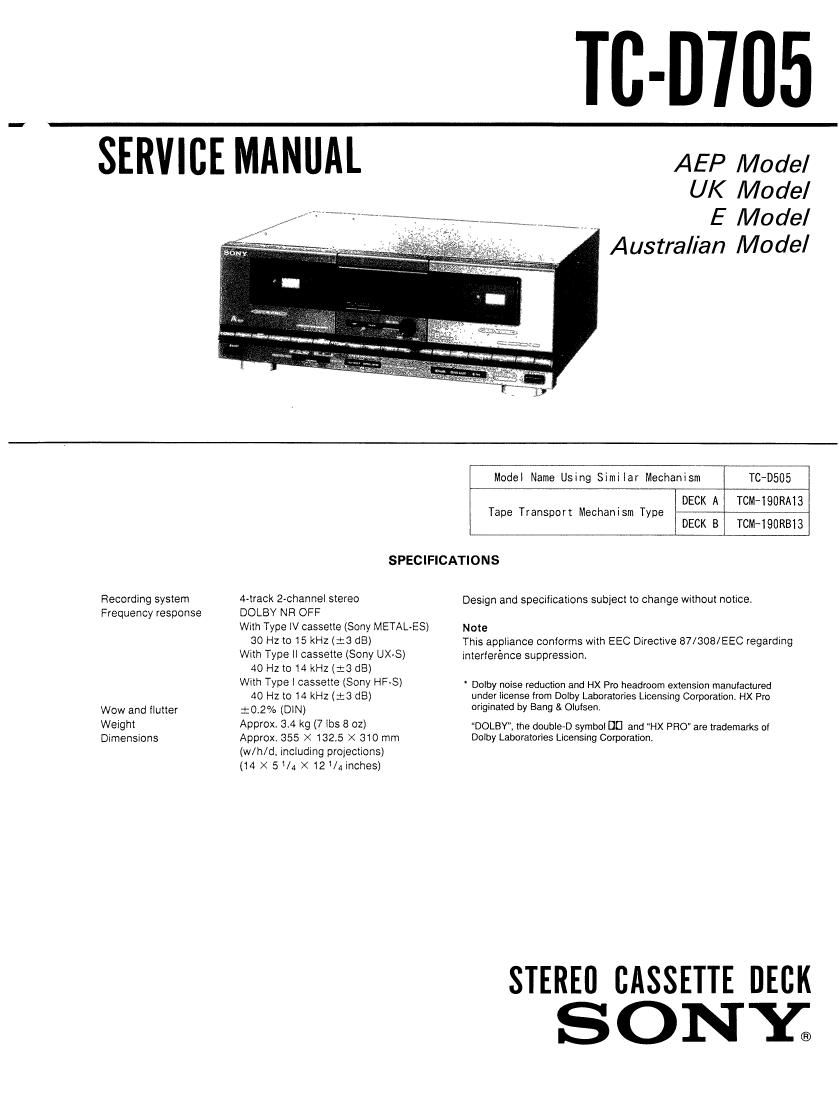

Sony TCD 705 Service Manual

Page 1

Til-0705

SERVICE MANUAL AEP Model

UK Model
E Model
Australian Model

Model Name Using Similar Mechanism TCD505
DECK A TCM-I90RA13
DECK B TCM-IQURBI3

Tape Transport Mechanism Type

SPECIFICATIONS

Recording system 44'3 2-channel stereo Design and specifications subject to change WlIhOUI notice.
Frequency response DOLEIY NR OFF
With Type IV cassette (Sony METAL»ES) Note
30 H210 15 kHz (113 dB) This appliance coniorms with EEC Directive 87/808/EEC regarding
With Type II cassette (Sony UX-S) intenerénce suppression.
40 HZI014 kHz (:3 dB)
Wlth TYDe I cassette (50W HF'S) Doiby noise reduction and HX Pro headroom extension manufactured
40 Hz to 14 kHZ (:3 (18) under license from DoIby Laboratories Licensing Corporation. HX Pro
Wow and flutter :0.2% (DIN) originated by Bang & Oluisen.
Weight Approx 3.4 kg (7 lbs 8 02) DOLBY, the double-D symbol DD and HX PRO" are trademarks 01
Dimensions Approx. 355 X 1325 X 310 mm Dolby Laboratories Licensmg Corporation.

(w/h/d. including protections)
(14 X 5 V4 X 12 V4 Inches)

STEREO CASSETTE DECK
SONY;

Page 2

TC-D705

SAFETY CHECK-OUT (US Model) TABLE OF CONTENTS

After correcting the original service problem, SECTION 1 GENERAL _ . , _ . . . . 3
perform the following safety check before releasing SECTION 2' DISASSEMBLY ,,,,,, _ . . . , . . 4
hesemthewsmme: , , SECTION 3. MECHANICAL ADJUSTMENTS ------- 5
Check the antenna terminals,metal trim,metallized" SECTION 4 ELECTRICAL ADJUSTMENTS , ...... 5
knobs, screws, and all other exposed metal parts for SECTION 5' DIAGRAMS

AC leakage. Check leakage as described below. 54 Printed Wiring Boards

-MainSection--------------- 9
5-2. Schematic Diagram

The AC leakage from any exposed metal part to -Main Section- ' ' ' ' '~ ' ' ' ' ' ' ' ' '13
earth ground and from all exposed metal parts to any 5-3. Chou BAaIdS LocatIon- ' ' ' ' ' ' ' l7
exposed metal part having a return to chassis, must 54- Printed'WIrIng Boards
not exceed 0.5 mA (500 microampers). Leakage -Pane| SGCtIMf ' ' ' ' ' ' ' ' ' ' ' ' '17
current can be measured by any one of three 55- Schematic DIagram

LEAKAGE TEST

-Pane| Section- ----- - - - - - - - '19
methOds' SECTION 6. EXPLODED VIEWS
1. A commercial leakage tester, such as the 54. Chassis Section ........ . . . .22
Simpson 229 or RCA WTA54OA. Follow the 6-2. Front Panel $ection~ . . . . . . . . . 23
manufacturers instructions to use these instru- 6-3. Mechanism Section 1. . . . . . . . . . 24
mentsi 6-4. Mechanism Section 2 ----- - - - - '25
2. A battery-operated AC milliammeter. The Data SECTION 7. ELECTRICAL PARTS LIST - - - - - r - - 26
Precision 245 digital multimeter is suitable for
this job.

3. Measuring the voltage drop across a resistor by
means of a VOM or battery-Operated AC volt~
meter. The limit indication is 075 V, so
analog meters must have an accurate low
voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM that
is suitable. Nearly all battery operated digital
multimeters that have a 2 V AC range are
suitable. (See Fig. A)

To Exposed Metal
Part: on Set

AC
0.15m: gum / voltmeter
(0.75w

' SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED 8V MARK A 0R DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS

? Earth Ground AND IN THE PARTS LIST ARE CRITICAL To SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
Fig. A. UsinganAC voltmeter to checkAC/eakage. soNv PARTS WHOSE PART NUMBERS APPEAR As

SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
