Extracted text from Sony TCD 607 Service Manual (Ocr-read)

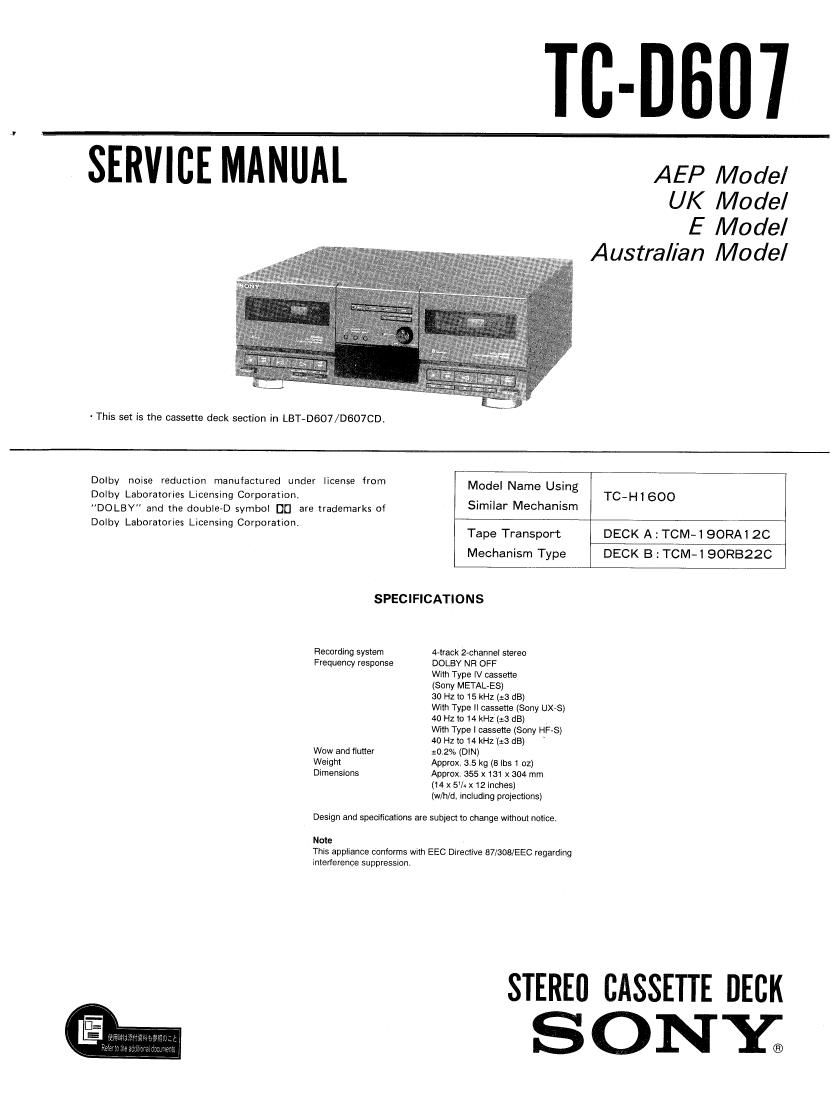

Page 1
TC-DBUT
SERVICE MANUAL AEP Model
UK Model
E Model
Australian Model
' This set is the cassette deck section in LBT-D607/D607CD.
Dolby noise reduction manufactured under license from Model Name Using
Dolby Laboratories Licensing Corporation. ~ . TC-HT 600
DOLBY and the double-D symbol [m are trademarks of $ImI|ar Mechanism
Dolby Laboratories Licensing Corporation.
Tape Transport DECK A : TCM-l 90RA1 20
Mechanism Type DECK B : TCM-l SORBZZC
SPECIFICATIONS
Recording system 4-track 2-channel stereo
Frequency response DOLBV NFl OFF
With Type IV cassette
(Sony METAL-ES)
30 HZl015 kHz (:3 dB)
Wllh Type ll cassette (Sony UX-S]
40 Hz to 14 kHz (23 (15)
With Type | cassette (Sony HF-S)
40 Hz to 14 kHz (23 £13) I
Wow and llutter 20.2% (DIN)
Weight Approx. 3.5 kg (8 lbs 1 02)
Dimensions Approx. 555 x 131 x 304 mm
(14 x 5/4 x 12 inches)
(w/h/d, including projections)
Design and specifications are subject to change without notice.
Note
This appliance conforms with EEC Directive 87/308/EEC regarding
interference suppression.
STEREl] CASSETTE DECK
ONY;
Page 2
TC-D607
TABLE OF CONTENTS
M M Egg
SECTION 1 GENERAL ................................................ 3
SECTloN 2. DISASSEMBLV ........................................... 4
SECTION 3. MECHANICAL ADJUSTMENTS ------------------------ 6
SECTION 4. ELECTRICAL ADJUSTMENTS -------------------------- 6
SECTION 5. DIAGRAMS
5-]. Circuit Boards Location -- ......... 10
5-1 Semiconductor Lead Layouts , II
5-3, Printed Wiring Boards ~ Main Section - ------------ 12
5-4. Schematic Diagrams - Main Section 7 --------------- 17
5-5. Print/ed Wiring Boards - Panel Section - --------------- 21
5-6. Schematic Diagrams * Panel Section - --------------- 23
SECTION 6. EXPLODED VIEWS
6.]. OVCI'ZH SCCliOH ................................................ 25
5.; From pane] Section .......................................... 26
6-3. Mechanism-I Section ......... 27
6-4. Mechanism-2 Section . 23
SECTION 7. ELECTRICAL PARTS LIST ----------------------------- 29
