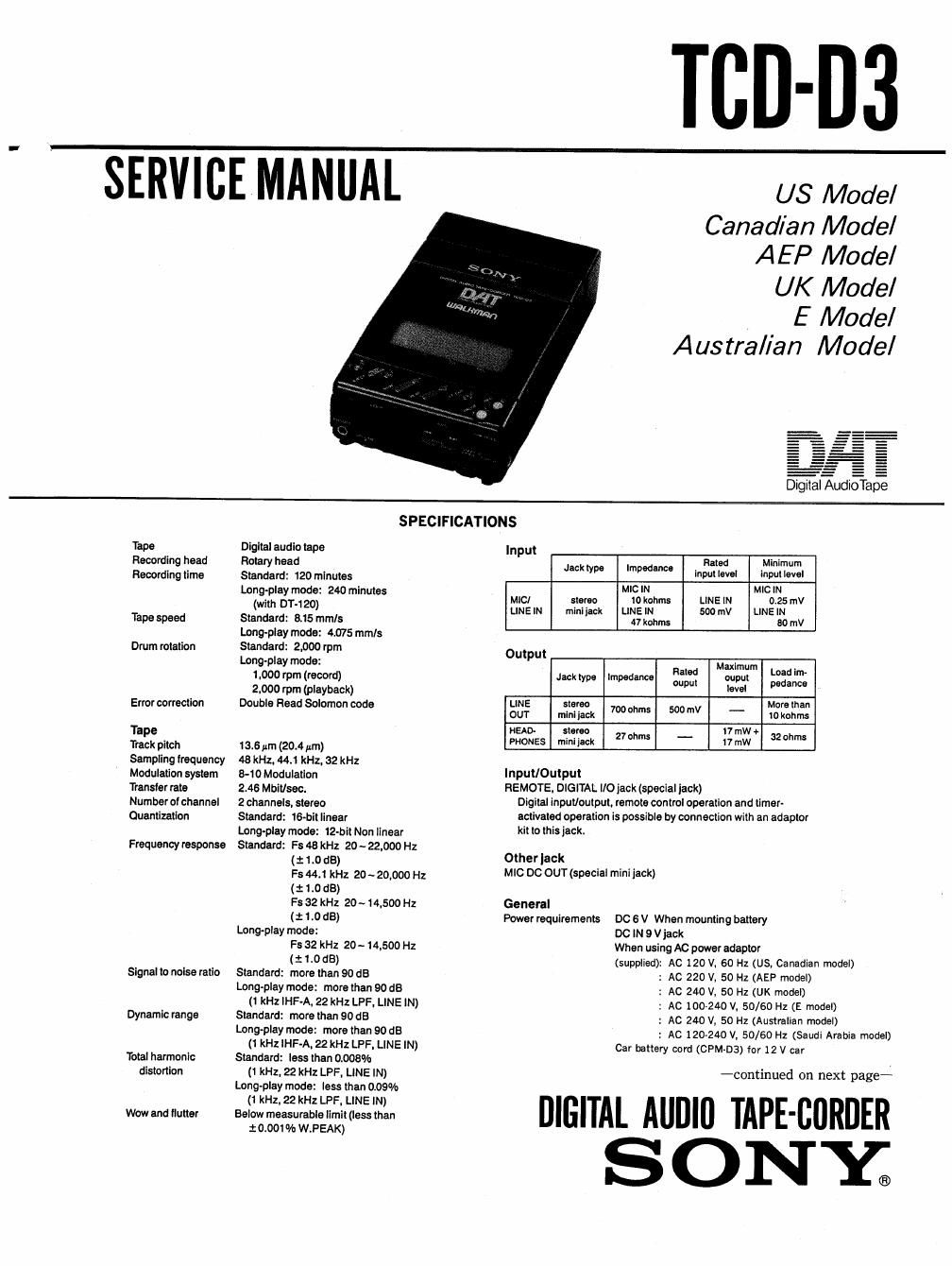

Page 1

TCD-D3

SERVIBEMANUAI. us Model

Canadian Model
AE P Model

UK Model

, E Model
Australian Model

SPECIFICATIONS
Tape Digital audio tape Input R |
Recording head Rotary head _ Bled _M "lmum
Recording time Standard: 120 minutes mk m firms "9 W" Mr; V
Long-play mode: 240 minutes MICI stoma 10 kahuna LINE IN 0.25 mV
(wnh DH) LINEIN mlnllack LINE IN 500 mV LINE lN
Tape speed Standard: 8.15 mmls 47 kohm: 50 mV
Long-play mode: 4.075 mmls
Drum relation Standard: 2,000 rpm Output
Long-play mode: Hated mm Load In»
1.000 rpm (record) Jack Ipr Impedance WWI oupul pedance
2.000 rpm (playback) '9 M h
are an
Error correction Double Read Solomon code 3315' «3:324; 700 onms 500 my _ w koLms
Ta 5 19". 27 ohms - 7 "W * 32 ohms
Traglfpitch 13.6um (20.4 N) PHONES mini jack 17 mW
Sampling frequency éBkHz, 441 kHz, 32 kHz
Modulation system 5-10 Modulation Input/Output
Transler mg; 245 Mbillsec_ REMOTE, DIGITAL "0 jack (special lack)
Number otchannel 2 channels, safao Digital input/output. remote control operation and timer-
Quanumuon Standard: 54, linear activated operation is possible by connection with an adaptor
Long-play mode: 12-bit Non linear kiilttlhisiil<=k~
Frequency response Standard: Fe 48 kHz 20 - 22,000 Hz
(11.0dB) Other lack
F5 44.1 kHz 20- 20,000 Hz MIC DC OUT (special mini jack)
(1 1 ,0 dB)
Fs 32 kHz 20 - 14,500 Hz General
(2 1.0 (18) Power requirements DC 6 V When mounting battery
Long-play mode: DO IN 9 V jack
F: 32 kHz 20 - 14,500 Hz When using Ac power adaptor
(21.0d3) (supplied): AC 120 V, 60 Hz (US, Canadian model)
Signal to noise ratio Standard: more than 90 dB : AC 220 v, 50 Hz (AEP model)
Long-play mode: more than 90 d8 : AC 240 V, 50 Hz (UK model)
(1 kHz lHF-A, 22 kHz LPF, LINE IN) : AC 100-240 V. 50/60 Hz (E model)
Dynamic range Standard: more than 90 dB : AC 240 V, 50 Hz (Australian model)
Long-playmnde: more than 9MB : Ac 120.240 V, 50/60 Hz (Saudi Arabia model)
(1 kHleF-A, flkHz LPF, LINE IN) Car battery cord (CPM-DEI) for 12 V oar
Total harmonic Standard: less than 0.008% .
distortion (1 kHz. 22 kHz LPF. LINE IN) -continued on next page-

Long-play mode: less than (109%

(1 kHz. 22 kHz LPF, LINE IN)
Wow and flutter Below measurable limit (less than '
2 0.001% W.PEAK)

Page 2

TCD-D3

Battery lite Approx. 2 hours (Consecutive recording
or playback with lull-charged BP-Ds
when turning off the Illumination for
display window)

3.6 W

Approx. 85.2 x 40 x120.1 mm

(3% x1% x 4% in.)

(wlhld) not incl. the battery pack
incl. projecting pans and
controls

Approx. 85.2 x 40 x1459 mm

(33/. x1% x 5% In.)

(wlhld) incl. the battery pack
and projecting parts and
controls

Approx. 420 g (15 oz)

not incl. battery pack

Approx. 630 g (1 lb 6.3 oz)

incl. battery pack

Power consumption
Dimensions

Weight

Supplied accessories
Ac power adaptor/battery charger ACF»D3U (1) (US, Canadian Model)
AC power adaptor/battery charger ACP~D30 (1) (AEP. UK. Australian model)
Ac power adaptor/battery charger ASP-033 (i) (E model)
Ac power adaptor/battery charger ACPD33 (1) (Saudi Arabia model)
Adaptor conversion 2P (1) (E model)
Rechargeable battery BP-Da (1)
Carrying case (1)
Digital cable (special plug-2 optical plugs) POC-DA12 (1)
Audio connecting cords (2) (stereo-mini plug-2 phono plugs,
stereo tor line inputs and outputs)
DAT tape DT~60 (1)

Design and specifications subject to change without notice.

NOTE ON THE AC POWER ADAPTOR
Use only the supplied AC power adaptor

Never use any other adaptors manufactured by Sony because the
polarity of the supplied adaptor is opposite of conventional adaptors.

%

Polarity ot the plug

FEATU R ES

Application of the serial copy management system
This unit utilizes a serial copy management system
which permits digital-to-digilal recording for one
genration. You can record CD sound or other digital
lormats through a digital-to-digital connection.

Three sampling trequencles

Recording/playback can be done with three sampling

frequencies 48 kHz. 44.1 kHz and 32 kHz.

48 kHz: For analog input signals in a standard mode
and 48 kHz, digital audio signals.

44.1 kHz: Fordigital input of compact disc and pre-

recorded DAT tape.

32 kHz: For analog input signals in a long-play mode

and 32 kHz digital audio signals.

Capability for recording an analog signal source
MlCILlNE IN jack on the unit in addition to digital
input/output allows recording of an analog signal source
from a microphone or line output signal from stereo
speaker.

Excellent sound quality
Excellent sound quality through a built-in aver sampling
digital filter.

Miniaturlzed digital audio tape recorder
The newly-developed miniaturized mechanism and ICs
make possible this very small digital audio tape recorder.

Long play mode

This unit can operate in a long play mode. Analog input
signals or 32 kHz digital signals can be recorded or .
played back for up to four consecutive hours when the
DT-120 DAT cassette tape is used. The sampling
frequency will be 32 kHz in the long play mode.

Post edit recording at start ID and program numbers
You can record or rewrite the start l0 and program
numbers alter the audio signal recording has been
completed.

Locating the beginning of the selection at high
speed.

Liquid crystal display with a back-Ilght system.
Approximately two-hour continuous recording and
playing is possible with the supplied rechargeable
battery.

AC power adaptor which can be used during
charging ls supplied.
