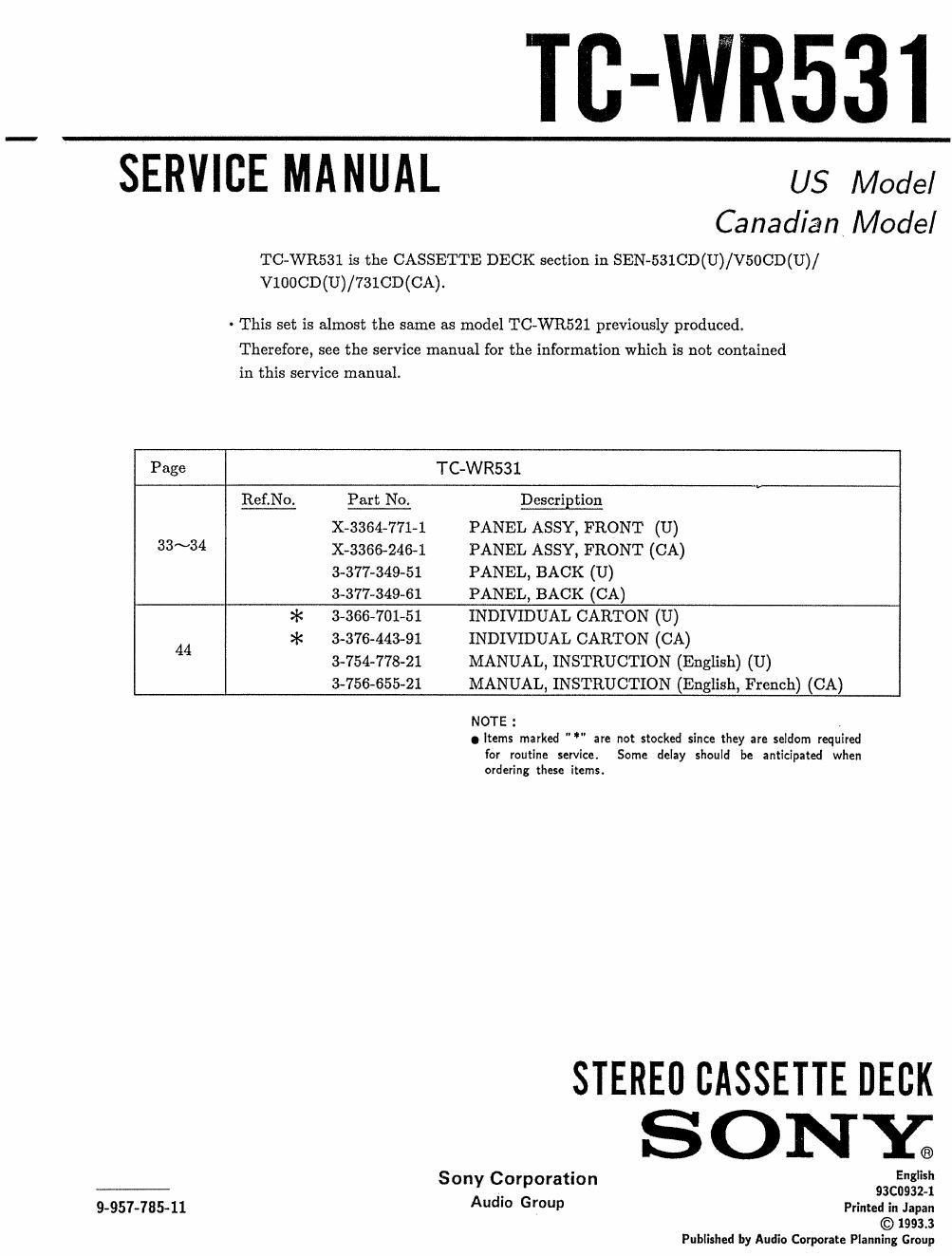

Page 1
TC-WR531
SERVICE MANUAL US Model
Canadian, Model
TC-WR531 is the CASSETTE DECK section in SEN-531CD(U)/V5OCD(U)/
V1000D(U)/7310D(CA).
' This set is almost the same as model TC»WR521 previously produced.
Therefore, see the service manual for the information which is not contained
in this service manual.
Page TC-WR531
Ref.No. Part No. Descrigtion
X-3364~771-1 PANEL ASSY, FRONT (U)
33~34 X-3366-246-1 PANEL ASSY, FRONT (CA)
3-377-349-51 PANEL, BACK (U)
3-377-349-61 PANEL, BACK (CA)
* 3-366-701-51 INDIVIDUAL CARTON (U)
44 * 3-376-443-91 INDIVIDUAL CARTON (CA)
3-754-778-21 MANUAL, INSTRUCTION (English) (U)
3-756-655-21 MANUAL, INSTRUCTION (English, French) (CA)
NOTE :
0 items marked "" are not stocked since they are seldom required
for routine service. Some delay should be anticipated when
ordering these items.
S O N E
' English
Sony Corporation 93c0932-1
9-957-785-11 Aud'o 6'0"!) Printed in Japan
© 1993.3
Published by Audio Corporate Planning Group
