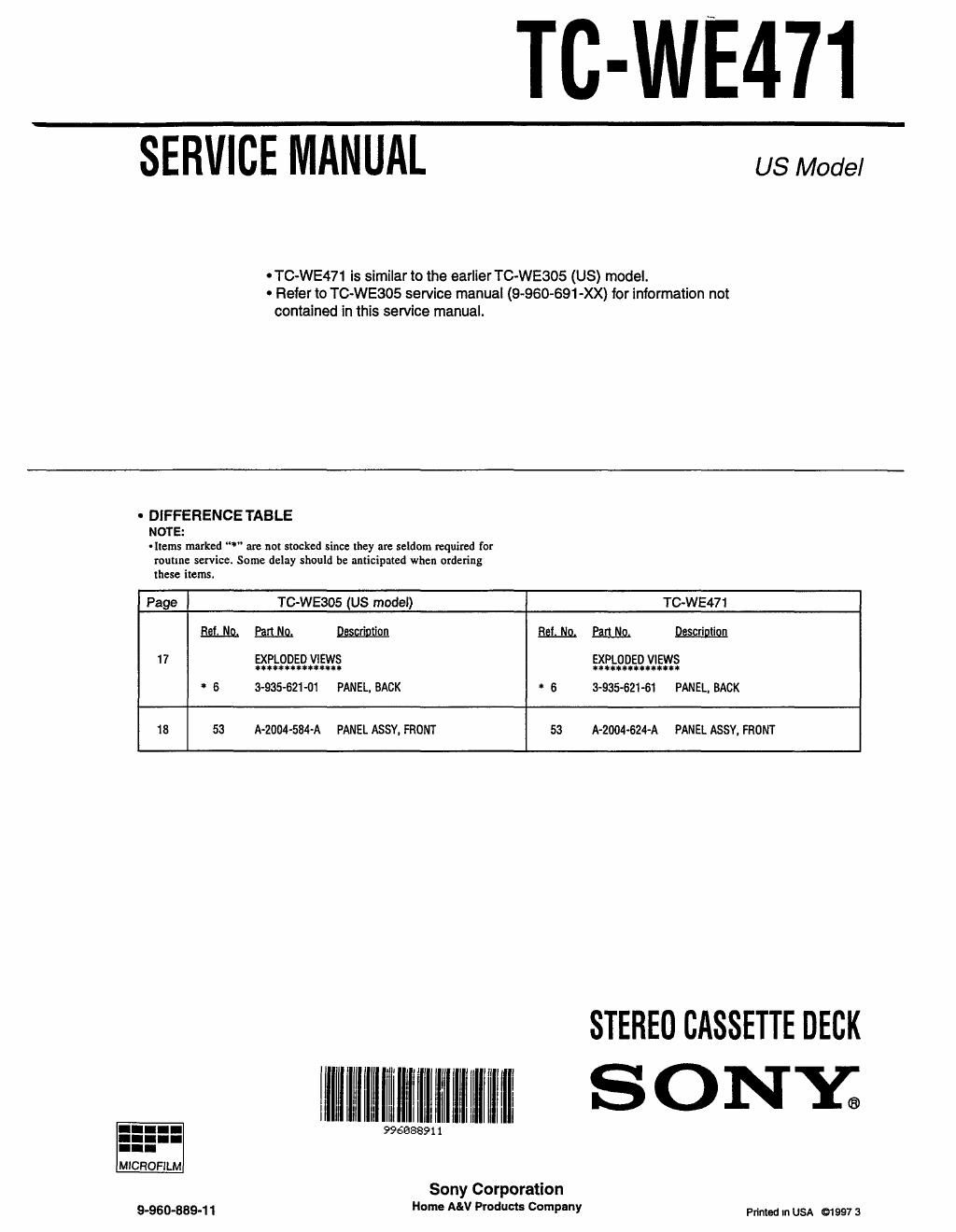

TC-WE471
SERVICE MANUAL us Model
-TC-WE471 is similar to the earlier TC¢WE305 (US) model.
- Refer to TC-WE305 service manual (9-960-691»XX) for information not
contained in this service manual.
' DIFFERENCE TABLE
NOTE:
-Items marked ""' are not stocked since 1hey are seldom lequired for
rounne service Some delay should be anticipated when ordering
these items.
Page TC-WE305 (US model) TC-WE471
M52. Baum. mm mm. Baum. Mon
17 EXPLDDED VIEWS EXPLODED VIEWS
untuuun» uunxuuun
6 3-935-621-01 PANEL, BACK 6 3935v621-61 PANEL, BACK
1B 53 A-2004-584-A PANEL ASSV. FRONT 53 A-2004-624-A PANEL ASSY, FRONT
STEREO CASSETTE DECK
Ullllllllllilflllfl'llll llllfllilmilllflilHll! S ONYQ
99688891 1
Sony Corporation
9-960-839-11 "°"e V "Mum °°"PV Printed m USA 01997 a
