Sony tc w 421 service manual
This is the 19 pages manual for sony tc w 421 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony tc w 421 service manual (Ocr-read)

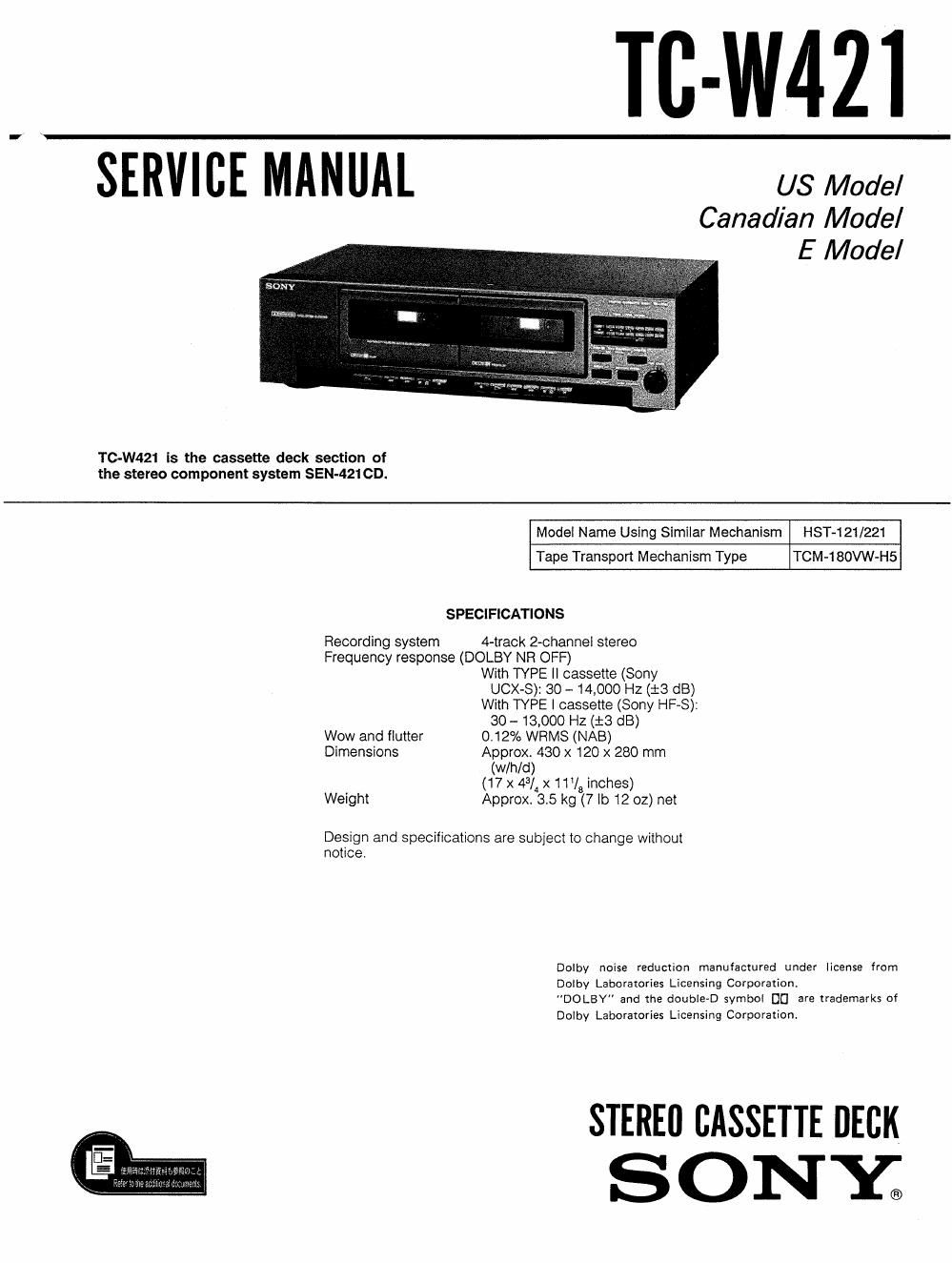

Page 1
TC-W4ZI
SERVICE MANUAL us Model
Canadian Model
E Model
TGW421 is the cassette deck section of
the stereo component system SEN-421 CD.
Model Name Using Similar Mechanism HST-121/221
Tape Transport Mechanism Type TCM<180VW~H5
SPECIFICATIONS
Recording system 4-track 2-channel stereo
Frequency response (DOLBY NR OFF)
With TYPE || cassette (Sony
UCX-S): 30 ~14,000 Hz (i3 dB)
With TYPE l cassette (Sony HRS):
30 - 13,000 Hz (:3 dB)
Wow and flutter 0.12% WRMS (NAB)
Dimensions Approx. 430 x 120 x 280 mm
(w/h/d)
(17 x 43/4 x 11/8 inches)
Weight Approx 3.5 kg (7 lb 12 02) net
Design and specifications are subject to change without
notice.
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporationi
"DOLBY" and the double-D symbol D0 are trademarks of
Dolby Laboratories Licensing Corporation.
STEREII CASSETTE DECK
SONY;
