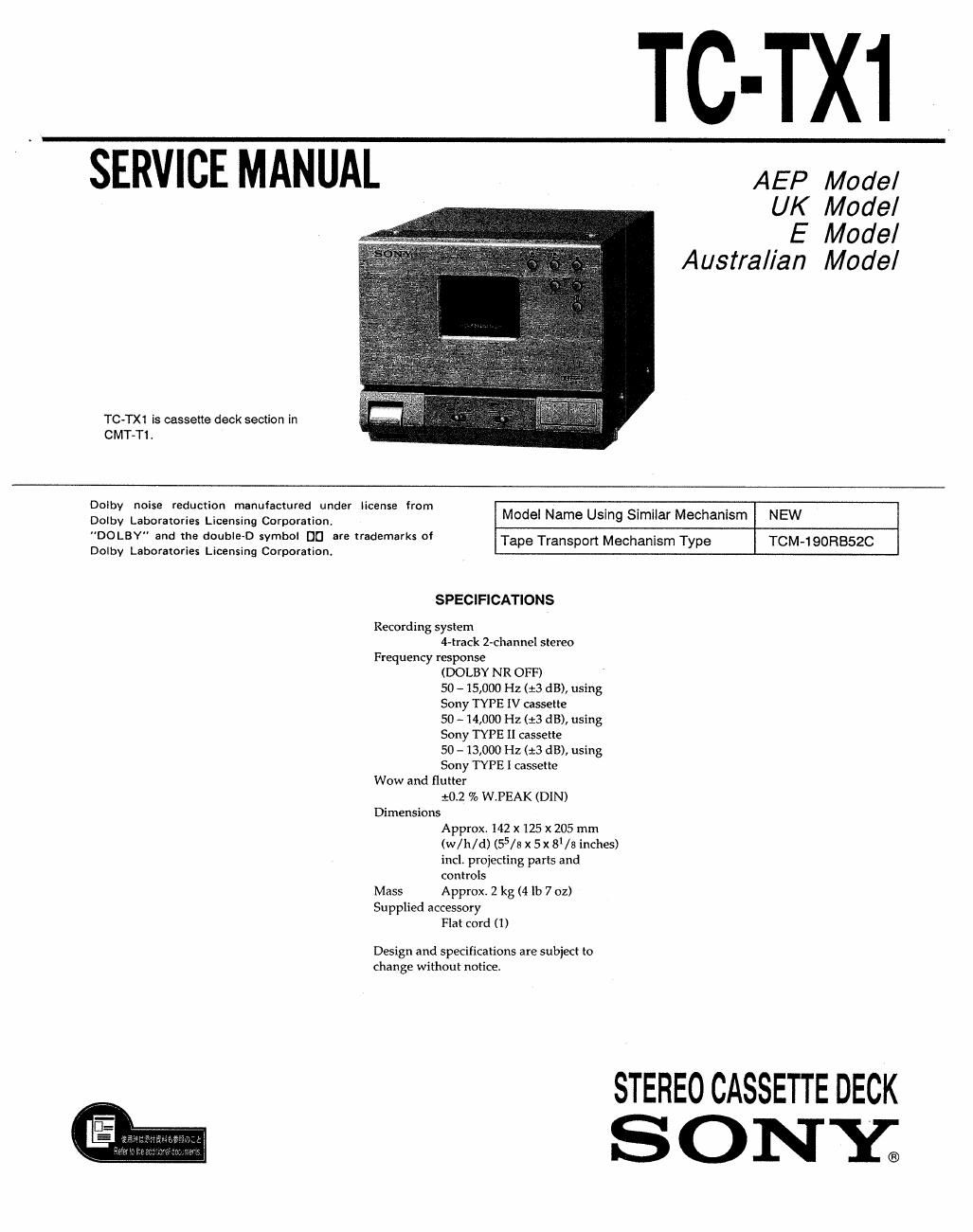

TC-IXI
SERVICE MANUAL AEP Model
UK Model
E Model
Austral/an Model
TC»TX1 is cassette deck section in
CMT-T1 .
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporations
DO LBY" and the double-D symbol DI] are trademarks 0' Tape Transport Mechanism Type TCM-190RBSZC
Dolby Laboratories Licensing Corporation.
Model Name Using Similar Mechanism NEW
SPECIFICATIONS
Recording system
4-track Zechannel stereo
Frequency response
(DOLBY N R OFF)
50 - 15,000 Hz (:3 dB), using
Sony TYPE IV cassette
50 -- 14,000 Hz (:3 dB), using
Sony TYPE [I cassette
50 - 13,000 Hz (:3 dB), using
Sony TYPE I cassette
Wow and flutter
:02 % WIPEAK (DIN)
Dimensions
Approx 142 x125 x 205 mm
(w/h/d) (55/3 x 5x 81/8 inches)
incl. projecting parls and
controls
Mass Approx. 2 kg (4 lb 7 oz)
Supplied accessory
Flat cord ( 1)
Design and specifications are subject to
change without notice
STEREO CASSETTE DECK
S 0 NY?
