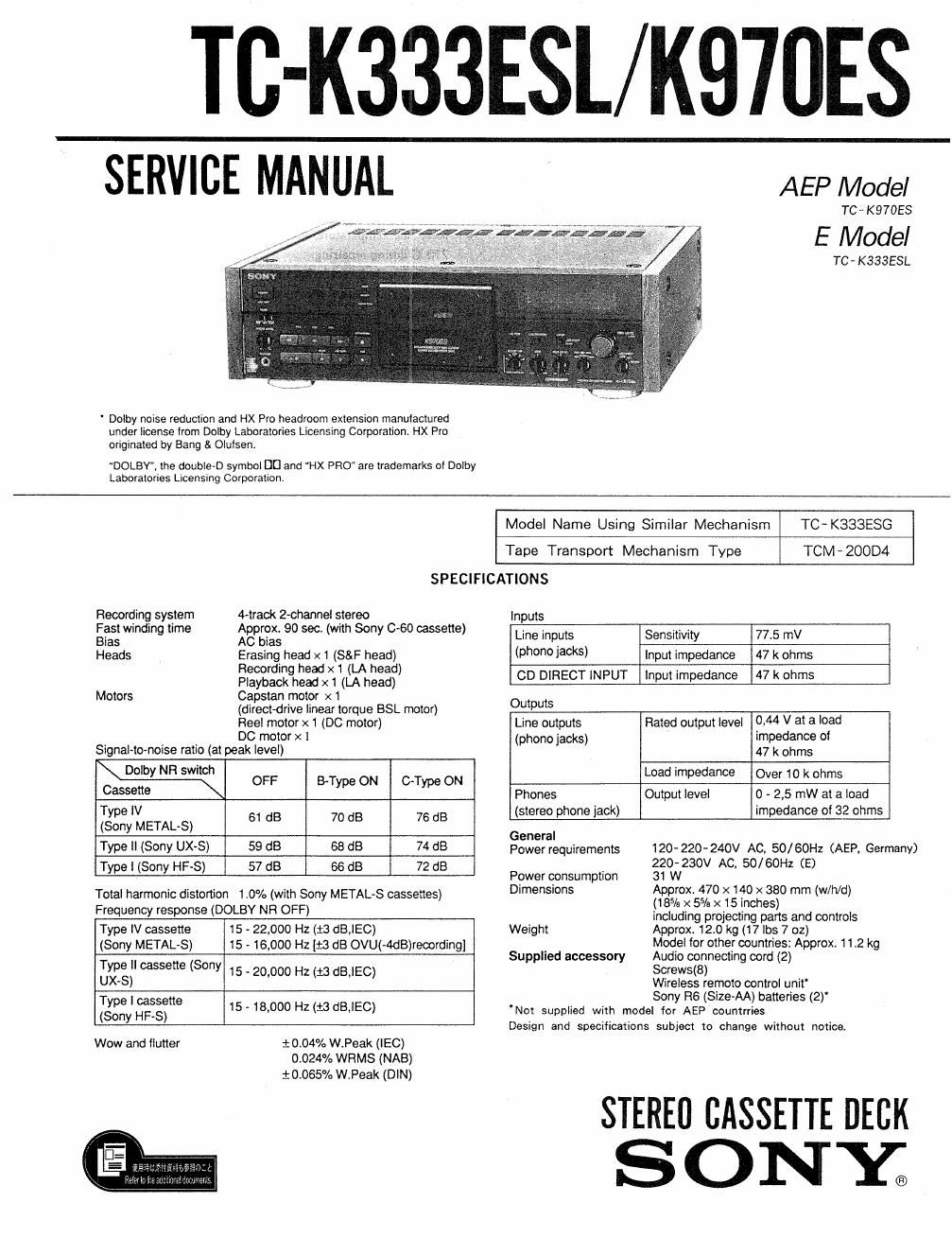

Page 1

TC-K333ESL/K970ES

SERVICE MANUAL

AEP Model

TC , K 97053
TC- K333ESL
' Dolby noise reduction and HX Pro headroom extension manulactured
under license lrom Dolby Laboratories Licensing Corporation. HX Pro
originated by Bang 8. Olutsen.
DOLBY, the double-D symbol DI] and "HX PRO are trademarks or Dolby
Laooratories Licenslng Corporation,
Model Name Using Similar Mechanism TC- K333ESG
Tape Transport Mechanism Type TCM - 200D4

Recording system
Fast winding time
Bias

Heads

Motors

SPECIFICATIONS

4-traok 2»channel stereo

Approx. 90 sec. (with Sony 060 cassette)
AC bias

Erasing head X 1 (S&F head)

Recording head x 1 (LA head)

Playback head x 1 (LA head)

Capstan motor x 1

(directorive linear torque BSL motor)

Reel motor x 1 (DC motor)

DC motor x 1
Signal-to-noise ratio (at peak level)
Dolby NR switch
Cas-sate- OFF BType ON C-Type ON
25:32:,13 AL 8) 61 dB 70 dB 76 dB
Type II (Sony UX-S) 59 dB 68 dB 74 dB
Type I (Sony HF-S) 57 dB 66 dB 72 dB

Total harmonic distortion 1.0% (with Sony METAL-S cassettes)
Frequency response (DOLBY NR OFF)

Type IV cassette
(Sony METALS)

15 - 22,000 Hz (:3 dB,IEC)
15 - 16,000 HZ {1'3 dB OVU(-4dB)reoording]

Type II cassette (Sony
UX-S)

15 - 20,000 Hz (13 dB,IEC)

Type I cassette
(Sony HF-S)

15 - 18,000 Hz (:3 dBJEC)

Wow and flutter

mom W.Peak ("50)
0402479 WRMS (NAB)
mossy, W.Peak (DIN)

Inputs

Line inputs Sensitivity 77.5 mV
(phono jacks) Input impedance 47 k ohms
CD DIRECT INPUT Input impedance 47 k ohms

Outputs

Line outputs
(phono jacks)

0.44 V at a load
impedance of
47 k ohms

Rated output level

Load impedance Over 10 k ohms

Phones
(stereo phone jack)

0 - 2,5 mW at a load
impedance of 32 ohms

Output level

General
Power requirements

Power consumption
Dimensions

Weight

Supplied accessory

120- 220- 240V AC. 50/ 60H: (AEP. Germany)
220- 230V AC, 50/ GOHz (E)

31 W

Approx 470 x 140 x 380 mm (w/h/d)
(18% X 55/3 x 15 inches)

including projecting pans and controls
Approx. 120 kg (17 lbs 7 02)

Model for other countries: Approx. 112 kg
Audio connecting cord (2)

Screws(8)

Wireless remote control unit

Sony R6 (Size-AA) batteries (2)'

Not supplied with model for AEP countrries
Design and specifications subject to change without notice

STEREO CASSETTE DECK
SONY;
